MFT-HP Hanger rail 22.5

Configurator
Technical Data
Documents
Features & Applications
Related Products
Profile MFT-HP 22,5x63,5
Profile MFT-HP 22,5x63,5 pf
Profile MFT-HP 22,5x63,5 pf
Profile MFT-HP 22,5x63,5 pf
Profile MFT-HP 22,5x63,5 pf
Profile MFT-HP 22,5x63,5 pf
Profile MFT-HP 22,5x63,5
Profile MFT-HP 22,5x63,5 pf

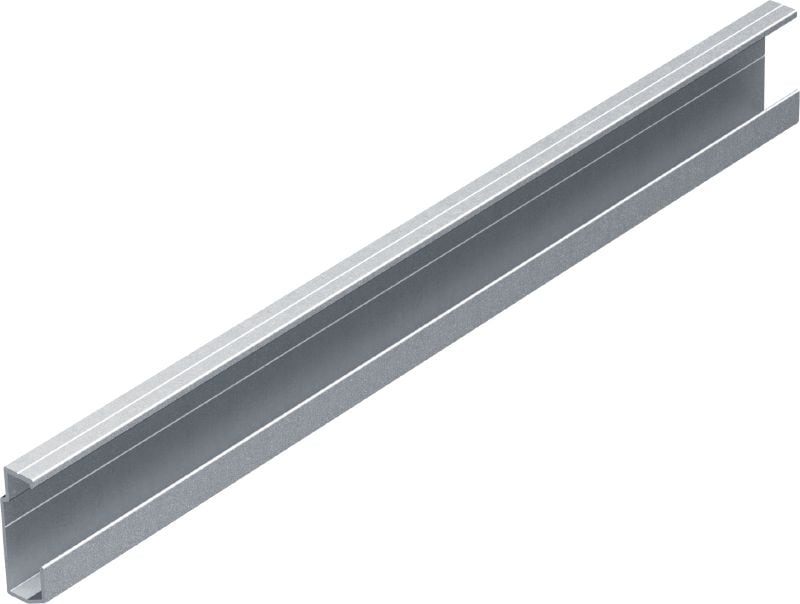

Hanger rail for the concealed attachment of façade panels using hangers

  • Height: 63.5 mm
  • Width: 22.5 mm
  • Length: 6000 mm

Choose options

Height
  • 63.5 mm
Width
  • 22.5 mm
Pack size
  • 6 m
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $390.00

Technical Data

Details
Technical illustrations
Height
63.5 mm
Width
22.5 mm
Length
6000 mm
Material composition
Aluminium EN AW-6063 T66

Documents

pdf  EPD_MFT Alu facade profiles, English [ 784.5 KB ]

Features & Applications

Features

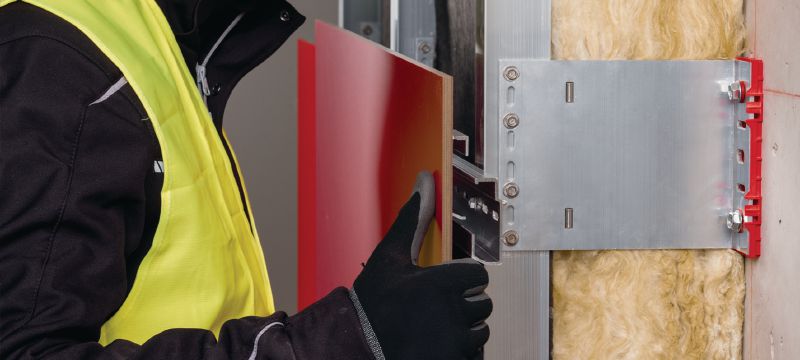

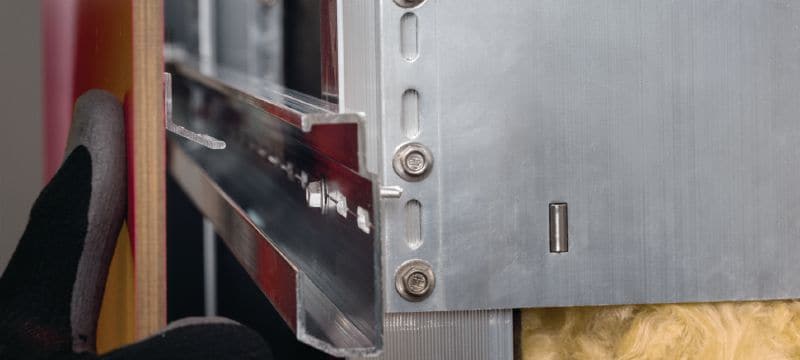

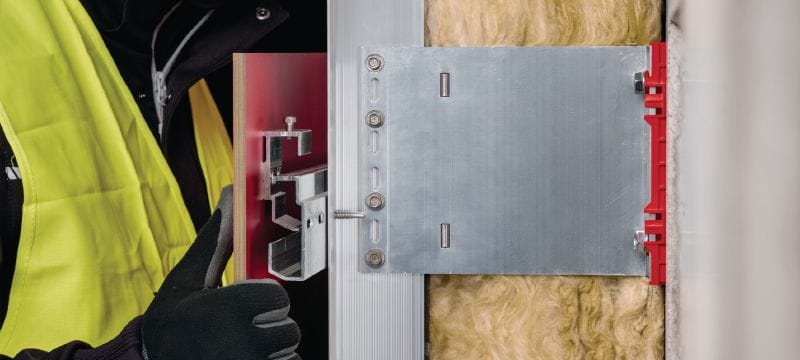

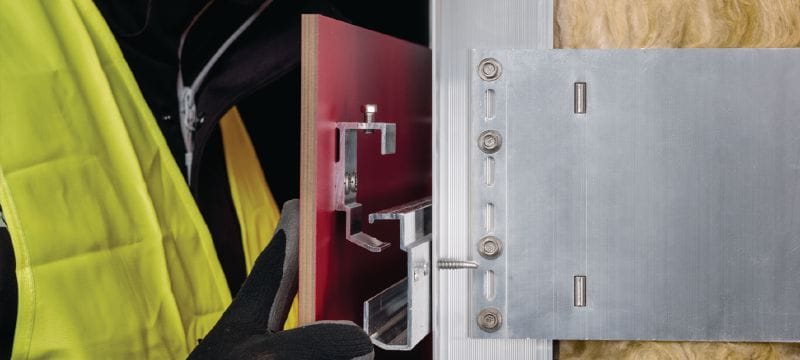

  • Faster, simpler cladding installation – Improved hanger rail design for hassle-free panel installation
  • Single panel removal – these redesigned hangers are not only easier to install, but also allow you to remove single cladding panels (when fastened with fixing pins)
  • All-weather installation – unlike adhesives, you can work with this system in virtually all weather conditions
  • Engineering support available – contact your local Hilti team for project-specific advice on optimizing the ventilated façade substructure

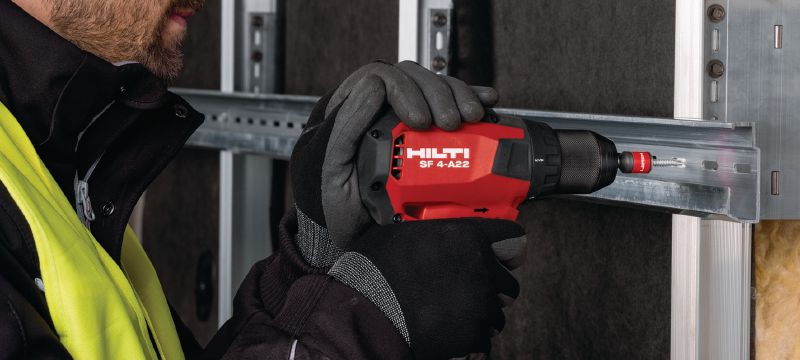

  • Total system solution – from Hilti you get optimized tools, consumables and services for every step of ventilated façade installation

Applications

  • Concealed fastening of façade cladding using mechanical fasteners for rear fixing

For approval or certificate information, please see individual items.
