HIT-Glass balustrade installation kit

Configurator
Technical Data
Documents
Features & Applications
Related Products

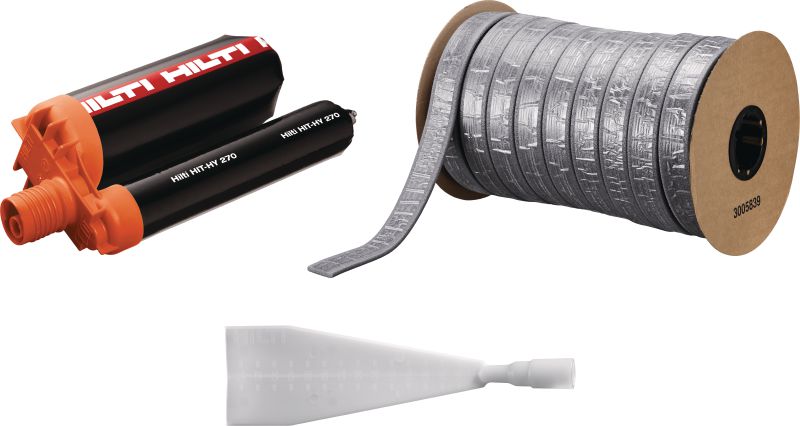

Combination still life image of HY 270, Roll and Spatula
Still life picture HIT Glass flyer

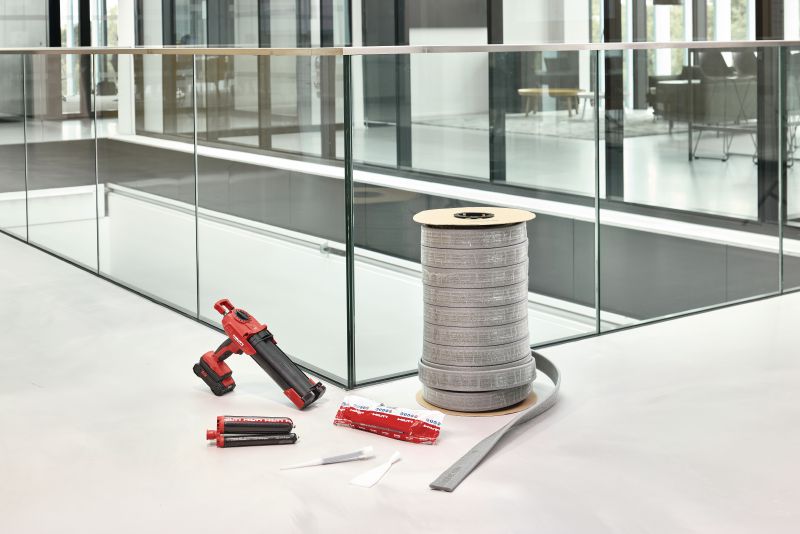

HIT-Glass system featuring glass-handrails in the background.

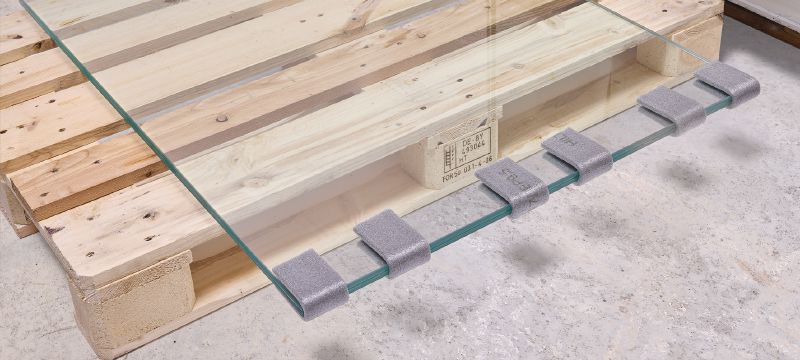

Glass balustrade installation with HIT Glass. Cropped application image of glass pane with EP foam positioning aids in the foreground with fully-installed glass balustrade in the background.

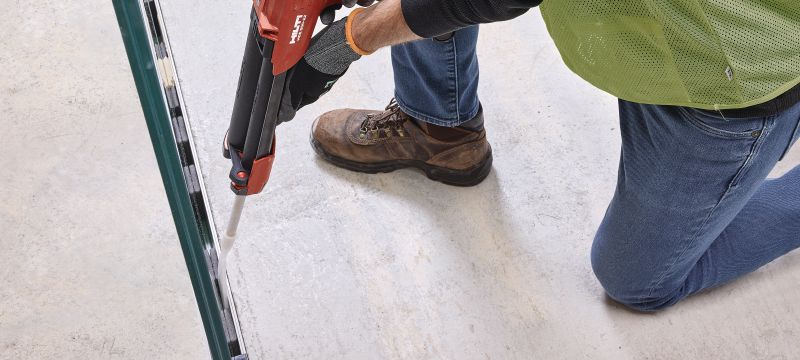

Glass balustrade installation with HIT Glass. Cropped application image of side view of glass handrail installation with HIT-Glass system.

Installation kit for installing glass balustrades and handrails, including HIT-HY 270 mortar, EP foam positioning aids and HIT-RE 60-glass mixer attachments

  • Storage and transportation temperature range: 41 - 77 °F

Customers also searched for Glazing, Balustrade, Handrail, Nozzle or Foam Spool.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $4,259.00

Technical Data

Storage and transportation temperature range
41 - 77 °F

Documents

Technical information
Documentation
Material safety datasheet
Operating Instruction
Sustainability Documentation
pdf PDS_Hilti HIT-GLASS, English [ 755.6 KB ]

Features & Applications

Features

  • Faster glass pane installations – install glass-balustrades and handrails up to 2.5 times faster than traditional installation methods thanks to an innovative adhesive installation system
  • Enhanced safety – HIT-RE 60 Glass mixer attachment enables mortar injection from the inner side of the glass pane, eliminating the risk associated with working on the exposed side panels at height
  • Simplified maintenance – the HIT-HY 270 mortar does not bond to the glass, allowing you to easily remove and replace panes as needed
  • Do more with less – the HIT-Glass system enables design optimization, helping to reduce overall mortar consumption and material costs
  • User friendly system for glass balustrade installation - automatic mixing of the components helps to ensure high quality mortar and reliable installations every time

Applications

  • Ideal for serial installation of glass panels into metal shoes
  • Fastening glass panes for internal and external glass balustrades and handrails
  • Fastening glass panes on curved and vertically inclined surfaces (up to 35°) in glass balustrade applications

For approval or certificate information, please see individual items.
