MFT-VSI S 7.6 Brackets

MFT-VSI 60 S 7.6

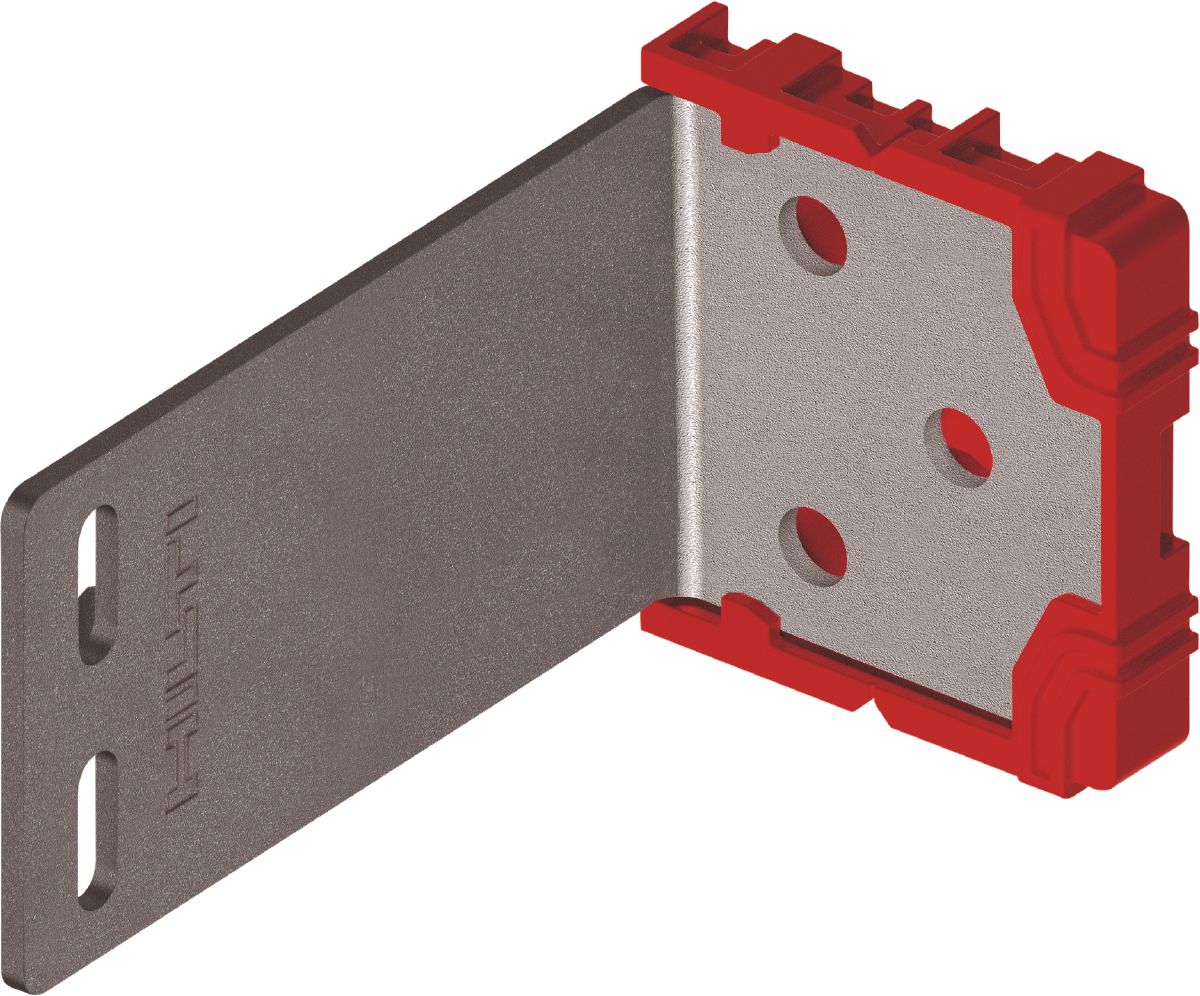

3D still life image of the MFT-VSI 7.6 S Brackets
Application image of the MFT-VSI 7.6 S Brackets
Application image of the MFT-VSI 7.6 S Brackets
3D line drawing of the MFT-VSI 7.6 small bracket.

Small stainless steel bracket with pre-mounted isolator for installing ventilated façades on buildings with high thermal efficiency and fire compliance requirements

  • Length: 60 mm
  • Hole diameter - D: 7.6 mm
  • Material composition: Stainless steel, 1.4162 - EN 10088, S32102/S32101 - ASTM A959/UNS

Choose options

Length
  • 60 mm
  • 80 mm
  • 120 mm
  • 140 mm
  • 160 mm
  • 180 mm
  • 200 mm
  • 220 mm
  • 240 mm
  • 260 mm
  • 280 mm
  • 300 mm
Hole diameter - D
  • 7.6 mm
Pack size
  • 15 pc
  • 25 pc
 Product options
Quantity
Box
Total Pieces
25
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$10.00
$10.00
/
1 Each

Technical Data

Length
60 mm
Hole diameter - D
7.6 mm
Material composition
Stainless steel, 1.4162 - EN 10088, S32102/S32101 - ASTM A959/UNS
Thickness Insulation Material
0.24 in
Width
53 mm
Height
58 mm

Documents

pdf  EPD_MFT-VSI_EN, English [ 997.1 KB ]

Features & Applications

Features

  • Improved performance – new duplex steel bracket with an optimized baseplate hole pattern and a pre-mounted isolator is designed for higher loads and corrosion resistance while reducing thermal bridging and carbon footprint
  • Increased design optimization and value engineering – the expanded range of bracket sizes increase design efficiency to reduce installation costs and material wastage. Contact your local Hilti team for project-tailored engineering services
  • Higher productivity – the pre-mounted isolator saves on- site bracket assembly time and the “helping hand” clip temporarily holds profiles in place to help ensure correct installation
  • Versatile and easy-to-install – the bracket’s baseplate has 7.6 mm round holes optimized for seismic loads, fastens with metal screws, and allows profiles to be secured at sliding points
  • Certified and tested – EN 1090 (CE mark), fire safety according to NFPA 285 Phase 1–3, heat loss assessed according to EN ISO 10211, and made of duplex stainless steel classified to Corrosion Resistance Class III (EN 1993-1-4)

Applications

  • Mounting the entire ventilated façade system substructure on primary building structures made of metal stud
  • Ideal for projects requiring high levels of fire compliance, thermal efficiency, and low carbon footprint requirements
  • Accommodates fastening profiles with various configurations, allowing a wide range of façade panel types to be installed
  • Suitable for all rainscreen cladding in corrosive (C3) environments
