MFT-FOX VI M Bracket

MFT-FOX VI M 6.5 / 11 bracket, new version
FOX VI M 6.5 / 11 - one layer system rivets
bracket fastening DX 6
bracket fastening HFB
bracket fastening SIW 6AT
MFT-FOX VI M 6.5 / 11 bracket
MFT-FOX VI M 6.5 / 11 bracket, new version
FOX VI M 6.5 / 11 - one layer system rivets
bracket fastening DX 6
bracket fastening HFB
bracket fastening SIW 6AT

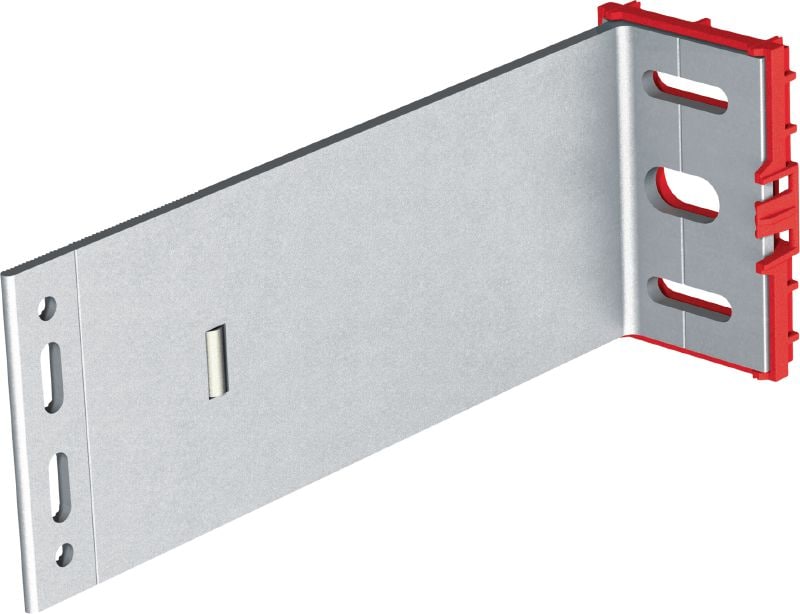

MFT-FOX VI M 6.5 / 11 bracket

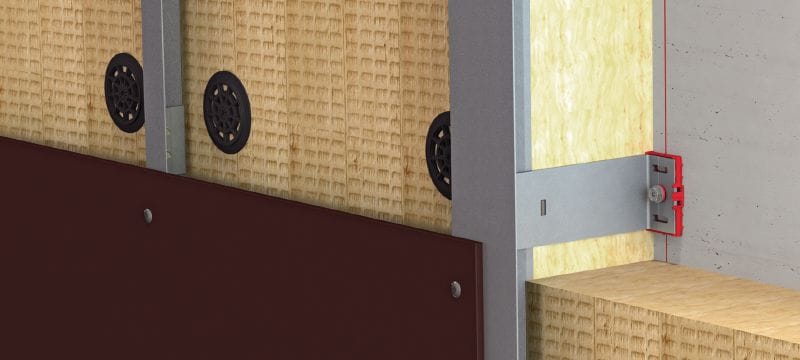

Versatile wall bracket for installing rainscreen façade substructures

  • Material composition: EN AW-6063 T66
  • Insulation material: Polypropylene
  • Thickness Insulation Material: 0.24 in

Customers also searched for Rainscreen Bracket or Cladding.

Choose options

Length
  • 40 mm
  • 60 mm
  • 80 mm
  • 100 mm
  • 120 mm
  • 140 mm
  • 160 mm
  • 180 mm
  • 200 mm
  • 220 mm
  • 240 mm
  • 260 mm
  • 280 mm
  • 300 mm
Pack size
  • 50 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

From $298.00

Technical Data

MFT-FOX VI M 6.5 / 11 bracket
Material composition
EN AW-6063 T66
Insulation material
Polypropylene
Thickness Insulation Material
0.24 in
Width
53 mm
Height
80 mm

Documents

Features & Applications

Features

  • Labor saving – optimized bracket design and innovative fastening solutions help to lower your total cost of installation
  • Easier installation – optimized helping hand and clearer markings to simplify bracket fastening and rail alignment

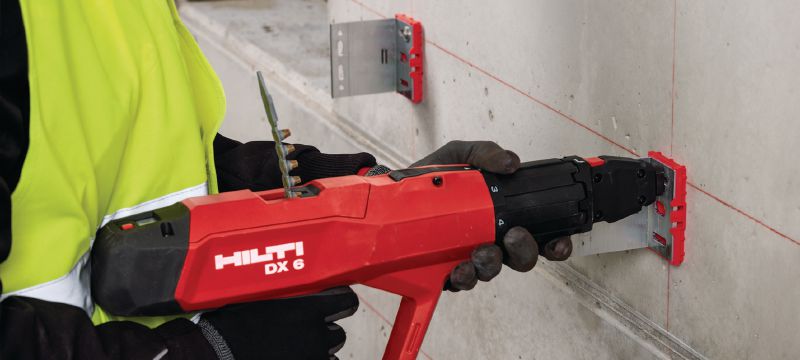

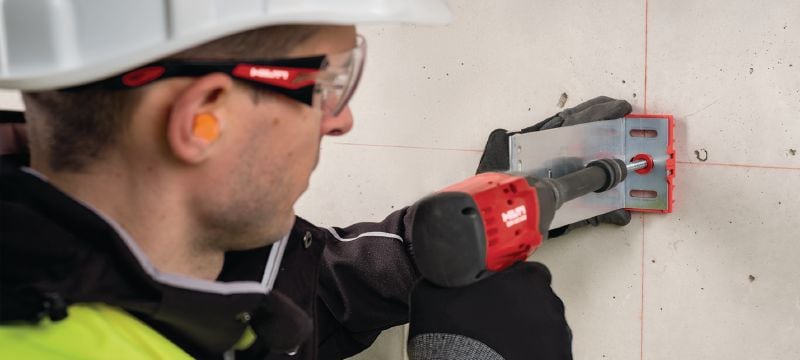

  • Multiple fastening options – can be installed using suitable anchors, screws or direct fastening (DX)
  • Pre-assembled bracket – arrives on-site ready to fasten to the wall or slab
  • Engineering support available – contact your local Hilti team for project-specific advice on optimizing the ventilated façade substructure

Applications

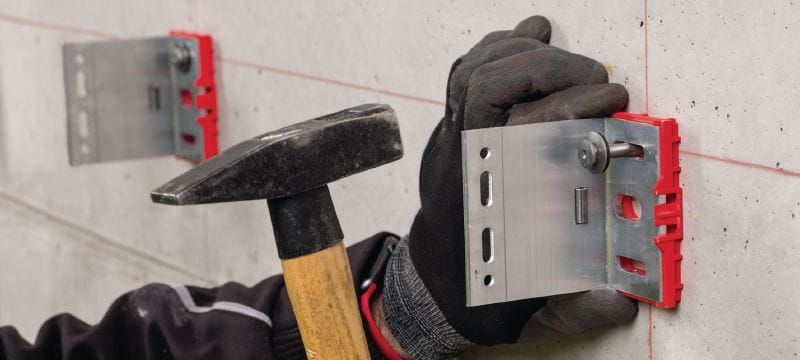

  • Fastening rainscreen façade substructure to concrete, masonry, metal studs and wood
  • Mounting façade substructures on the primary structure (helping hand bracket)
  • Installing vertical support rails
  • Suitable for all façade cladding

For approval or certificate information, please see individual items.
