MFT-FOX VI S Bracket

Configurator
Technical Data
Documents
Features & Applications
Related Products
FOX VI S 11 bracket, new version

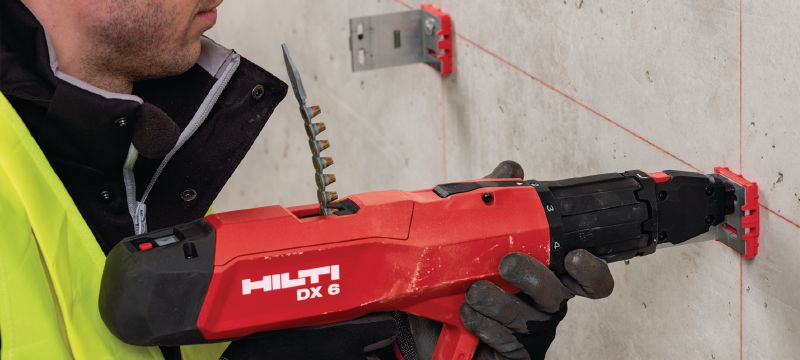

bracket fastening DX 6

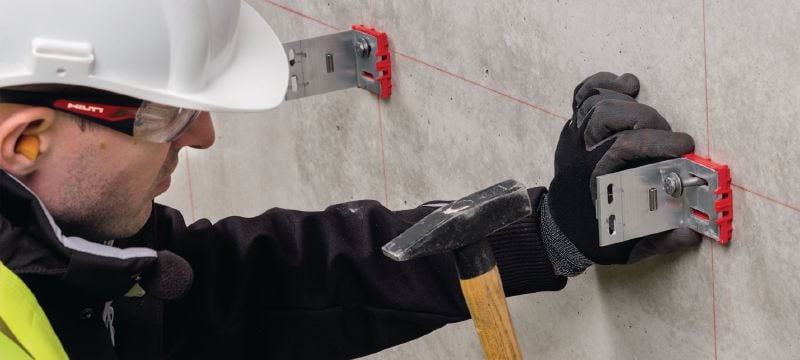

bracket fastening HFB

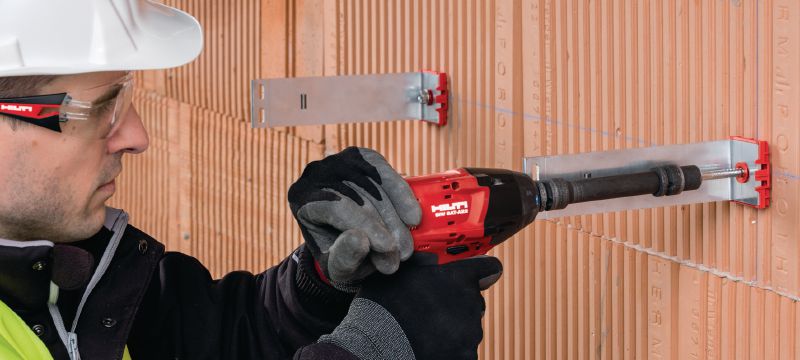

bracket fastening SIW 6AT

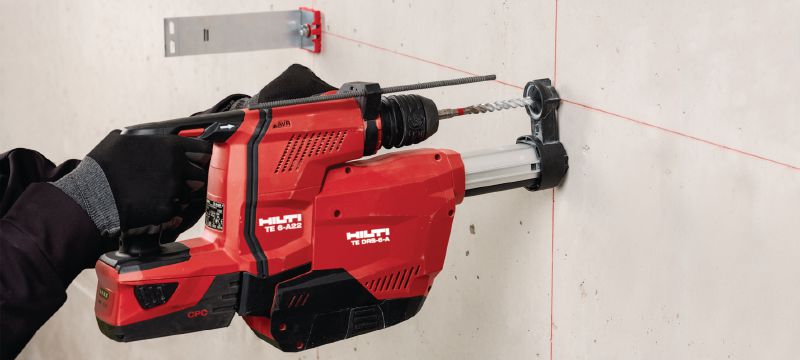

bracket fastening drilling TE 6-A22
FOX VI S 6.5 bracket
FOX VI S 11 bracket

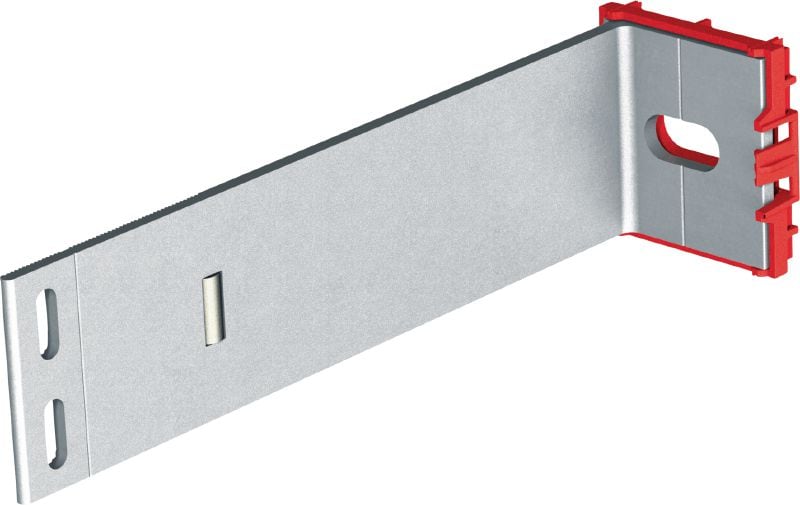

Versatile wall bracket for installing rainscreen façade substructures

  • Material composition: Aluminum EN AW-6063 T66
  • Insulation material: Polypropylene
  • Thickness Insulation Material: 0.24 in

Customers also searched for Rainscreen Bracket or Cladding.

Choose options

Length
  • 40 mm
  • 60 mm
  • 80 mm
  • 100 mm
  • 120 mm
  • 140 mm
  • 160 mm
  • 180 mm
  • 200 mm
  • 220 mm
  • 240 mm
  • 260 mm
  • 280 mm
  • 300 mm
Hole diameter - D
  • 6.5 mm
  • 11 mm
Pack size
  • 50 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $231.00

Technical Data

Details
Technical illustrations
Material composition
Aluminum EN AW-6063 T66
Insulation material
Polypropylene
Thickness Insulation Material
0.24 in
Width
53 mm
Height
55 mm

Documents

HSE Information
Approval document
Technical information
Test Report
Brochure
Sustainability Documentation
Operating Instruction
pdf ENVIRONMENTAL PRODUCT DECLARATION MFT-FOX V, English [ 819.9 KB ]

Features & Applications

Features

  • Labor saving – optimized bracket design and innovative fastening solutions help to lower your total cost of installation
  • Easier installation – optimized helping hand and clearer markings to simplify bracket fastening and rail alignment
  • Multiple fastening options – can be installed using suitable anchors, screws or direct fastening (DX)
  • Pre-assembled bracket – arrives on-site ready to fasten to the wall or slab
  • Engineering support available – contact your local Hilti team for project-specific advice on optimizing the ventilated façade substructure

Applications

  • Fastening rainscreen façade substructure to concrete, masonry, metal studs and wood
  • Mounting façade substructures on the primary structure (helping hand bracket)
  • Installing vertical support rails
  • Suitable for all façade cladding

For approval or certificate information, please see individual items.
