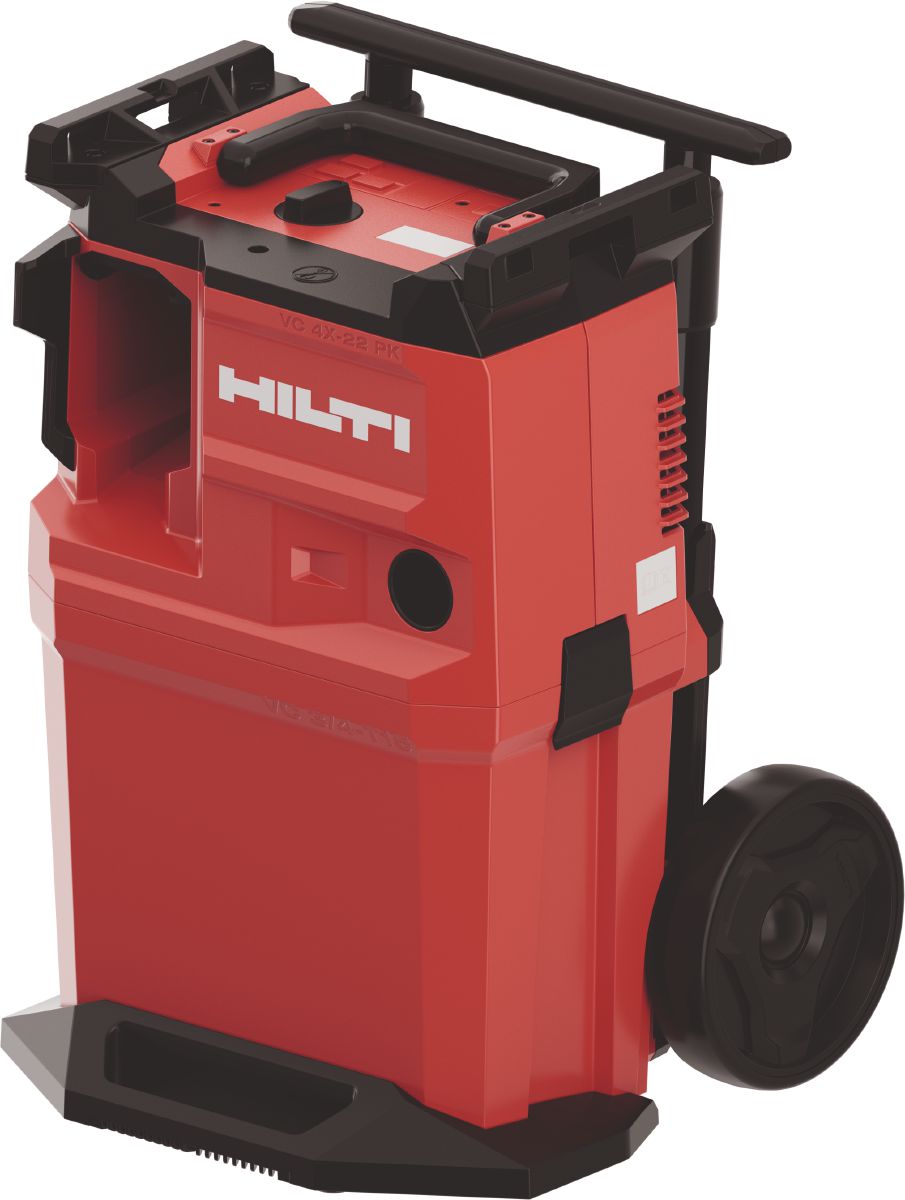

VC 4LX-22 PK T15 Cordless L-Class dust extractor

#2466251

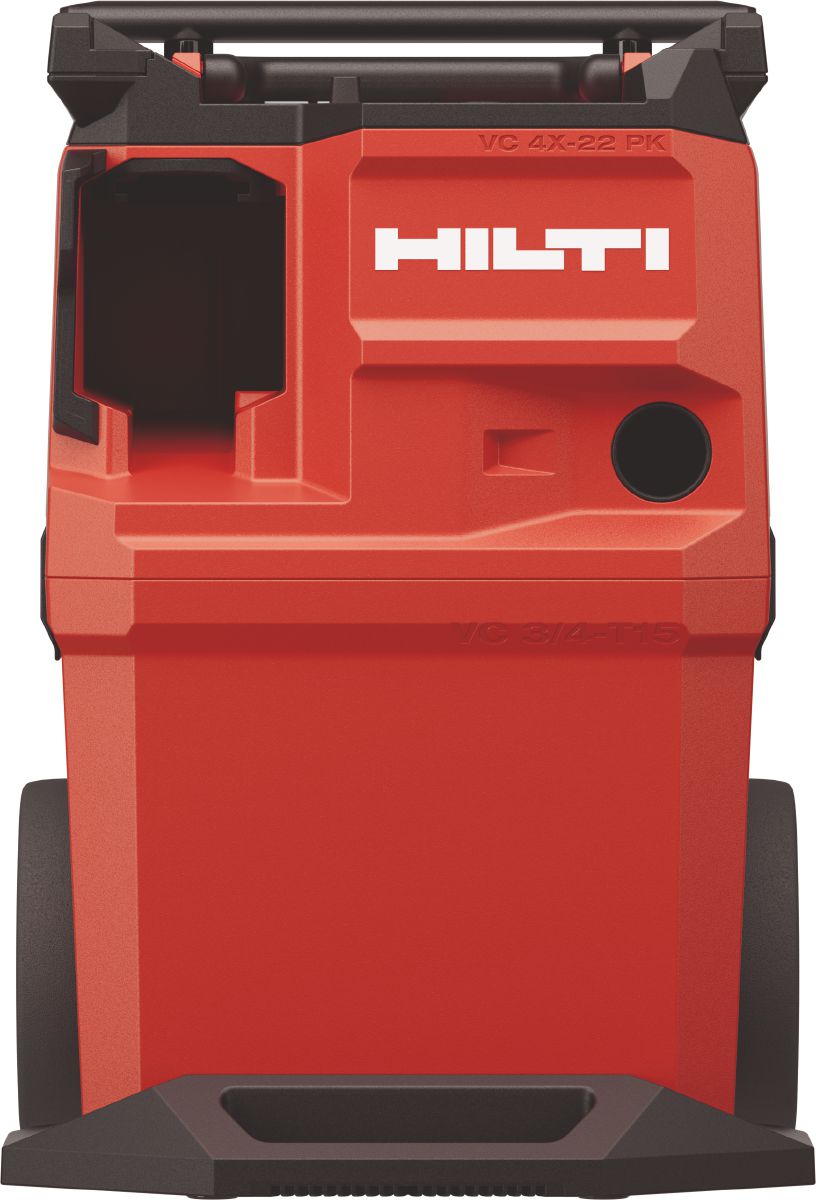

Still life image of the VC 4X-22 PK T15 cordless construction vacuum without battery

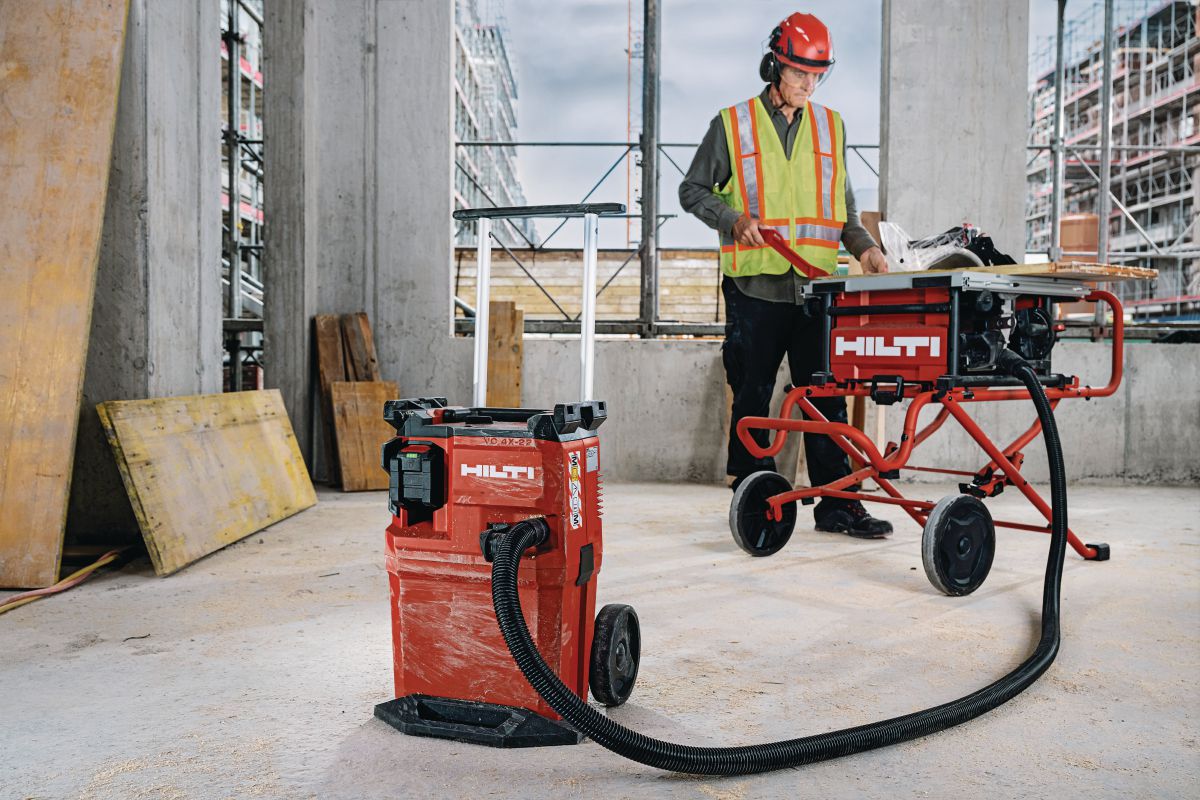

Application image of VC 4X-22 PK vacuum cleaner and table saw SCT 60-22 (G01) with wood board and push stick.

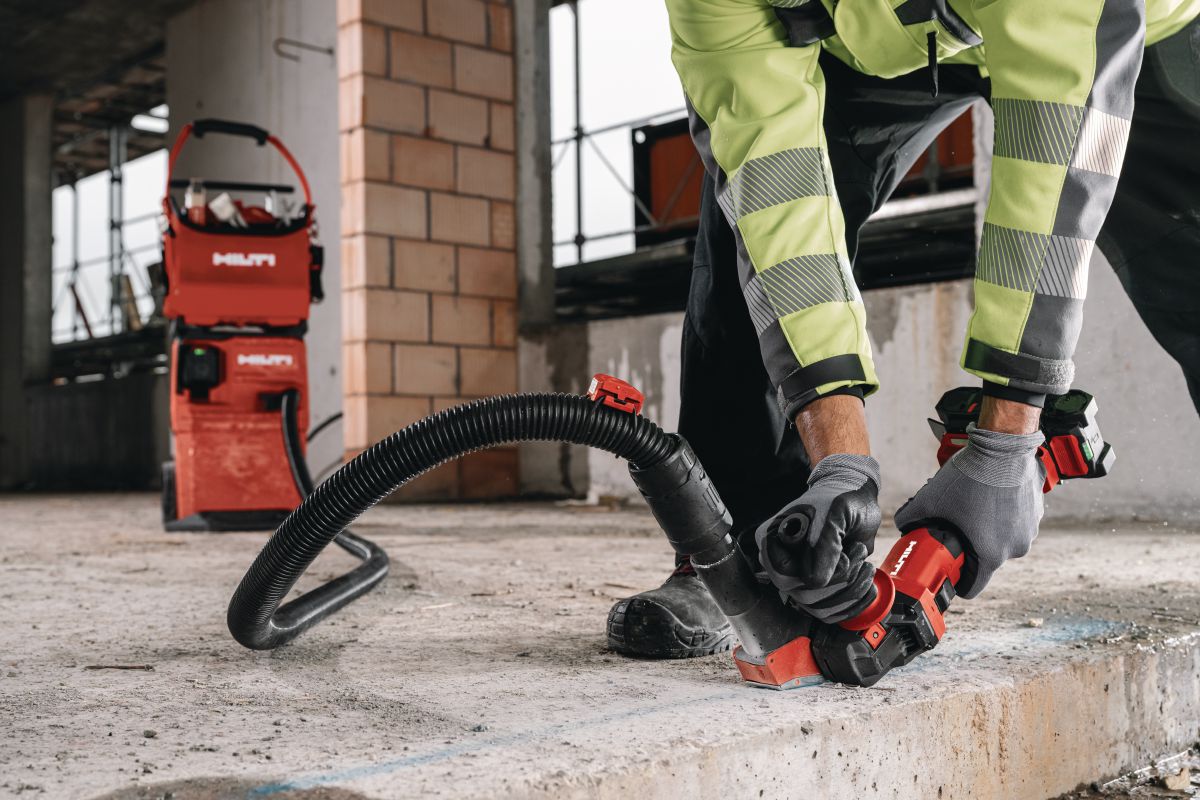

Application picture of the cordless angle grinder AG 4-22. Concrete cutting application.

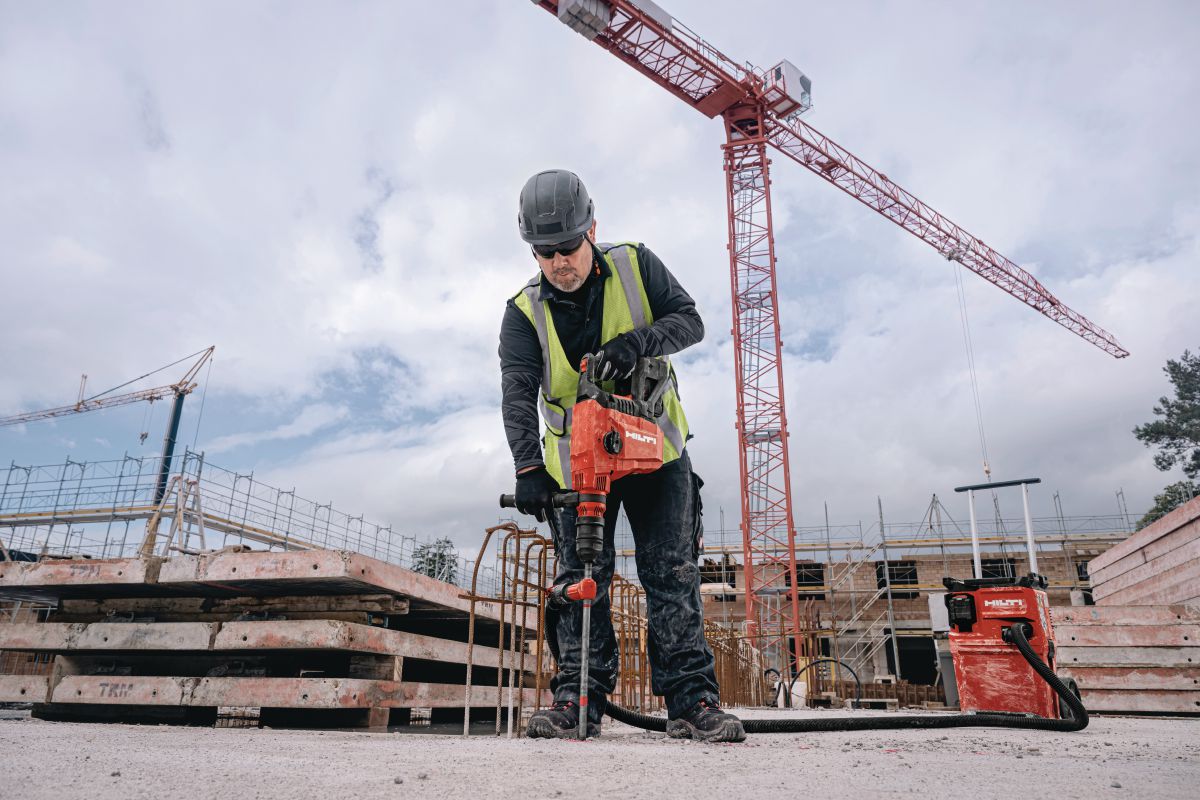

Application picture of the rotary hammer TE 70-22 with the hollow drill bit TE-YD and the vacuum cleaner attached. Post-installed rebar application.

Compact and powerful cordless dust extractor with ProKit compatibility for connection with power tools and jobsite clean ups (wet & dry), 15 L (8 gal) tank (Nuron battery)

Air Flow at Hose End: 63.57 ft³/min
Max. Vacuum: 2.47 psi
Dust capacity: 36 lb

Build your own ProKit storage system

Discover endless possibilities with our ProKit modular storage solutions.

Build your own

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

$709.00

1 Each

Technical Data

Air Flow at Hose End

63.57 ft³/min

Max. Vacuum

2.47 psi

Dust capacity

36 lb

Power source

Cordless

A-weighted emission sound power level

92.47 dB (A) ¹

Dimensions (LxWxH)

15.4 x 15 x 21.5 mm

According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction VC 4X-22 PK (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 6.2 MB ]

Download

Features & Applications

Features

Powerful yet compact - pair our most powerful cordless dust extractor with your power tools to help reduce dust for increased safety, and clean up your jobsites more efficiently
All-in-one setup – stack your ProKit half-width items on top of your dust extractor, helping you transport all your batteries, chargers, and accessories in one mobile unit
Modular design – simply detach your VC 4LX-22 dust extractor top and attach a larger tank for the storage capacity you need
Automatic filter cleaning – helps to keep suction high by removing dust from the filter for fewer interruptions during your work
Optional auto-start available – suction can be turned on/off via Bluetooth® remote control

Applications

Wet extraction, dry diamond drilling, sanding, and light grinding/cutting/slitting
Wet and dry vacuum cleaning of construction dust, extraction of wood dust/ chips, and concrete debris from drilling/ breaking
Large storage tank and automatic filter cleaning enables cordless concrete grinding
ProKit compatible interface for half-width ProKit items (e.g. tote, organizers, tool box)
L-Class vacuum – for capturing 99% of dust with a grain size under two microns
