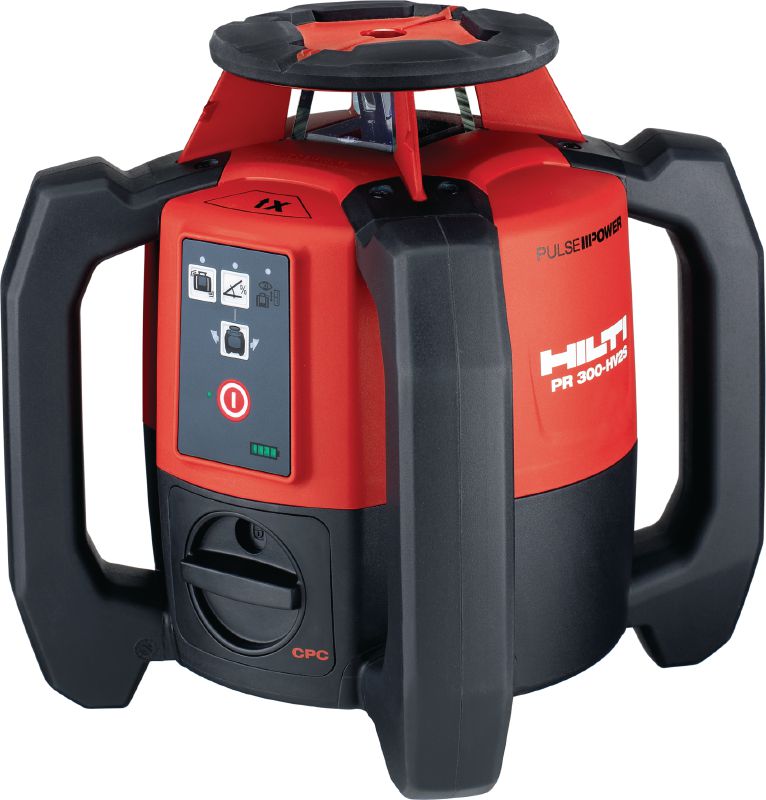

PR 300-HV2S Outdoor rotating laser level

PR 300-HV2S LAYOUT KIT #3539256

PR 300-HV2S, Rotating Laser
L079534.tiff
L060437_v1.tiff
L079528.tiff
L079532.tiff

Outdoor rotary laser level with automatic vertical alignment and dual slope dial-in functions for leveling, aligning, grading and squaring tasks

  • Accuracy: ±0.02 in at 33 ft
  • Laser class: < 4.85 mW, 620-690 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
  • Self leveling range at room temperature: +/-5° °

Customers also searched for laser level, rotating laser level, self leveling laser or transit laser level.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$6,305.25
$6,305.25
/
1 Each

Technical Data

Accuracy
±0.02 in at 33 ft
Laser class
< 4.85 mW, 620-690 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
Self leveling range at room temperature
+/-5° °
Rotation speed
600 rpm
IP protection class
IP 66 (EN 60529) - battery compartment excluded
Operating temperature range
-4 - 122 °F
Maximum operating time
25 h

Documents

pdf PR 300 P1 manual, English [ 77.6 MB ]

Features & Applications

Features

  • Grading has never been this easy – digital slope entry in two planes, the automatic slope check and the automatic E-targeting function can make all grading applications a one-person operation
  • When used with the PRA 30 remote control/laser receiver, the Hilti PR 300-HV2S rotating laser is a complete, more reliable outdoor layout tool for virtually any leveling, aligning and squaring tasks
  • Built to last – shock-absorbing handles and receiver holder engineered to US Military standards (MIL-STD-810G) and with IP66 protection to help maintain laser accuracy in rough jobsite conditions
  • Fast and automatic laser alignment thanks to the Auto Alignment System
  • Surveillance mode – the tool monitors and corrects the vertical laser plane at regular intervals for most reliable performance

Applications

  • Leveling – roadworks, formwork, concrete pours, excavation, etc.
  • Aligning – transferring building lines, aligning columns, façades
  • Dual-slope grading – ramps, parking lots, pipes
  • Squaring – formwork
