TE 30 Rotary hammer

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
25578.tif
25581.tif
28444.tif

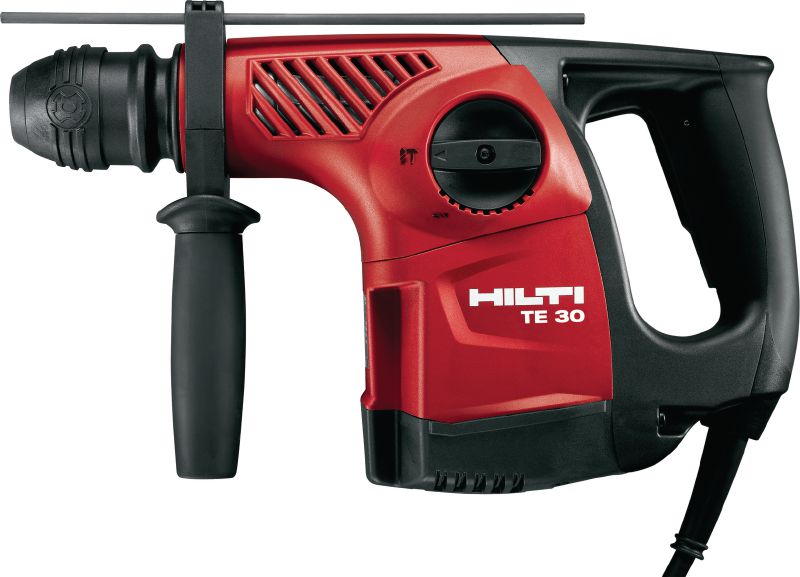

Powerful SDS Plus (TE-C) rotary hammer for heavy-duty concrete drilling

  • Weight according EPTA-Procedure 01/2003 without battery: 8.8 lb
  • Optimum Hammer drilling range: 13/32 - 25/32 in
  • Single impact energy: 2.4 ft-lbs

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $1,374.01

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
8.8 lb
Optimum Hammer drilling range
13/32 - 25/32 in
Single impact energy
2.4 ft-lbs
Working mode
Hammer drilling, Drilling
Hammer drilling diameter range
3/16 - 1-3/32 in
Hammer drilling RPM
750 rpm
Full hammering frequency
4080 impacts/minute
Functionality
Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
16.5 m/s² 1
Triaxial vibration for chiseling into concrete
16.5 m/s² 2
A-weighted emission sound pressure level
90 dB (A) 3
Dimensions (LxWxH)
14.1 x 3.7 x 8.4 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf OSHA 1926.1153, Section VII (1), English [ 584.4 KB ]

Features & Applications

Features

  • Exceptionally high power-to-weight ratio
  • Superior working comfort thanks to perfect balance, low weight and compact design
  • Ruggedly built from high-grade materials and components so the tool lasts much longer
  • Quick-change chucks – changing bits is fast and tool-free
  • OSHA 1926.1153 Table 1 compliant when used with the TE DRS-D dust removal system and a Hilti vacuum cleaner

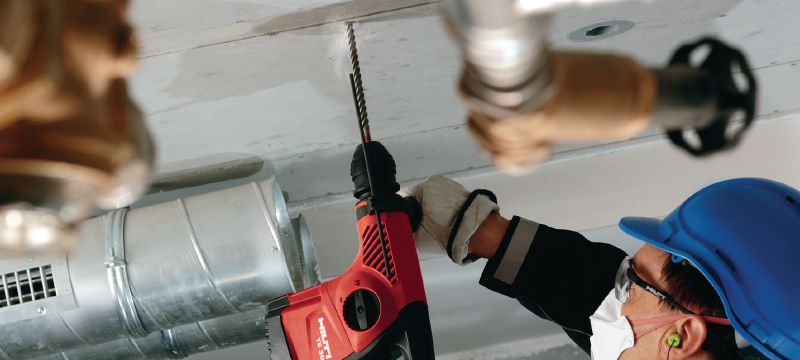

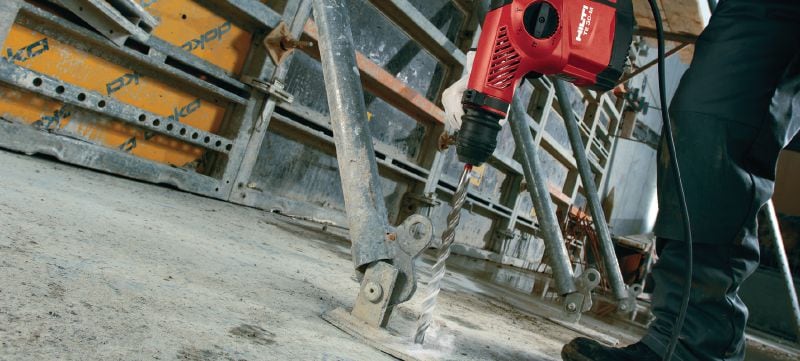

Applications

  • Drilling anchor holes and through-holes in concrete and masonry, diameter range 4-28 mm, recommended range 8-20 mm
  • Drilling in wood using bits 10-35 mm in diameter
  • Drilling in wood and metal using the keyless chuck and drill bits with smooth shank up to 13 mm diameter
  • Drilling in wood and metal with bits with smooth shank up to 13 mm diameter using the quick-release chuck
  • Driving anchor screws and concrete screw anchors

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 1 or free, in and out of the repair center the same day or repair is free of charge
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • No registration or proof of purchase ever required
More information about Tool Services

Fleet Management

  • Individual labels and online visibility provide tool fleet transparency.
  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Loan tools during repair to reduce downtime.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
