DG 150 Concrete grinder

DG 150 starter w/ cups #3545530

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
5612.tif

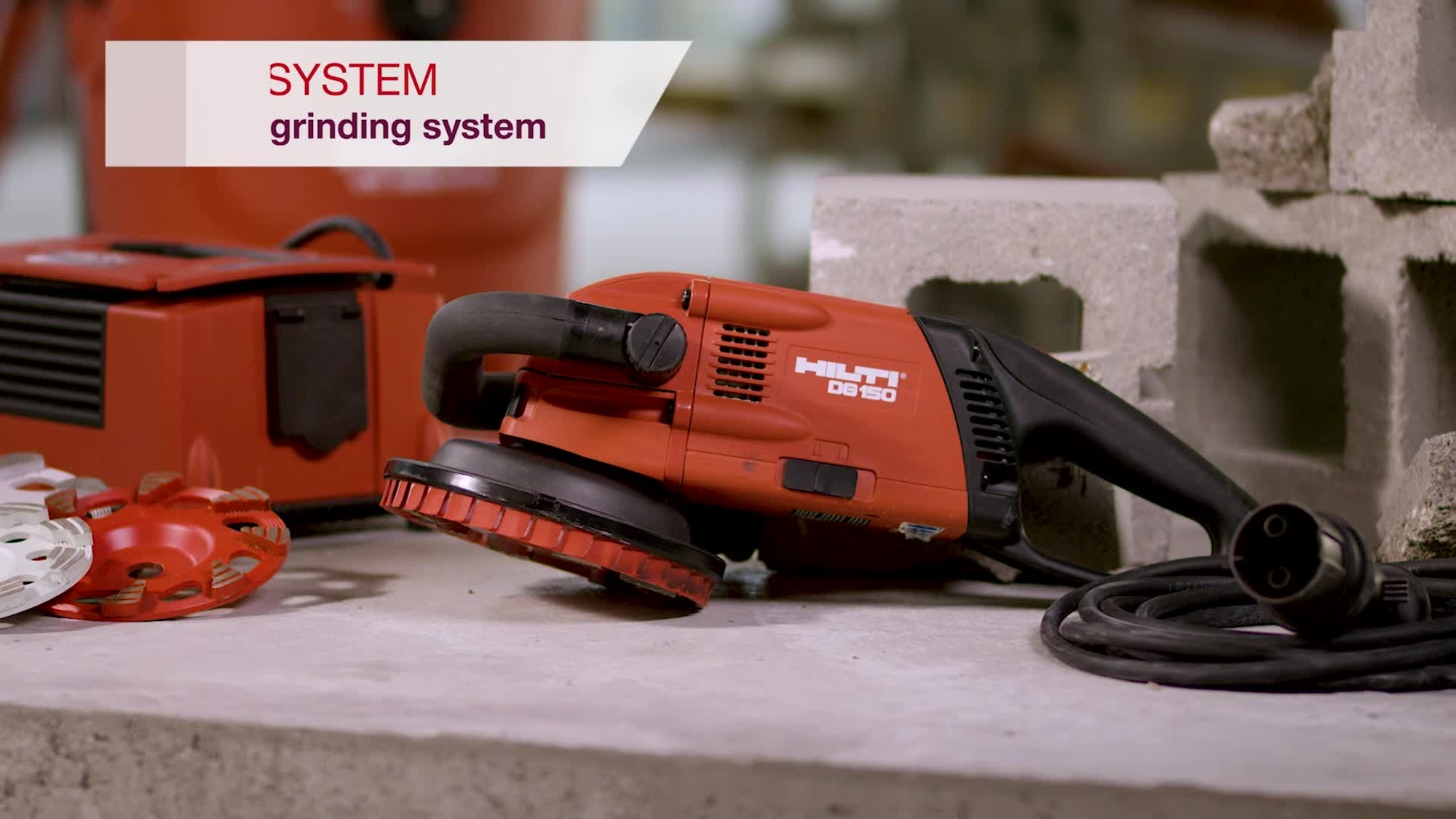

DG 150
DG 150

Concrete grinder for heavy-duty grinding, roughening of concrete, and removal of paint and coatings

  • Weight according EPTA-Procedure 01/2003 without battery: 9 lb
  • Base material: Concrete, Coatings, Adhesive, Epoxy, Cement
  • No load RPM: gear 2: 6600 rpm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$4,129.00
$4,129.00 / 1 Each

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
9 lb
Base material
Concrete, Coatings, Adhesive, Epoxy, Cement
No load RPM
gear 2: 6600 rpm
Triaxial vibration value for surface grinding (ah)
5.8 m/s² 1
Brushless motor
Yes
Arbor size
3/4 in
A-weighted emission sound pressure level
88 dB (A) 2
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Approval document local
Documentation
Material safety datasheet
Operating Instruction
CSA US (dummy for CSA logo)

Features & Applications

Features

  • Dedicated grinding system – purpose-built to deliver the highest productivity, faster concrete grinding and coating removal compared to conventional angle grinders
  • Brushless motor – lasts up to 10 times longer than conventional angle grinder motors
  • Quick-stop halts the cup wheel within two seconds of releasing the trigger

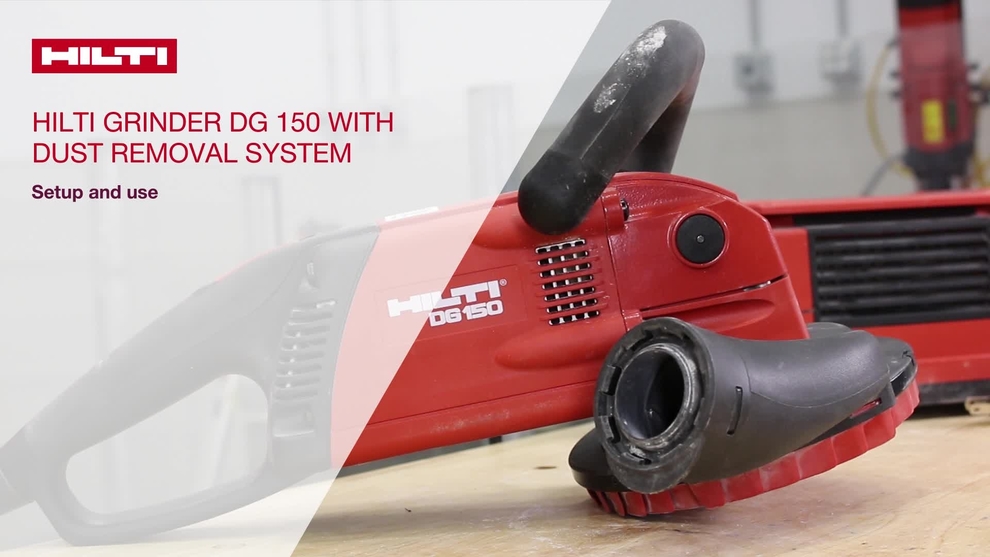

  • Adjustable dust hood height and edge-access opening for best dust removal performance
  • Virtually dust-free when used with a compatible Hilti vacuum cleaner

Applications

  • Surface grinding on concrete, mortar and tiles
  • Removing paint, adhesive and other coatings from concrete

Services

Hilti Tool Service

  • 1 or free, in and out of the repair center the same day or repair is free of charge
  • Product warranty against parts and manufacturing irregularities for 20 years
  • Exclusive use of genuine Hilti spare parts
  • No registration or proof of purchase ever required
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
