MT-SP OC Slider plate

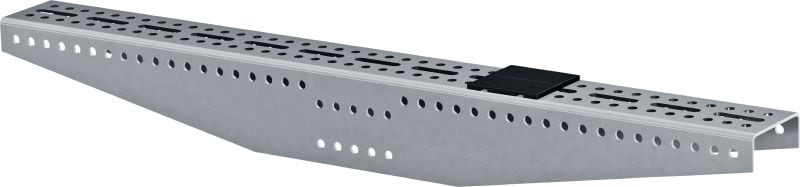

MT-U-GL1 girder with MT-SP slider plate in horizontal oriencation.

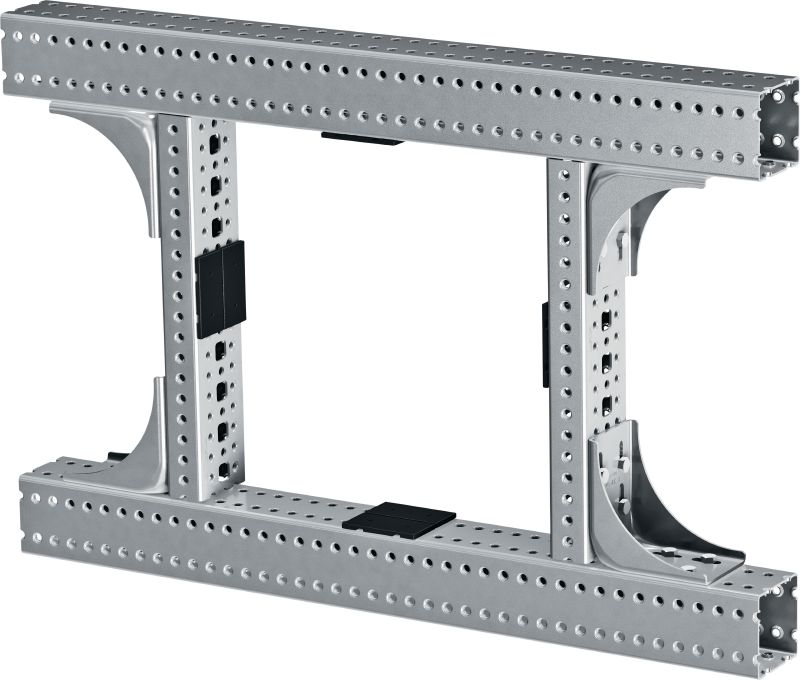

Closed MT frame with MT-SP slider plate in horizontal, vertical and overhead orientation.

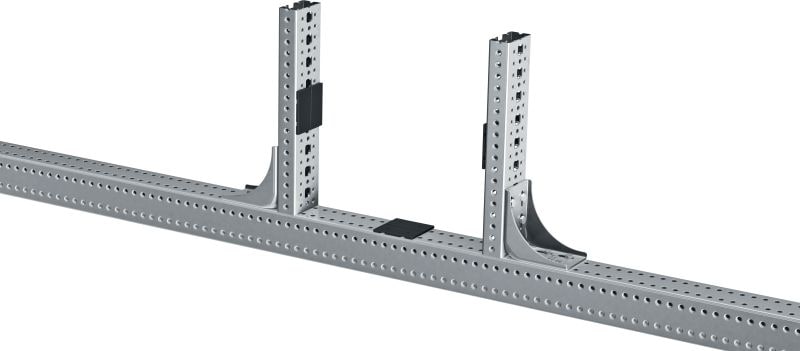

Open MT frame with MT-SP slider plate in horizontal and vertical orientation.

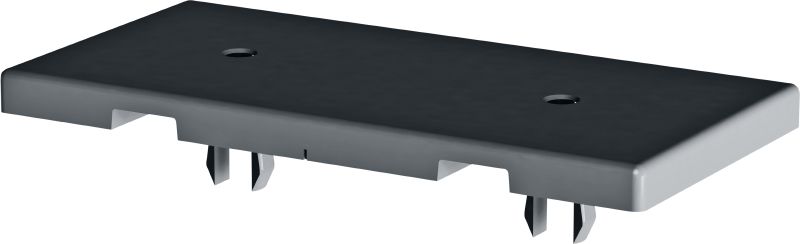

MT-SP slider plate top view.

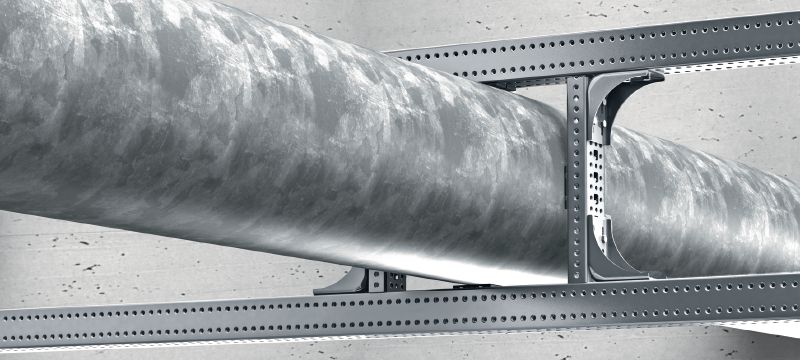

Single pipe run mounted in a closed MT frame with MT-SP slider plate.
Open and editable line drawing for MT-SP sliding plate bottom view with metric and imperial dimensions, created in December 2022
MT-U-GL1 girder with MT-SP slider plate in horizontal oriencation.
Closed MT frame with MT-SP slider plate in horizontal, vertical and overhead orientation.
Open MT frame with MT-SP slider plate in horizontal and vertical orientation.
MT-SP slider plate top view.
Single pipe run mounted in a closed MT frame with MT-SP slider plate.
Open and editable line drawing for MT-SP sliding plate bottom view with metric and imperial dimensions, created in December 2022

Universal low-friction interface for use between pipes and MT girders with improved temperature and UV-resistance

  • Material composition: PA66-GF30 (UV-stabilised)
  • Surface finish: n/a

Technical Data

Open and editable line drawing for MT-SP sliding plate bottom view with metric and imperial dimensions, created in December 2022
Material composition
PA66-GF30 (UV-stabilised)
Surface finish
n/a

Documents

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Improved temperature and UV resistance – suitable for heat exposure with media temperature of up to 150°C (302°F) to help ensure extended lifetime in both indoor and outdoor environments
  • Easier to fix to MT girders with a snap-fit mechanism in a horizontal, vertical, or overhead orientation
  • Robust solution for line and plain guides in combination with U-bolts, pipe shoes

Applications

  • Facilitating pipe shoe movement due to thermal expansion or contraction
  • Helping to prevent contact corrosion between the pipe and support system
  • Insulating against heat transfer from media to the surrounding girders
  • Suitable for application temperature of up to 150°C (302°F) and can be used in indoor or outdoor environments
  • Can be used with all boxed profiles from MT-70 up to MT-100 as well as with MT-U-GL1

For approval or certificate information, please see individual items.
