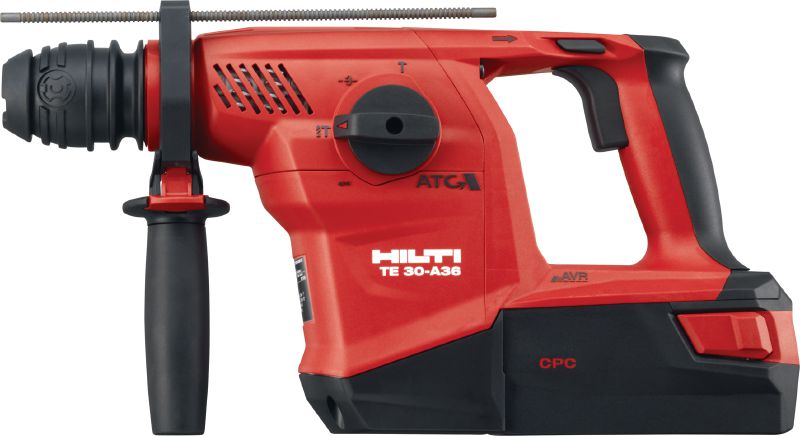

TE 30-A36 Cordless rotary hammer

Tool on Demand - TE 30-A 36 #3507347

Configurator

Technical Data

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

$73.29

$73.29 / 1 Each

Technical Data

Weight according EPTA-Procedure 01/2003 without battery

11.2 lb

Optimum Hammer drilling range

13/32 - 25/32 in

Single impact energy

2.7 ft-lbs

Hammer drilling diameter range

5/32 - 1-3/32 in

Hammer drilling RPM

850 rpm

Full hammering frequency

4500 impacts/minute

Functionality

Active Torque Control (ATC), Active Vibration Reduction (AVR), Removable chuck, Reverse mode, Depth gauge

Triaxial vibration for chiseling into concrete

8.5 m/s² ¹

A-weighted emission sound power level

99 dB (A) ²

A-weighted emission sound pressure level

95 dB (A) ³

Dust removal system available

TE DRS-D, TE DRS-S

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

Features & Applications

Features

Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the drill bit jams – helping to reduce a common safety hazard
Active Vibration Reduction (AVR) makes the rotary hammer less tiring to use – helping to increase daily productivity
Brushless motor for exceptionally high performance and superior system efficiency
Quick-change chucks – changing bits is fast and tool-free
Extra-long lifetime thanks to a highly robust chuck, motor components and casing

Applications

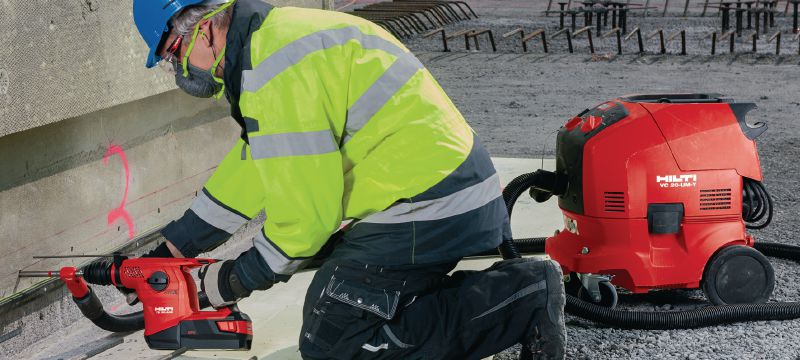

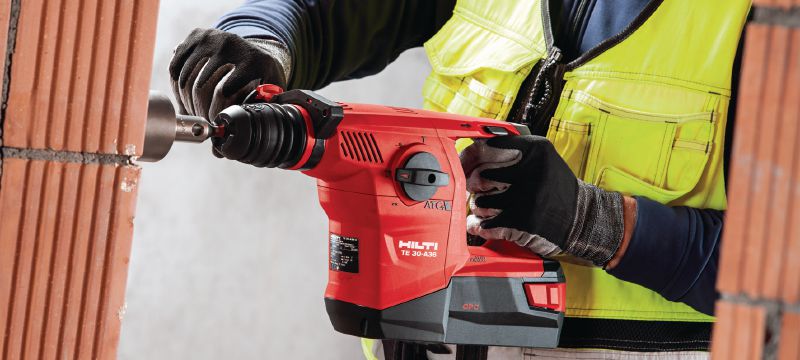

Drilling anchor holes and through-holes in concrete and masonry, diameter range 4-28 mm, recommended range 10-20 mm

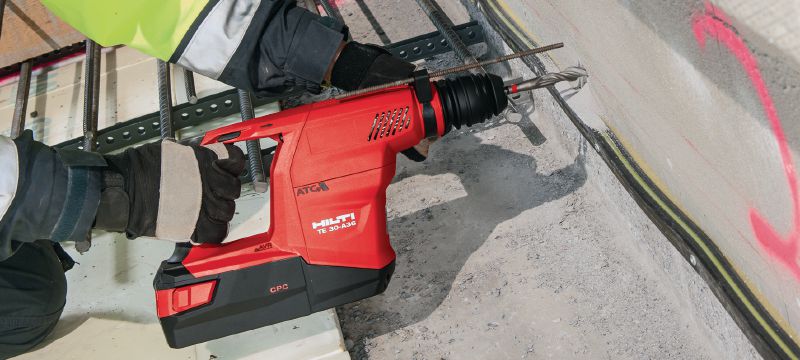

Drilling holes for rebar doweling, diameter range 4-28 mm, recommended range 10-20 mm
Corrective chiseling
Drilling in wood, metal and other materials using the quick-release chuck
Driving and removing screws using the quick-release chuck
