TE 7-C Rotary hammer

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
11298.tif
11293.tif
11294.tif
11296.tif
TE 7-C

Powerful D-grip, triple-mode SDS Plus (TE-C) rotary hammer with chipping function

  • Weight according EPTA-Procedure 01/2003 without battery: 7.5 lb
  • Optimum Hammer drilling range: 1/4 - 5/8 in
  • Single impact energy: 2.6

Customers also searched for corded hammer drill, electric hammer drill, concrete hammer drill, hammer drill or SDS plus hammer drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $32.00

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
7.5 lb
Optimum Hammer drilling range
1/4 - 5/8 in
Single impact energy
2.6
Working mode
Hammer drilling, Drilling, Chiseling, Chisel setting
Hammer drilling diameter range
5/32 - 1-3/32 in
Hammer drilling RPM
740 rpm
Full hammering frequency
4020 impacts/minute
Functionality
Chipping, Integrated Dust Removal System (DRS), Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
17 m/s² 1
Triaxial vibration for chiseling into concrete
17 m/s² 2
A-weighted emission sound pressure level
90 dB (A) 3
Dimensions (LxWxH)
13.5 x 3.4 x 8.5 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf OSHA 1926.1153, Section VII (1), English [ 584.4 KB ]

Features & Applications

Features

  • Ergonomically designed D-grip for comfortable use over long periods
  • Robustly built – engineered for maximum reliability and long life
  • High drilling performance
  • Virtually dustless drilling when used with the DRS-M dust removal system
  • Quick-change TE-C Click chuck for versatility and ease of use

Applications

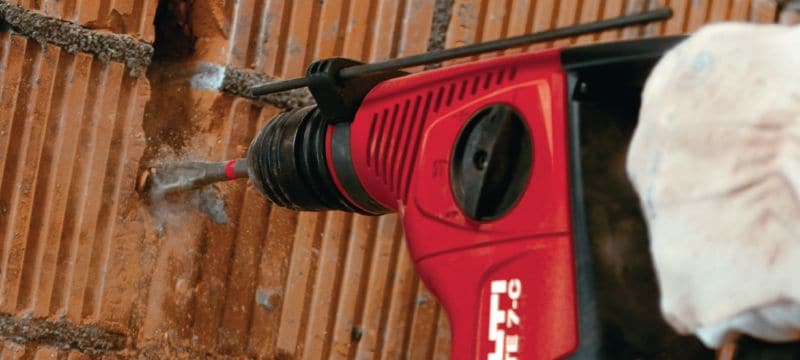

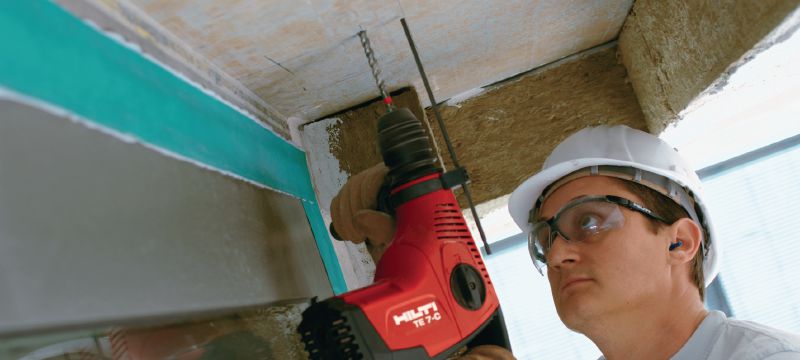

  • Drilling and hammer drilling in concrete and masonry
  • Corrective chiseling and small channel openings in concrete
  • Occasional drilling in wood and steel with optional quick release chuck
  • Drilling in concrete in clean areas with integrated Dust Removal System (DRS-M)
  • Cutting socket recesses in masonry

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 1 or free, in and out of the repair center the same day or repair is free of charge
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • No registration or proof of purchase ever required
More information about Tool Services

Fleet Management

  • Individual labels and online visibility provide tool fleet transparency.
  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
  • High-performing tools and latest technology help to increase jobsite productivity.
More information about Fleet Management
