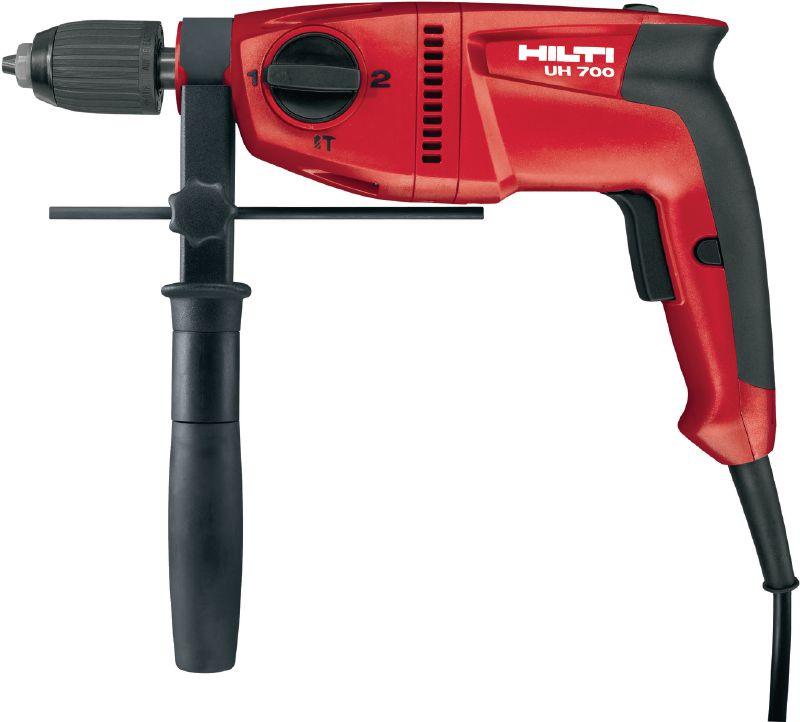

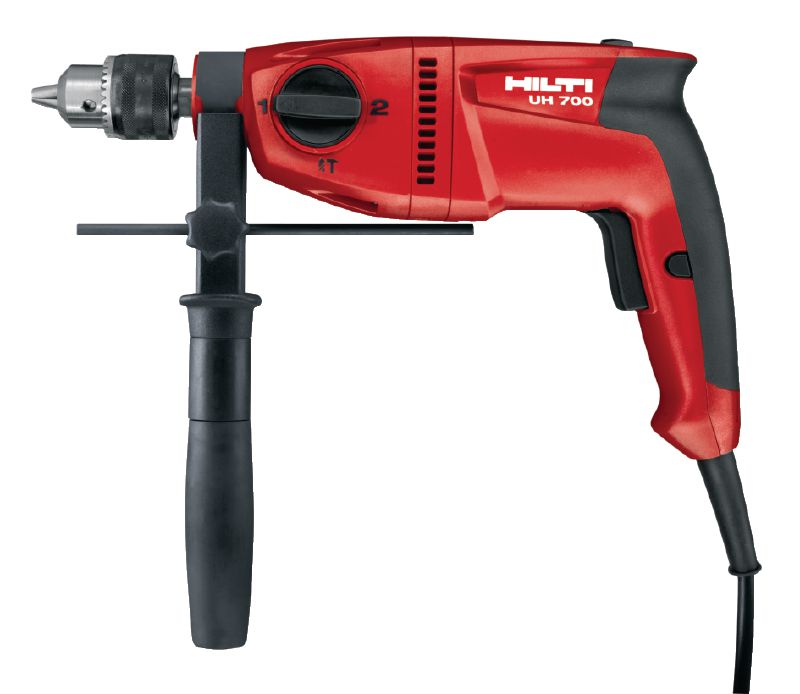

UH 700 Hammer drill
Corded two-speed, high-torque hammer drill driver for universal use
- Chuck clamping range: 1/16 - 1/2 in
- No load RPM: gear 1: 900 rpm; gear 2: 2500 rpm
- Maximum torque (Soft / Hard Joint): 708 in-lb (soft joint)
Customers also searched for masonry drill , rotary hammer , electric drill or concrete drill.
Technical Data
Chuck clamping range
1/16 - 1/2 in
No load RPM
gear 1: 900 rpm; gear 2: 2500 rpm
Maximum torque (Soft / Hard Joint)
708 in-lb (soft joint)
Number of gears
2
Dimensions (LxWxH)
13.5 x 3.4 x 8.1 in
Weight
5.73 lb
Triaxial vibration value for drilling into metal (ah,D)
2.5 m/s² 1
Chuck type
Pistol-grip, Quick-release chuck 13 mm
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Ergonomically designed pistol grip and low weight for maximum comfort during long periods of use
- Very reliable thanks to the extremely rugged casing and robust motor
- Stepless electronic speed control for smooth, gentle starting and screwdriving
- Two gears plus additional hammering function for a wide range of applications
- Choice of keyless chuck with spindle lock or robust key chuck
Applications

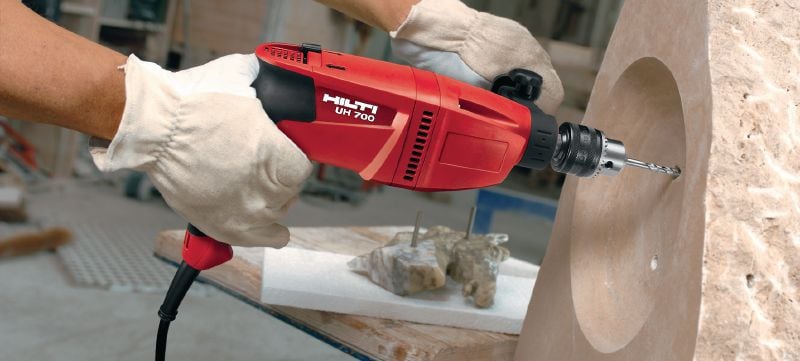

- Hammer drilling in masonry and natural stone

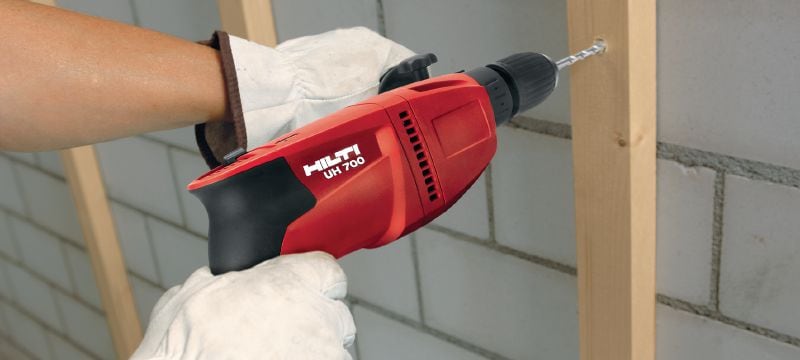

- Rotary drilling in steel and sheet metal
- Rotary drilling and hole sawing in soft and hard woods
- Various screwdriving jobs
- Drilling large-diameter holes in wood
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- 1 or free, in and out of the repair center the same day or repair is free of charge
- Product warranty against parts and manufacturing irregularities for 20 years
- No registration or proof of purchase ever required
Fleet Management
- Individual labels and online visibility provide tool fleet transparency.
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- Theft coverage helps to reduce financial risk and unexpected expenses.
