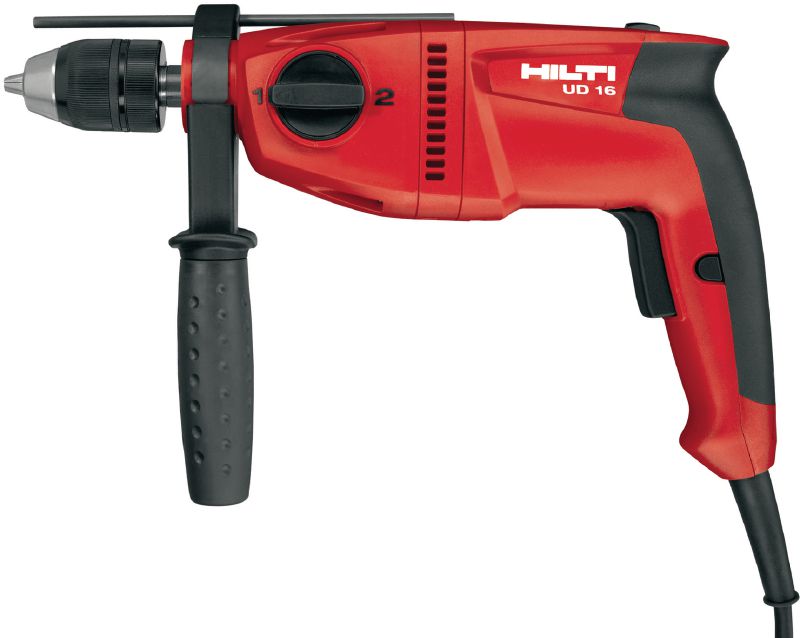

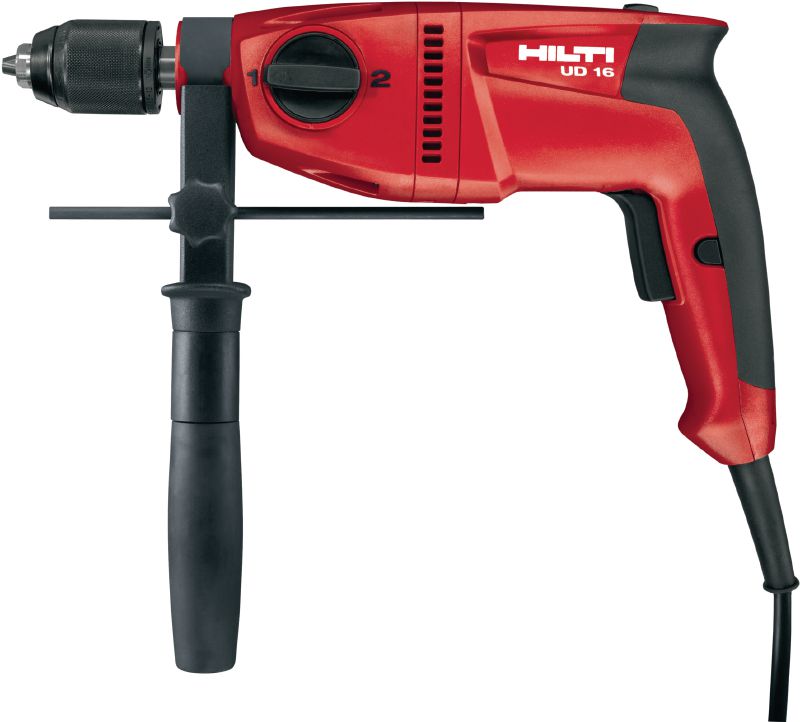

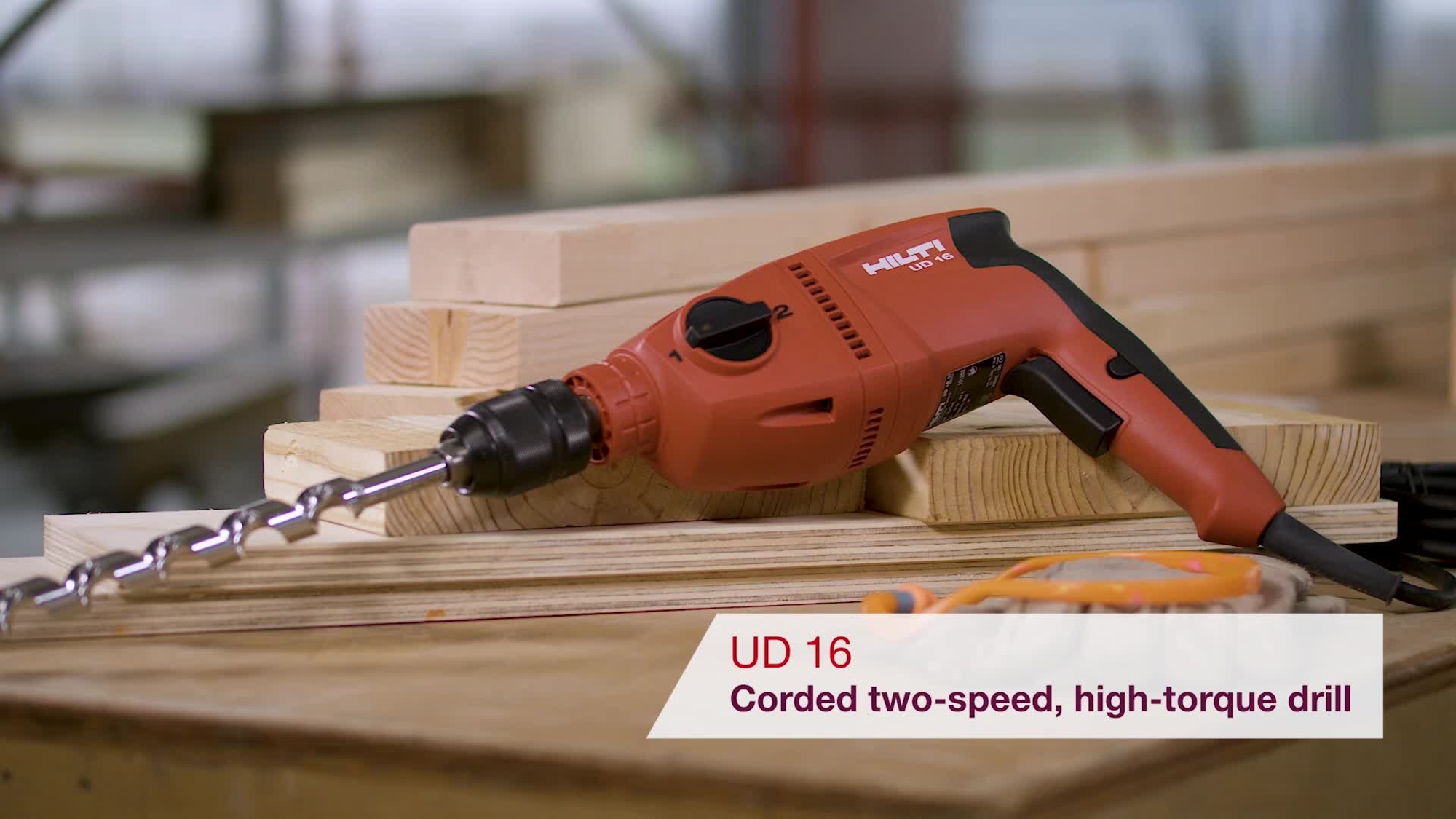

UD 16 Drill driver
Corded two-speed, high-torque drill driver for wood applications
- Chuck clamping range: 1/16 - 1/2 in
- No load RPM: gear 1: 900 rpm; gear 2: 2500 rpm
- Maximum torque (Soft / Hard Joint): 708 in-lb (soft joint)
Customers also searched for jacobs chuck , keyless chuck , electric drill , keyless drill chuck or three jaw chuck .
Technical Data
Chuck clamping range
1/16 - 1/2 in
No load RPM
gear 1: 900 rpm; gear 2: 2500 rpm
Maximum torque (Soft / Hard Joint)
708 in-lb (soft joint)
Number of gears
2
Dimensions (LxWxH)
13.5 x 3.4 x 8.1 in
Weight
5.73 lb
Triaxial vibration value for drilling into metal (ah,D)
2.5 m/s² 1
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Ergonomically designed pistol grip and low weight for maximum comfort during long periods of use
- Very reliable thanks to the extremely rugged casing and robust motor
- Stepless electronic speed control for smooth, gentle starting and screwdriving
- Features two gears – first gear for high torque, second gear for high speed
- Choice of keyless chuck with spindle lock or robust key chuck
Applications

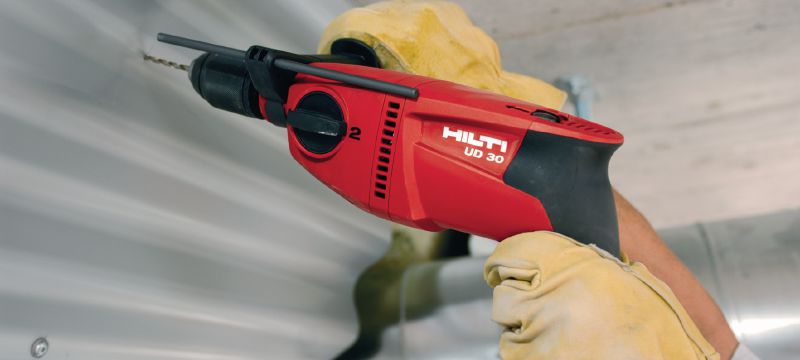

- Drilling in steel and sheet metal

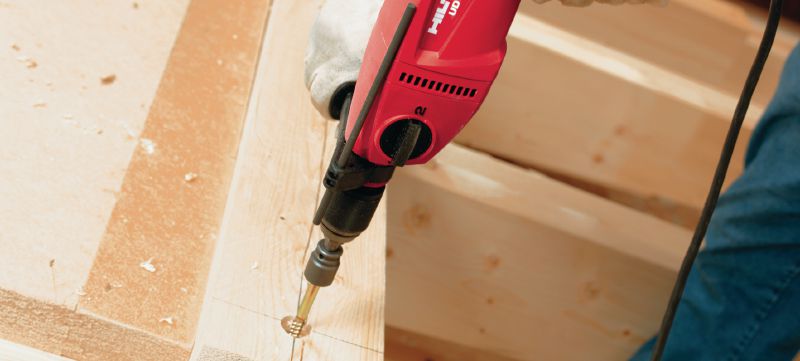

- Drilling in wood with auger bits, paddle bits and Forstner bits
- Various screwdriving jobs
- Use of hole saws (up to 68 mm dia.)
- Driving large-diameter wood screws
For approval or certificate information, please see individual items.
