TE 4-22 Cordless rotary hammer
Compact SDS Plus cordless rotary hammer with our best performance-to-weight ratio for overhead drilling (Nuron battery platform)
- Weight according EPTA-Procedure 01/2003 without battery: 5.4 lb
- Optimum Hammer drilling range: 5/32 - 9/16 in
- Single impact energy: 1.7 ft-lbs
Customers also searched for cordless rotary hammer, cordless hammer drill, concrete hammer drill, SDS Plus rotary hammer or Nuron battery platform.
Technical Data
Weight according EPTA-Procedure 01/2003 without battery
5.4 lb
Optimum Hammer drilling range
5/32 - 9/16 in
Single impact energy
1.7 ft-lbs
Hammer drilling diameter range
5/32 - 1-3/32 in
Hammer drilling RPM
1050 rpm
Full hammering frequency
5100 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Depth gauge, Hammer drilling, Integrated Dust Removal System (DRS), Reverse mode, Working light LED
A-weighted emission sound power level
98 dB (A) 1
A-weighted emission sound pressure level
90 dB (A) 2
Dust removal system available
TE DRS-4/6, TE DRS-C, TE DRS-D
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Compact but highly capable – the best balance of power-to-weight ratio, drilling speed and work per charge of any Hilti SDS Plus rotary hammer drill
- Faster drilling – finish your installation faster thanks to 20% more power from the new brushless motor and revolutionary Nuron batteries
- Improved comfort – reduced weight, redesigned grips, LED light and better balance make the TE 4-22 cordless rotary hammer especially easy to handle when drilling overhead
- Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrollable spinning if the bit sticks
- Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
Applications
- Drilling and hammer drilling in concrete and masonry
- Overhead drilling in concrete, such as for hanging pipes and conduits, MEP installations and suspended ceilings
- Virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)
- Setting anchors and drop-in anchors in concrete (with optional TE-C bit holder and setting tool)
- OSHA 1925.1153 Table 1 compliant, virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- Product warranty against parts and manufacturing irregularities for 20 years
- Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
- 1 or free, in and out of the repair center the same day or repair is free of charge
Fleet Management
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- High-performing tools and latest technology help to increase jobsite productivity.
- Loan tools during repair to reduce downtime.
- Temporary tools for peak times and special applications help to reduce investments.
- Theft coverage helps to reduce financial risk and unexpected expenses.
Related Products
Nuron
Versatile 22V Li-ion battery with optimal balance of weight, power and run time for use with Nuron power tools
Nuron
Ultimate 22V Li-ion battery built to boost the performance and run time of heavy-duty Nuron power tools
Nuron
Compact and light 22V Li-ion battery for light-duty tasks using Nuron power tools

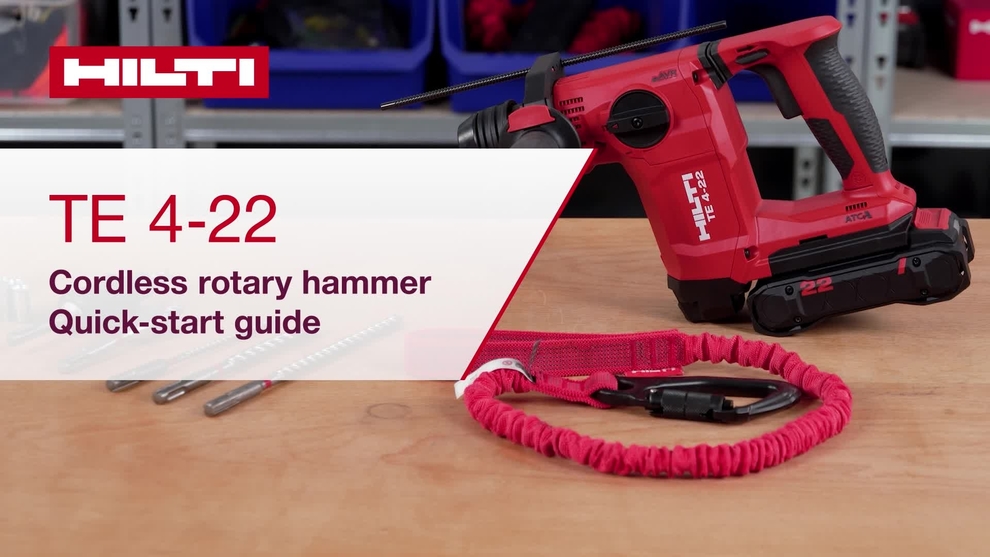

Product Videos
