PT-C Thermal camera

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services

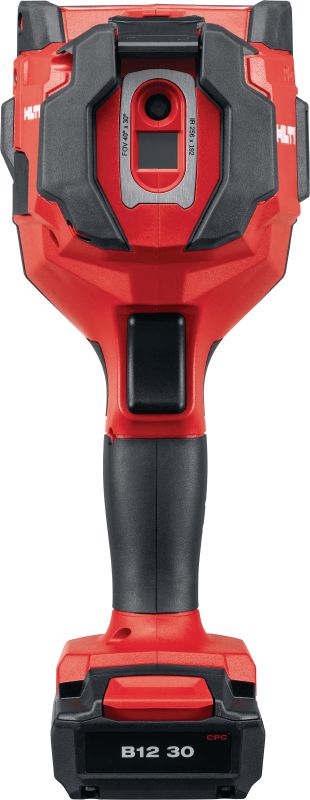

Still life picture of the thermal camara PT-C with the sensors open and battery B12-30

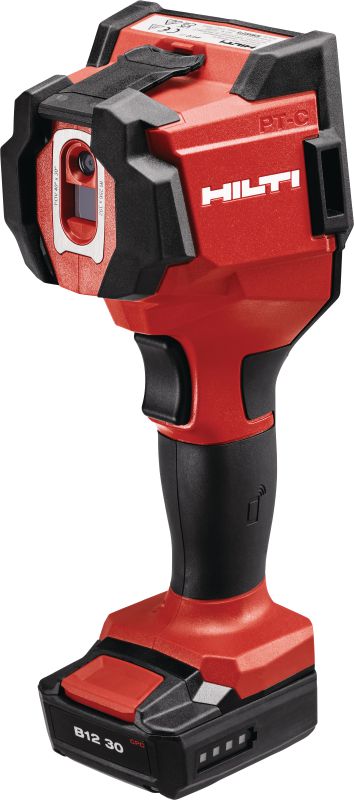

3D still life picture of the thermal camara PT-C with the sensors open and battery B12-30

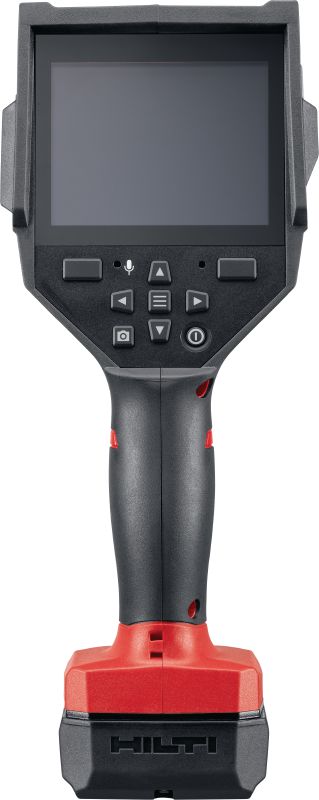

Still life picture of the frontal view of the thermal camara PT-C with battery B12-30

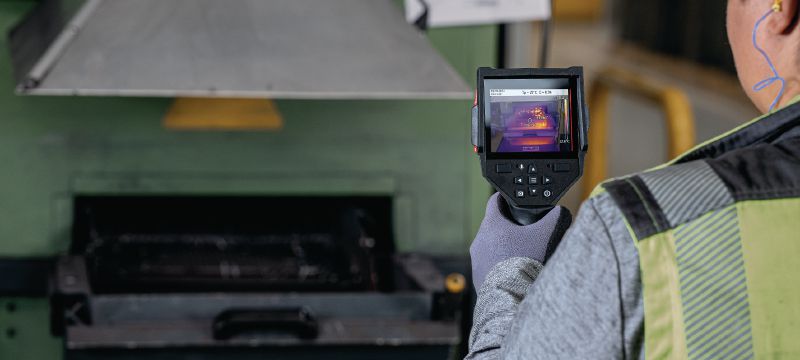

Cropped application picture of the PT-C thermal camara for checking thermal leaks on an industrial oven.

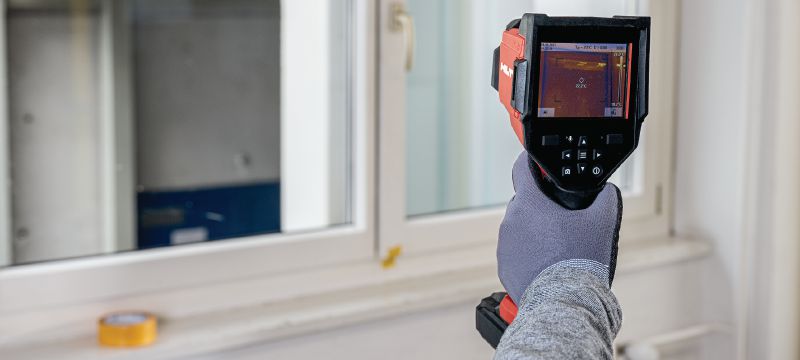

Cropped application picture of the PT-C thermal camara for detecting a thermal pane window leak.

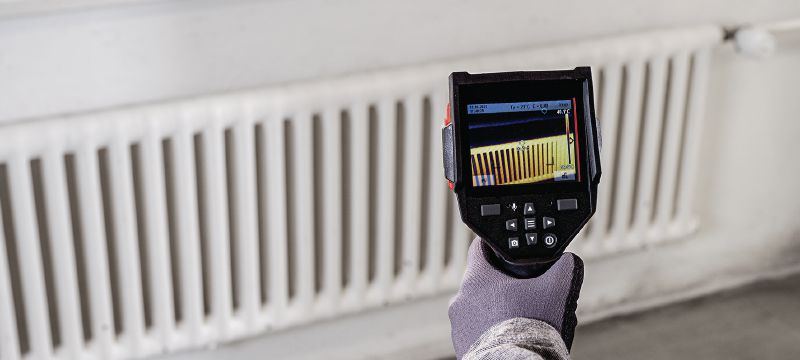

Application picture of the PT-C thermal camara for detecting thermal leaks on a radiator.

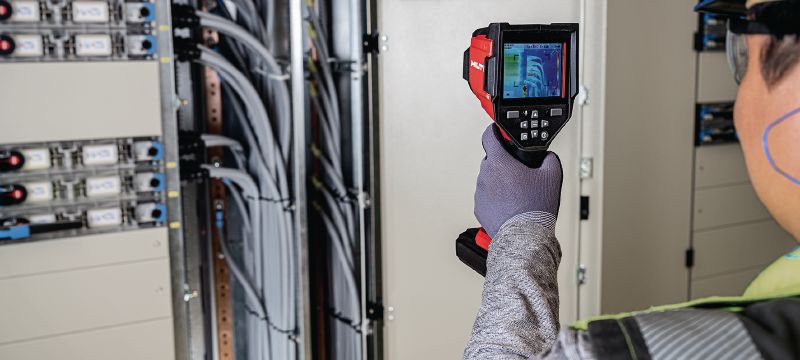

Cropped application picture of the PT-C thermal camara for inspecting electrical applications.

Infrared camera for thermal imaging, for inspecting electrical, mechanical, piping, and HVAC applications

  • Temperature - range: -4 °F - 1112 °F
  • Measuring accuracy: from -20 °C to -10 °C (-4 °F to 14 °F): +/- 4° C, from -10 °C to 100 °C (14 °F to 212 °F): +/- 2° C, from 100 °C to 600 °C (212 °F to 1112 °F): +/- 2 %
  • Temperature resolution: 0.1 °C

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $2,319.00

Technical Data

Temperature - range
-4 °F - 1112 °F
Measuring accuracy
from -20 °C to -10 °C (-4 °F to 14 °F): +/- 4° C, from -10 °C to 100 °C (14 °F to 212 °F): +/- 2° C, from 100 °C to 600 °C (212 °F to 1112 °F): +/- 2 %
Temperature resolution
0.1 °C
Operating temperature range
14 - 122 °F
Resolution, infrared sensor
256 x 192 pixels
Field of view (FOV)
40° x 30°
Battery lifetime
10 h
Max. number of images in internal image memory
600
IP protection class
IP 54 (IEC 529)
Display size, diagonal
3.5 in
Dimensions (LxWxH)
4.2 x 4.1 x 9.4 mm

Documents

Operating Instruction
Material safety datasheet
pdf Operating Instruction PT-C (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 21.1 MB ]
pdf Operating Instruction C4 12-50 POS3, English, Spanish, French, Portuguese [ 1.1 MB ]

Features & Applications

Features

  • High resolution – high resolution infrared (IR) camera offers matching infrared and optical picture and helps you accurately pinpoint thermal leaks or installation errors faster
  • Wide temperature range – thermal imaging from -20 °C up to 600 °C covers a wide range of applications you need (including temperature calibration certificate)
  • Save on service fees – conducting thermal self-checks can help you detect potentially costly repairs earlier and avoid fees for outsourced thermal services
  • Robust ergonomic design – comfortable lightweight design and drop resistant up to 1.5m
  • Easier documentation – transfer data via USB-C including, voice notes, infrared picture, and optical picture to help you quickly document your work

Applications

  • Electrical – checking temperature distributions in fuse boxes, electrical components, and cable connections for overloads or failures
  • Mechanical – checking heating pipes, radiators, floor heating, air conditioning systems, and pipes for errors and leaks
  • Energy and industrial infrastructure – checking steam installations for heat leakage, insulation damage, steam traps, tank levels, coolant pipes, and solar panels

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services

Fleet Management

  • High-performing tools and latest technology help to increase jobsite productivity.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
  • Free verification of tool accuracy in accordance with manufacturer’s specifications.
  • Loan tools during repair to reduce downtime.
  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
More information about Fleet Management
