CFS-T RRS Plug seals

Plug Seal
Plug Seal
Still life image of the adapters of the firestop cable transist system CFS-T RRS.

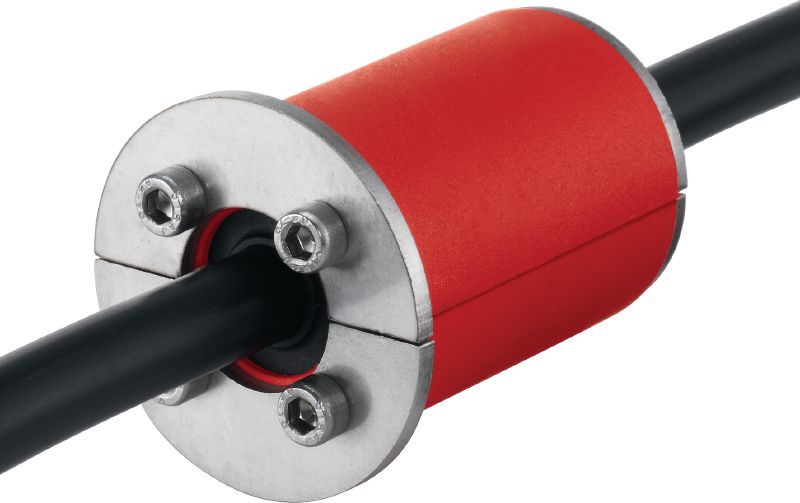

Still life image of the plug seal of the firestop cable transist system CFS-T RRS with core module.

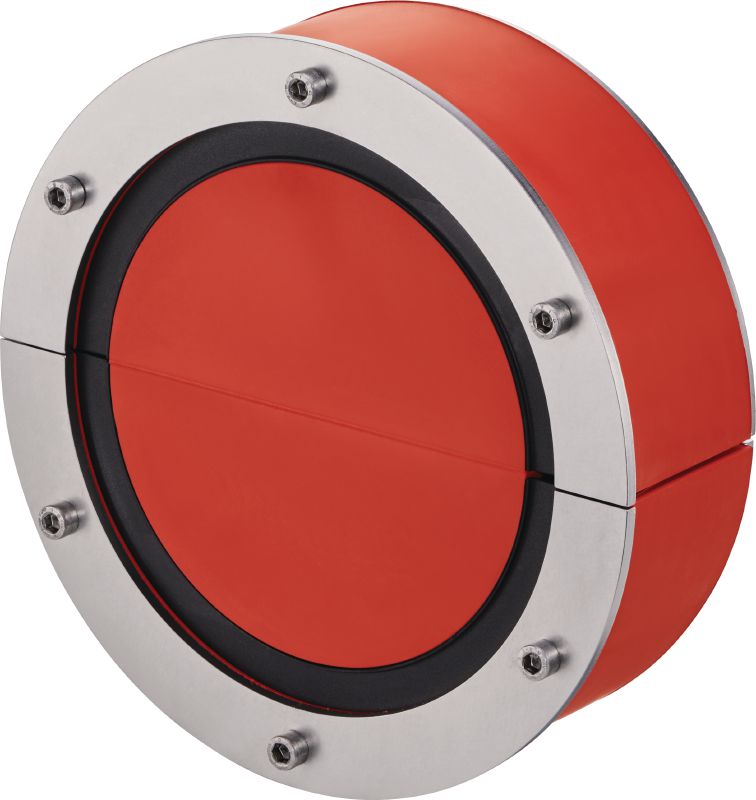

Still life image of the plug seal of the firestop cable transist system CFS-T RRS.

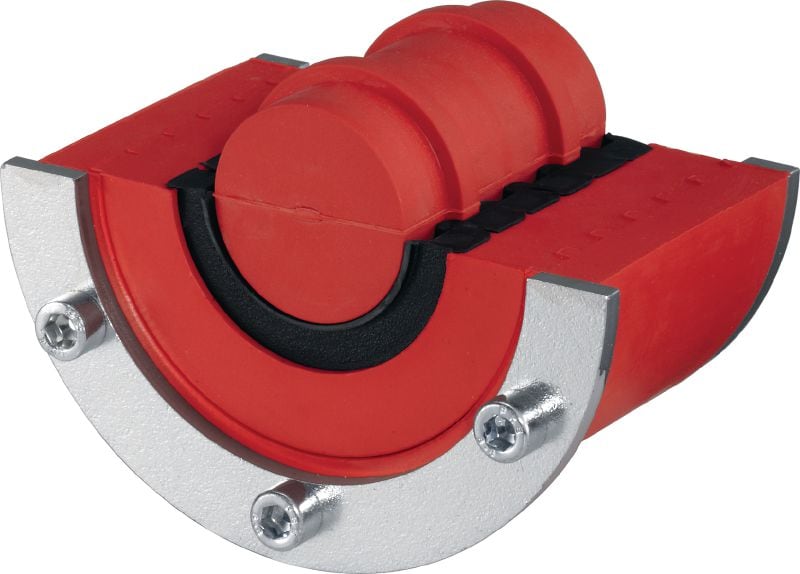

Still life image of the adapters of the firestop cable transist system CFS-T RRS.

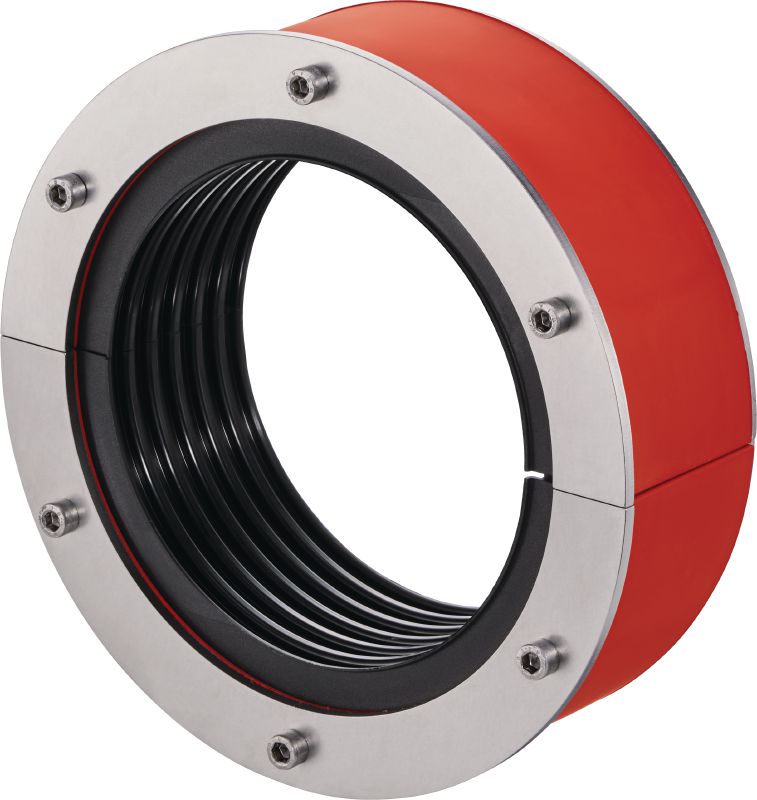

Plug Seal CFS-T RRS-100 (in concrete)

Water- and fire-resistant plug seal for sealing single cables/pipes in round penetrations, with up to 120 minutes of fire integrity

  • Temperature resistance range: -40 - 122 °F
  • Free from: Halogen (halogen content <= 0.1 weight %)
  • Reaction to fire class (EN 13501-1): E

Customers also searched for mass cable transit, cable transit, MCT, multi cable transit system or cable seal.

Choose options

Cable diameter - range
  • 5 - 23 mm
  • 13 - 33 mm
  • 23 - 78 mm
Base materials
  • Concrete, Steel
Diameter
  • 1-11/16 in
  • 1-31/32 in
  • 3-15/16 in
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
Price loading error occured

Please contact us

Technical Data

Temperature resistance range
-40 - 122 °F
Free from
Halogen (halogen content <= 0.1 weight %)
Reaction to fire class (EN 13501-1)
E

Documents

pdf Technical manual CFS-T W4529 0424 g, English [ 2.3 MB ]

Features & Applications

Features

  • Water resistant and IP 68 rated – for demanding applications
  • Safer installations and inspections – designed for easier installations, with a color-coding system for reduced errors and quicker inspections
  • Durable and longer-lasting – engineered for resistance to heat and chemical exposure, for higher performance and increased installation lifetimes
  • Multiple finishes – available in galvanized steel and stainless steel

Applications

  • Sealing round penetrations for applications such as energy transmission and distribution, oil and gas, infrastructure projects etc.
  • Fire resistant through-penetrations in accordance with UL 1479 (F:2h) and verified fire integrity and insulation for up to 120 minutes according to EN 1366-3

For approval or certificate information, please see individual items.
