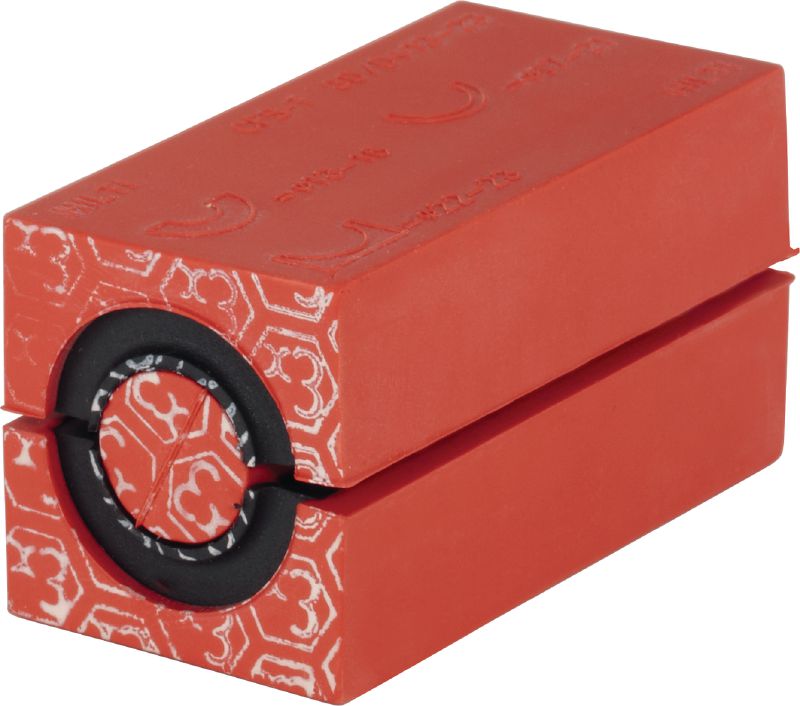

CFS-T EX cable modules

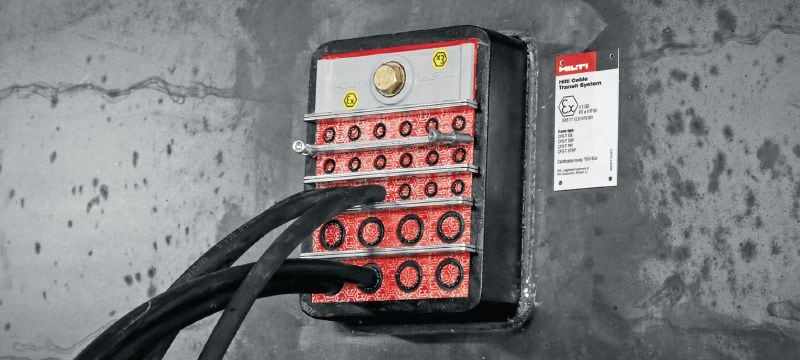

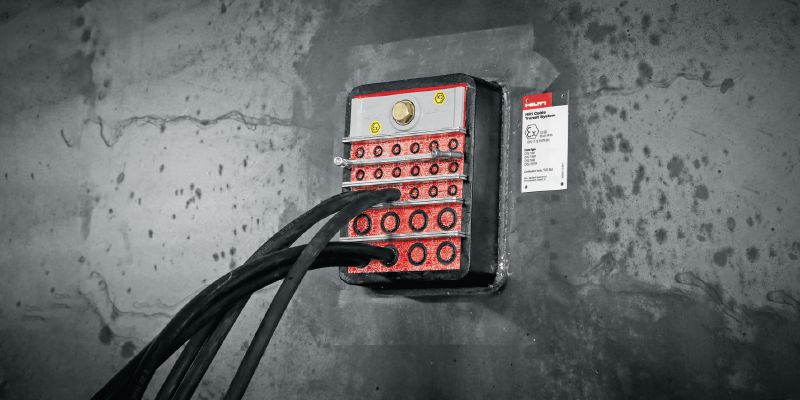

Modules to seal cables/pipes within transit frames in potentially explosive atmospheres
- Temperature resistance range: -40 - 167 °F
- Free from: Halogen (halogen content <= 0.1 weight %)
Customers also searched for mass cable transit, cable transit, MCT, multi cable transit system or cable seal.
Choose options
Cable diameter - range
- 3 - 9 mm
- 5 - 12 mm
- 13 - 23 mm
- 23 - 33 mm
- 34 - 51 mm
Module Height
- 15 mm
- 20 mm
- 30 mm
- 40 mm
- 60 mm
Base materials
- Concrete, Steel
Pack size
- 4 pc
- 9 pc
- 16 pc
- 36 pc
- 64 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $353.00
Technical Data
Temperature resistance range
-40 - 167 °F
Free from
Halogen (halogen content <= 0.1 weight %)
Documents
Features & Applications
Features
- Simplified inventory management – only 7 different modules are needed to cover all cable diameters from 3 to 99 mm
- Versatile adapter modules for quicker, easier accommodation of each cable diameter
- Time-saving installation thanks to module interlinking, especially where cables run vertically through deck/floor penetrations
- Color-coded adapter system to make inspection easier and more reliable

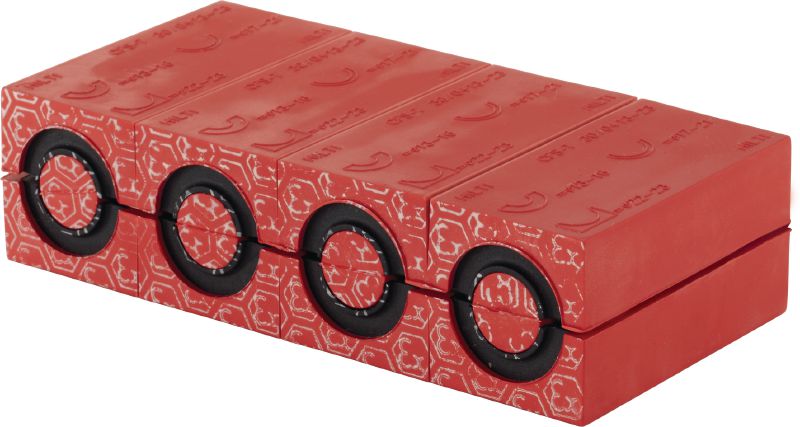

- Cable modules up to size 40 mm are supplied as one perforated block and can be easily separated for individual use.
Applications
- For use in potentially explosive atmospheres
- Industries affected by the ATEX directive, such as the petrochemical and chemical industries
- Oil and gas platforms which are not covered by the IMO resolution
For approval or certificate information, please see individual items.
