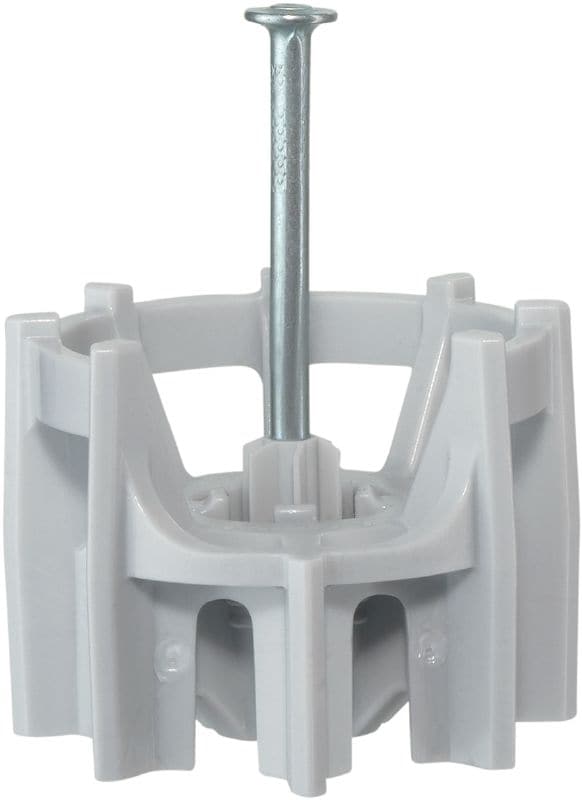

X-FS C Formwork spacer with nail
Formwork spacer with pre-mounted nail for positioning formwork on concrete footings
- Dimensions (LxWxH): 1.9 x 1.9 x 1.3 in
- Material: High-density polyethylene (HDPE), Halogen-free, Silicone-free
- Color: Light grey (RAL 7035)
premium
Customers also searched for concrete form wall aligment or powder actuated form stop.
Technical Data
Dimensions (LxWxH)
1.9 x 1.9 x 1.3 in
Material
High-density polyethylene (HDPE), Halogen-free, Silicone-free
Color
Light grey (RAL 7035)
Application
Formwork
Base materials
Concrete (soft), Concrete, Masonry (solid limestone brick)
Minimum thickness of base material (concrete)
80 mm
For use with (tools)
DX 2, DX 351, DX 460, DX 5, DX 6
Product Class
Premium
Features & Applications
Features

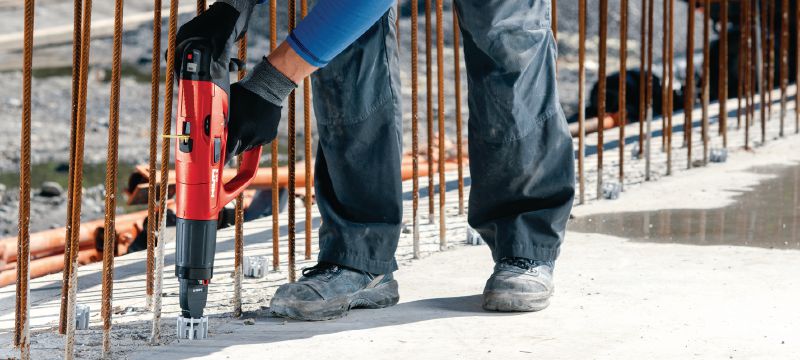

- Facilitates quick and easy positioning of formwork panels on concrete footings
- Designed for extremely high productivity – up to five times faster than traditional methods
- Easy to install – even on rough concrete surfaces
- Stronger bond with the concrete due to large openings
- Formwork spacers remain hardly visible or fully hidden in concrete after removing formwork
Applications

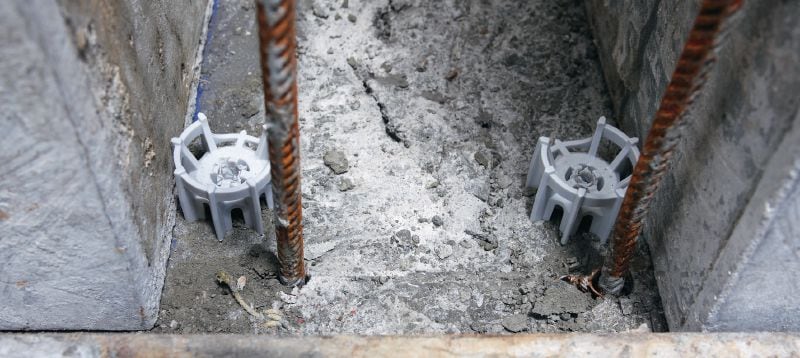

- Positioning formwork on concrete footings
For approval or certificate information, please see individual items.
