BX 3-A22 (02) Cordless fastening tool

L081760.tif
Second generation of battery actuated tool BX 3-A22 02 for drywall track fastening; 2.6Ah B22 battery; empty magazine; hook in parked position
Second generation of battery actuated tool BX 3-A22 02 for drywall track fastening; 3.0Ah B22 battery; empty magazine; hook in parked position
Construction worker using the Hilti Connect App with the BX 3 02 tool in the background
Second generation of battery actuated tool BX 3-A22 02, floor application, drywall tracks
Second generation of battery actuated tool BX 3-A22 02, ceiling application, drywall tracks, without support leg, HNA-Version
Application on steel base material with drywall tracks. Second generation of battery actuated tool BX 3-A22 02, without support leg, HNA-version
Application of BX 3 02 on water membrane, HNA-Version
L081760.tif
Second generation of battery actuated tool BX 3-A22 02 for drywall track fastening; 2.6Ah B22 battery; empty magazine; hook in parked position
Second generation of battery actuated tool BX 3-A22 02 for drywall track fastening; 3.0Ah B22 battery; empty magazine; hook in parked position
Construction worker using the Hilti Connect App with the BX 3 02 tool in the background
Second generation of battery actuated tool BX 3-A22 02, floor application, drywall tracks
Second generation of battery actuated tool BX 3-A22 02, ceiling application, drywall tracks, without support leg, HNA-Version
Application on steel base material with drywall tracks. Second generation of battery actuated tool BX 3-A22 02, without support leg, HNA-version
Application of BX 3 02 on water membrane, HNA-Version
Promo video for the BX 3-ME 02 and BX 3 02 "Make the Switch" campaign
Promo video for BX 3 02: short and dynamic video introducing key features and values of the BX 3 02 in a jobsite surrounding

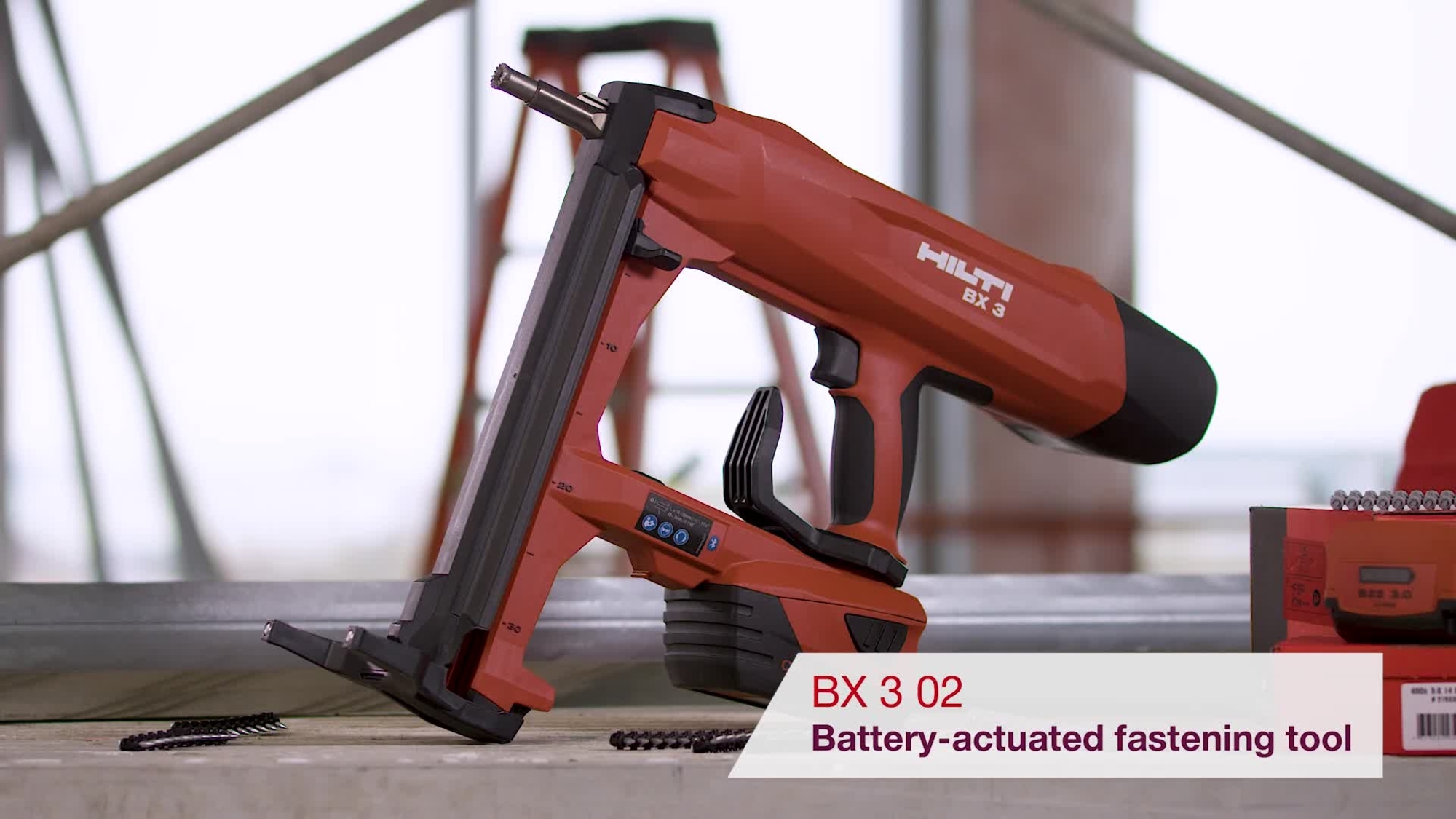

Product video of Hilti's battery actuated fastening tool BX 3 02

22V cordless nailer for interior finishing applications

  • Dimensions (LxWxH): 18.7 x 5.3 x 14.5 in
  • Tool body weight: 7.7 lb
  • Fastener Intake: Collated

Technical Data

Dimensions (LxWxH)
18.7 x 5.3 x 14.5 in
Tool body weight
7.7 lb
Fastener Intake
Collated
Fastener length range
0.55 - 1.18 in
Bluetooth
Yes
Power source type
22 V battery platform
Rated voltage
21.6 V

Features & Applications

Features

  • Second generation of Hilti’s combustion-free direct fastening technology – for high-quality, reliable fastening on concrete, steel and concrete masonry units (CMU)
  • Combustion-free operation – no gas cans or powder cartridges to store and dispose of
  • Drives up to 800/500/400 fasteners with a single battery charge (depending on B22 battery model - 5.2 Ah, 3.0 Ah or 2.6 Ah)
  • Magazine capacity of 30 nails
  • Engineered for high productivity – fastening rate of 1.3 nails per second

Applications

  • Fastening drywall track to floors, walls and ceilings on concrete, solid masonry or steel
  • Fastening mesh, membranes or foil with special washer holders to concrete walls
  • Fastening wall tie connections to concrete, solid masonry or steel – use of the special washer holder is recommended
  • Suitable for various light-duty fastening applications on concrete, solid masonry or steel
  • Fastening cables, conduits or various light electrical installations – use of the ME nailer nose is recommended

For approval or certificate information, please see individual items.

Services

Service icon for Bbundles

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management

LifeTime Services

  • 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
More information about LifeTime Services
