HIT-HY 200-A V3 / HIT-HY 200-R V3

Original Operating Instruction

Information about the documentation

About this documentation

  • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product.
  • Observe the safety instructions and warnings in this documentation and on the product.
  • Always keep the operating instructions with the product and make sure that the operating instructions are with the product when it is given to other persons.

Product selection

Procedure

Use arrows Image alternative to make a selection or obtain more information.
This online manual is updated and improved frequently. Any suggestion or feedback? Please share it with us at instructions@hilti.com
(Version: 2021-12-17)

Safety

Safe Handling

WARNING
Eye contact with the mortar can cause permanent eye damage! In case of improper handling, splashing of the mortar is possible.
  • Always wear safety glasses, gloves and protective clothes during installation.
  • Never start dispensing without a mixer properly screwed on.
  • When using an extension hose: Discard mortar flow only through the supplied mixer (not through the extension hose).
  • Attach a new mixer prior to dispensing a new foil pack (ensure snug fit).
  • Use only the type of mixer supplied with the adhesive. Do not modify the mixer in any way.
  • Never use damaged foil packs and/or damaged or unclean foil pack holders (cassettes).
WARNING
Poor load values / potential failure of fastening points due to air entrapment. Ensure that boreholes are filled from the back of the borehole without forming air voids.
  • If necessary use the accessories / extensions to reach the back of the borehole.
  • For horizontal and upwardly inclined installation applications use the horizontal and upwardly inclined installation accessories HIT-SZ and take special care when inserting the fastening element. Excess adhesive may be forced out of the borehole. Make sure that no mortar drips onto the installer.
  • In water saturated concrete it is required to set the anchor immediately after cleaning the borehole.
WARNING
Poor load values / potential failure of fastening points due to inadequate borehole cleaning. The boreholes must be free of debris, dust, water, ice, oil, grease and other contaminants prior to adhesive injection.
  • Hilti hollow drill bits TE-CD, TE-YD must be used in conjunction with a properly maintained Hilti vacuum cleaner with model and suction capacity (volumetric flow rate) as specified in the accessory table.
  • For blowing out the borehole – blow out with oil free air until return air stream is free of noticeable dust.
  • For flushing the borehole – flush with water line pressure until water runs clear.
  • For brushing the borehole – only use specified wire brush. The brush must resist insertion into the borehole – if not the brush is too small and must be replaced.
  • Important! Remove all water from the borehole and blow out with oil free compressed air until borehole is completely dried before mortar injection.
  • Do not exceed the roughening time when roughening the drilled hole!
WARNING
Not adhering to these setting instructions can result in failure of fastening points!
  • Observe these installation instructions.
Special instructions for the use of HIT-Z:
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.

Basic Information

Intended Use

Adhesive anchoring system for rebar and anchor fastenings in concrete.

Symbols on the Product

Symbols
Image alternative Attention!
Image alternative Wear eye protection
Image alternative Very toxic to aquatic life with long lasting effects!
Image alternative Wear protective gloves
Image alternative Read instructions
Image alternative Wear protective clothing

Ingredients

Contains hydroxypropylmethacrylate: May cause an allergic skin reaction.
Contains 1,4 Butandiol-dimethacrylat: May cause an allergic skin reaction.
Contains dibenzoyl peroxide: May cause an allergic skin reaction. Causes serious eye irritation. Very toxic to aquatic life with long lasting effects.
Contains 2,2‘-(m-tolylimino)diethanol: May cause an allergic skin reaction.

Disposal considerations

Empty packs: Leave the mixer attached and dispose of via the local Green Dot recovery system or EAK waste material code: 150102 plastic packaging
Full or partially emptied packs: Must be disposed of as special waste in accordance with official regulations. EAK waste material code: 08 04 09* waste adhesives and sealants containing organic solvents or other dangerous substances. or EAK waste material code: 20 01 27* paint, inks, adhesives and resins containing dangerous substances.

Product information

Failure to observe these installation instructions, use of non-Hilti anchors, poor or questionable concrete conditions, or unique applications may affect the reliability or performance of the fastenings.
  • Always keep these instructions together with the product even when given to other persons.
  • Only pass the product on to other persons together with the instructions for use.
  • Safety Data Sheet: Review the Safety Data Sheet before use.
  • Check expiration date: See imprint on foil pack manifold (month/year). Do not use expired product.
  • For any application not covered by this document / beyond values specified, please contact Hilti .
  • Partly used foil packs must remain in the cassette and has to be used within 4 weeks. Leave the mixer attached on the foil pack manifold and store within the cassette under the recommended storage conditions. If reused, attach a new mixer and discard the initial quantity of anchor adhesive.

Safety Notes

  • Personal protective equipment → Wear protective gloves, protective clothing, eye protection, face protection.
  • Do not get in eyes, on skin or on clothing.
  • IF ON SKIN: Wash with plenty of soap and water.
  • IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.
  • If skin irritation or rash occurs: Get medical advice/attention.
  • If eye irritation persists: Get medical advice/attention.
  • In order to obtain a safe application, be sure to observe the specifications and instructions regarding the drill hole, base material, cleaning and installation. You will find these in detailed form on the Internet .

Product page and Print

On the product page you will find more information about HIT-HY 200-R V3, HIT-HY 200-A V3, as well as the printed version of these instructions.

_______________________________________________________________________________________________________________________________________

Product Selection

Select the Parameters

HIT-HY 200-A V3 - Base material

Image alternative
→ cracked and uncracked Concrete
Image alternative
→ Grout-filled CMU
Image alternative

HIT-HY 200-A V3 - Concrete

Select Anchor HIT-HY 200-A V3 - Concrete
Image alternative
→ HIT-Z
________________________________________________________
Image alternative
→ HIT-V / HAS / HAS-U / HAS-E
________________________________________________________
Image alternative
→ HIS-N
________________________________________________________
Image alternative
→ Rebar
Image alternative

Image alternative

HIT-HY 200-A V3 - Grout-filled CMU

Select Anchor HIT-HY 200-A V3 - CMU
Image alternative
→ HIT-Z
________________________________________________________
Image alternative
→ HIT-V / HAS / HAS-U / HAS-E
________________________________________________________
Image alternative
→ HIS-N
________________________________________________________
Image alternative
→ Rebar
Image alternative

Image alternative

Select Anchor HIT-HY 200-A V3 - Concrete

Image alternative
→ HIT-Z
________________________________________________________
Image alternative
→ HIT-V / HAS / HAS-U / HAS-E
________________________________________________________
Image alternative
→ HIS-N
________________________________________________________
Image alternative
→ Rebar
Image alternative

Select Anchor HIT-HY 200-A V3 - CMU

Image alternative
→ HIT-Z
________________________________________________________
Image alternative
→ HIT-V / HAS / HAS-U / HAS-E
________________________________________________________
Image alternative
→ HIS-N
________________________________________________________
Image alternative
→ Rebar
Image alternative

HIT-Z - HIT-HY 200-A V3 - Concrete

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative

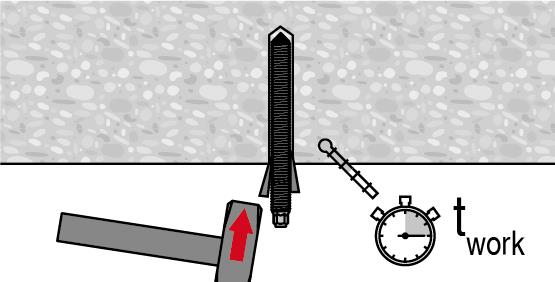

→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

HIT-Z - HIT-HY 200-A V3 - CMU

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative
→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

HIT-V / HAS-U - HIT-HY 200-A V3 - Concrete

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative
→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

HIT-V / HAS-U - HIT-HY 200-A V3 - CMU

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative
→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

HIS-N - HIT-HY 200-A V3 - Concrete

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative
→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

HIS-N - HIT-HY 200-A V3 - CMU

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative
→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

Rebar - HIT-HY 200-A V3 - Concrete

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative
→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

Rebar - HIT-HY 200-A V3 - CMU

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative
→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

HIT-Z - floor and downwardly inclined installation - HIT-HY 200-A V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-Z - floor and downwardly inclined installation - HIT-HY 200-A V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-V / HAS-U - floor and downwardly inclined installation - HIT-HY 200-A V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-V / HAS-U - floor and downwardly inclined installation - HIT-HY 200-A V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - HIT-HY 200-A V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - HIT-HY 200-A V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - HIT-HY 200-A V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - HIT-HY 200-A V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-Z - horizontal and upwardly inclined installation - HIT-HY 200-A V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-Z - horizontal and upwardly inclined installation - HIT-HY 200-A V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-V / HAS-U - horizontal and upwardly inclined installation - HIT-HY 200-A V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-V / HAS-U - horizontal and upwardly inclined installation - HIT-HY 200-A V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - HIT-HY 200-A V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - HIT-HY 200-A V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

Rebar - horizontal and upwardly inclined installation - HIT-HY 200-A V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

Rebar - horizontal and upwardly inclined installation - HIT-HY 200-A V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIS-N - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIS-N - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIS-N - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ back to product selection
Image alternative

HIS-N - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - CMU

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIS-N - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIS-N - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-R V3 - CMU

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIS-N - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIS-N - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - CMU

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIS-N - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIS-N - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-R V3 - CMU

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIS-N / HIS-RN / Diamond core bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN / Diamond core bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIS-N / HIS-RN [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
Transport and Storage Temperature
Keep in a cool, dry and dark place!
5 ℃ … 25 ℃
(41 ℉ … 77 ℉)
Foil pack temperature during usage
0 ℃ … 40 ℃
(32 ℉ … 104 ℉)
Base material temperature at time of installation
−10 ℃ … 40 ℃
(14 ℉ … 104 ℉)
→ return to previous page with "back"-function of your browser
Image alternative
→Auxiliary Means
→Auxiliary Means [imperial units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - CMU

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-R V3 - CMU

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - CMU

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-R V3 - CMU

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS- horizontal and upwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - floor and downwardly inclined installation - Diamond Core Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <220 mm [<8 1/2 inch]
→ back to product selection
Image alternative

HIT-Z - floor and downwardly inclined installation - Diamond Core Drill - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <220 mm [<8 1/2 inch]
→ back to product selection
Image alternative

HIT-Z - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <220 mm [<8 1/2 inch]
→ back to product selection
Image alternative

HIT-Z - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <220 mm [<8 1/2 inch]
→ back to product selection
Image alternative

HIT-Z - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - CMU

→ Embedment Depth <220 mm [<8 1/2 inch]
→ back to product selection
Image alternative

HIT-Z - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-R V3 - CMU

→ Embedment Depth <220 mm [<8 1/2 inch]
→ back to product selection
Image alternative

HIT-Z - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <220 mm [<8 1/2 inch]
→ back to product selection
Image alternative

HIT-Z - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - CMU

→ Embedment Depth <220 mm [<8 1/2 inch]
→ back to product selection
Image alternative

HIT-Z - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <220 mm [<8 1/2 inch]
→ back to product selection
Image alternative

HIT-Z - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-R V3 - CMU

→ Embedment Depth <220 mm [<8 1/2 inch]
→ back to product selection
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Diamond Core Drill - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Diamond core drill
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-A V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Diamond Core Drill - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Diamond core drill
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-R V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-A V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]
→Curing Times HIT-Z / HIT-HY 200-A V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-R V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]
→Curing Times HIT-Z / HIT-HY 200-R V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-A V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]
→Curing Times HIT-Z / HIT-HY 200-A V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-R V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]
→Curing Times HIT-Z / HIT-HY 200-R V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - CMU

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-R V3 - CMU

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - CMU

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-R V3 - CMU

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - horizontal and upwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation - Water filled borehole in concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V - floor and downwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Prepration of installation - water filled borehole in Concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V - floor and downwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation - Water filled borehole in concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V - floor and downwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Prepration of installation - water filled borehole in Concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - Concrete

Image alternative
→ Dry / Water saturated borehole
Image alternative
→ Water filled borehole
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - Concrete

Image alternative
→ Dry / Water saturated borehole
Image alternative
→ Water filled borehole
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-R V3- Concrete

Image alternative
→ Dry / Water saturated borehole
Image alternative
→ Water filled borehole
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-R V3 - Concrete

Image alternative
→ Dry / Water saturated borehole
Image alternative
→ Water filled borehole
→ back to product selection
Image alternative

Rebar- floor and downwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in concrete
  • Embedment Depth <250 mm [<10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation - Water filled borehole in concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in concrete
  • Embedment Depth <250 mm [<10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Prepration of installation - water filled borehole in Concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - Concrete

Image alternative
→ Dry / Water saturated borehole
Image alternative
→ Water filled borehole
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - Concrete

Image alternative
→ Dry / Water saturated borehole
Image alternative
→ Water filled borehole
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-R V3- Concrete

Image alternative
→ Dry / Water saturated borehole
Image alternative
→ Water filled borehole
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-R V3 - Concrete

Image alternative
→ Dry / Water saturated borehole
Image alternative
→ Water filled borehole
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in concrete
  • Embedment Depth <250 mm [<10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation - Water filled borehole in concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - Concrete [imperial units]
→Rebar CA [imperial units]
→Rebar [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - Concrete [imperial units]
→Rebar CA [imperial units]
→Rebar [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in concrete
  • Embedment Depth <250 mm [<10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Prepration of installation - water filled borehole in Concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-R V3- Concrete

Image alternative
→ Dry / Water saturated borehole
Image alternative
→ Water filled borehole
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-R V3 - Concrete

Image alternative
→ Dry / Water saturated borehole
Image alternative
→ Water filled borehole
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - Concrete

Image alternative
→ Dry / Water saturated borehole
Image alternative
→ Water filled borehole
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - Concrete

Image alternative
→ Dry / Water saturated borehole
Image alternative
→ Water filled borehole
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation - Water filled borehole in concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V - floor and downwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Prepration of installation - water filled borehole in Concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V - floor and downwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation - Water filled borehole in concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V - floor and downwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Prepration of installation - water filled borehole in Concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar- floor and downwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation - Water filled borehole in concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Prepration of installation - water filled borehole in Concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation - Water filled borehole in concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - Concrete [imperial units]
→Rebar CA [imperial units]
→Rebar [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - Concrete [imperial units]
→Rebar CA [imperial units]
→Rebar [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - Concrete - Water filled borehole

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Water filled borehole in Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Prepration of installation - water filled borehole in Concrete
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-A V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-V - floor and downwardly inclined installation - Hammer Drill - HIT-HY 200-R V3 - Concrete

→ Embedment Depth <250 mm [<10 inch]
→ Embedment Depth ≥250 mm [≥10 inch]
→ back to product selection
Image alternative

HIT-HY 200-R V3 - Base material

Image alternative
→ Cracked and uncracked Concrete
Image alternative
→ Grout-filled CMU
Image alternative

HIT-HY 200-R V3 - Concrete

Select Anchor HIT-HY 200-R V3 - Concrete
Image alternative
→ HIT-Z
________________________________________________________
Image alternative
→ HIT-V / HAS / HAS-U / HAS-E
________________________________________________________
Image alternative
→ HIS-N
________________________________________________________
Image alternative
→ Rebar
Image alternative

Image alternative

HIT-HY 200-R V3 - Grout-filled CMU

Select Anchor HIT-HY 200-R V3 - CMU
Image alternative
→ HIT-Z
________________________________________________________
Image alternative
→ HIT-V / HAS / HAS-U / HAS-E
________________________________________________________
Image alternative
→ HIS-N
________________________________________________________
Image alternative
→ Rebar
Image alternative

Image alternative

Select Anchor HIT-HY 200-R V3 - Concrete

Image alternative
→ HIT-Z
________________________________________________________
Image alternative
→ HIT-V / HAS / HAS-U / HAS-E
________________________________________________________
Image alternative
→ HIS-N
________________________________________________________
Image alternative
→ Rebar
Image alternative

Select Anchor HIT-HY 200-R V3 - CMU

Image alternative
→ HIT-Z
________________________________________________________
Image alternative
→ HIT-V / HAS / HAS-U / HAS-E
________________________________________________________
Image alternative
→ HIS-N
________________________________________________________
Image alternative
→ Rebar
Image alternative

HIT-Z - HIT-HY 200-R V3 - Concrete

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative
→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

HIT-Z - HIT-HY 200-R V3 - CMU

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative
→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

HIT-V / HAS-U - HIT-HY 200-R V3 - Concrete

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative
→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

HIT-V / HAS-U - HIT-HY 200-R V3 - CMU

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative
→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

HIS-N - HIT-HY 200-R V3 - Concrete

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative
→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

HIS-N - HIT-HY 200-R V3 - CMU

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative
→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

Rebar - HIT-HY 200-R V3 - Concrete

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative
→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

Rebar - HIT-HY 200-R V3 - CMU

Image alternative
→ floor and downwardly inclined installation
________________________________________________________
Image alternative
→ horizontal and upwardly inclined installation
________________________________________________________
→ back to product selection
Image alternative

HIT-Z - floor and downwardly inclined installation - HIT-HY 200-R V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-Z - floor and downwardly inclined installation - HIT-HY 200-R V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-V / HAS-U - floor and downwardly inclined installation - HIT-HY 200-R V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-V / HAS-U - floor and downwardly inclined installation - HIT-HY 200-R V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - HIT-HY 200-R V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - HIT-HY 200-R V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - HIT-HY 200-R V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

Rebar - floor and downwardly inclined installation - HIT-HY 200-R V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-Z - horizontal and upwardly inclined installation - HIT-HY 200-R V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-Z - horizontal and upwardly inclined installation - HIT-HY 200-R V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-V / HAS-U - horizontal and upwardly inclined installation - HIT-HY 200-R V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-V / HAS-U - horizontal and upwardly inclined installation - HIT-HY 200-R V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - HIT-HY 200-R V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - HIT-HY 200-R V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

Rebar - horizontal and upwardly inclined installation - HIT-HY 200-R V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

Rebar - horizontal and upwardly inclined installation - HIT-HY 200-R V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

Applications

HIT-Z

HIT-Z - horizontal and upwardly inclined installation - Diamond Core Drill - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Diamond core drill
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-A V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Diamond Core Drill - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Diamond core drill
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-R V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-A V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]
→Curing Times HIT-Z / HIT-HY 200-A V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-R V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]
→Curing Times HIT-Z / HIT-HY 200-R V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-A V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]
→Curing Times HIT-Z / HIT-HY 200-A V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-R V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIT-Z
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]
→Curing Times HIT-Z / HIT-HY 200-R V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - horizontal and upwardly inclined installation - HIT-HY 200-A V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-Z - horizontal and upwardly inclined installation - HIT-HY 200-A V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-Z - horizontal and upwardly inclined installation - HIT-HY 200-R V3 - Concrete

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Diamond coring
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-Z - horizontal and upwardly inclined installation - HIT-HY 200-R V3 - CMU

Image alternative
→ Hammer drilling
________________________________________________________
Image alternative
→ Hollow drilling
________________________________________________________
→ back to product selection
Image alternative

HIT-Z - floor and downwardly inclined installation - Diamond Core Drill - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • floor and downwardly inclined installation
  • Diamond core drill
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-A V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - floor and downwardly inclined installation - Diamond Core Drill - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • floor and downwardly inclined installation
  • Diamond core drill
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-R V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - floor and downwardly inclined installation - Hammer Drill Bit - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-A V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - floor and downwardly inclined installation - Hammer Drill Bit - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]
→Curing Times HIT-Z / HIT-HY 200-A V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - floor and downwardly inclined installation - Hammer Drill Bit - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-R V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - floor and downwardly inclined installation - Hammer Drill Bit - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]
→Curing Times HIT-Z / HIT-HY 200-R V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - floor and downwardly inclined installation - Hollow Drill Bit - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-A V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - floor and downwardly inclined installation - Hollow Drill Bit - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIT-Z
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]
→Curing Times HIT-Z / HIT-HY 200-A V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - floor and downwardly inclined installation - Hollow Drill Bit - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-Z
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - Concrete [imperial units]
→HIT-Z / HIT-Z-R [metric units]
→Curing Times HIT-Z / HIT-HY 200-R V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-Z - floor and downwardly inclined installation - Hollow Drill Bit - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIT-Z
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
  • The thread must remain free of dirt and dust during the installation process. The cones must be fully embedded in the mortar.
  • Regardless of the application and mounting type, torque must always be applied on nut and washer over a solid base plate resting on concrete.
→Temperatures HIT-Z
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling Pre-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Hole Drilling Through-Fastening
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-Z / HIT-Z-R - CMU [imperial units]
→Curing Times HIT-Z / HIT-HY 200-R V3

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS- horizontal and upwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]
→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hammer Drill Bit - Concrete - Embedment Depth ≥250 mm [10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hammer Drill Bit - CMU - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hammer Drill Bit - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hammer Drill Bit - CMU - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hammer Drill Bit - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hammer Drill Bit - CMU - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hammer Drill Bit - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hammer Drill Bit - CMU - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hollow Drill Bit - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hollow Drill Bit - CMU - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hollow Drill Bit - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hollow Drill Bit - CMU - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hollow Drill Bit - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hollow Drill Bit - CMU - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hollow Drill Bit - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→HIT-V / HAS-U / HAS-E / HAS [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIT-V / HAS-U / HAS-E / HAS - floor and downwardly inclined installation - Hollow Drill Bit - CMU - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIT-V / HAS-U / HAS-E / HAS
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the anchor is for information only. To ensure proper installation of the anchor, read the associated instructions!
  • The surface of the anchor rod must not be modified.
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIT-V / HAS-U / HAS-E / HAS [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIS-N / HIS-RN / Diamond core bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN / Diamond core bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIS-N / HIS-RN [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
Transport and Storage Temperature
Keep in a cool, dry and dark place!
5 ℃ … 25 ℃
(41 ℉ … 77 ℉)
Foil pack temperature during usage
0 ℃ … 40 ℃
(32 ℉ … 104 ℉)
Base material temperature at time of installation
−10 ℃ … 40 ℃
(14 ℉ … 104 ℉)
→ return to previous page with "back"-function of your browser
Image alternative
→Auxiliary Means
→Auxiliary Means [imperial units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN / Diamond core bit [metric units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN / Diamond core bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN / Diamond core bit [metric units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN / Diamond core bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN / Diamond core bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN / Diamond core bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN / Diamond core bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN / Diamond core bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hammer Drill Bit - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hammer Drill Bit - CMU - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hammer Drill Bit - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hammer Drill Bit - CMU - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hammer Drill Bit - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hammer Drill Bit - CMU - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hammer Drill Bit - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hammer Drill Bit - CMU - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hollow Drill Bit - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hollow Drill Bit - CMU - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hollow Drill Bit - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hollow Drill Bit - CMU - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hollow Drill Bit - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hollow Drill Bit - CMU - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hollow Drill Bit - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→HIS-N / HIS-RN [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

HIS-N / HIS-RN - floor and downwardly inclined installation - Hollow Drill Bit - CMU - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • HIS-N / HIS-RN
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
WARNING
Professional installation of the anchor!
  • The installation instructions are binding for the application of the mortar.
  • The installation instructions for the mortar is for information only. To ensure proper installation of the anchor, read the associated instructions!
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→HIS-N / HIS-RN [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar

Rebar - horizontal and upwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Diamond Core Drill with roughening Tool - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hammer Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-A V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - Concrete

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - horizontal and upwardly inclined installation - Hollow Drill Bit - HIT-HY 200-R V3 - CMU

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • Rebar
  • horizontal and upwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
→Temperatures (excl. HIT-Z)
→Auxiliary Means
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]

Perform Installation - Embedment Depth <250 mm [<10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Diamond Core Drill with roughening Tool - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Diamond coring with roughening with Hilti roughening tool TE-YRT
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of Installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Roughening Time
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]

Perform Installation - Embedment Depth <250 mm [<10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Diamond core bit [imperial units]
→Rebar US - Concrete / Diamond core bit [imperial units]
→Rebar / Diamond core bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill Bit - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative View video of application zur Anwendung.

  • Rebar
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill Bit - CMU - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill Bit - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative View video of application zur Anwendung.

  • Rebar
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill Bit - CMU - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative

  • Rebar
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill Bit - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill Bit - CMU - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill Bit - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA [imperial units]
→Rebar US - Concrete [imperial units]
→Rebar [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hammer Drill Bit - CMU - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hammer Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Preparation of installation
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform installation
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill Bit - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill Bit - CMU - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill Bit - Concrete - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill Bit - CMU - Embedment Depth ≥250 mm [≥10 inch]

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth ≥250 mm [≥10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform Installation - Embedment Depth ≥250 mm [≥10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill Bit - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]

Perform Installation - Embedment Depth <250 mm [<10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill Bit - CMU - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform Installation - Embedment Depth <250 mm [<10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill Bit - Concrete - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • Cracked Concrete
    Uncracked Concrete
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]

Perform Installation - Embedment Depth <250 mm [<10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar CA / Hollow drill bit [imperial units]
→Rebar US - Concrete / Hollow drill bit [imperial units]
→Rebar / Hollow drill bit [metric units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Rebar - floor and downwardly inclined installation - Hollow Drill Bit - CMU - Embedment Depth <250 mm [<10 inch]

Image alternative
Application
Image alternative Image alternative Image alternative
Image alternative
Image alternative
  • Rebar
  • floor and downwardly inclined installation
  • Hollow Drill Bit
  • CMU
  • Dry Concrete
    Water Saturated Concrete
  • Embedment Depth <250 mm [<10 inch]
→Temperatures (excl. HIT-Z)
→Auxiliary Means Embedment Depth <250 mm [<10 inch]
→Auxiliary Means [imperial units]
→Auxiliary Means [metric units]
→Order Numbers
Hole Drilling
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]

Perform Installation - Embedment Depth <250 mm [<10 inch]
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
Image alternative
→ technical data:
→Rebar US - CMU [imperial units]
→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

→ back to product selection
_______________________________________________________________________________________________________________________________________
Image alternative

Technical Data

→HIS-N / HIS-RN [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
df
[inch]
hs
[inch]
Tinst
[lb-ft]
11/16
3/8
4 3/8
7/16
3/8 ... 15/16
≤15
7/8
1/2
5
9/16
1/2 ... 1 3/16
≤30
→ return to previous page with "back"-function of your browser
Image alternative

→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
Tinst
[lb-ft]
df1
[inch]
df2
[inch]
7/16
3/8
3 3/8
≤15
1/2
7/16
9/16
1/2
4 1/2
≤30
5/8
9/16
3/4
5/8
5 3/8
≤60
13/16
11/16
7/8
3/4
6 3/4
≤100
15/16
13/16
1
7/8
6 3/4
≤125
1 1/8
15/16
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar US - CMU [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
1/2
3
3 3/8
5/8
4
4 1/2
3/4
5
5 5/8
7/8
6
6 3/4
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar US - CMU / Diamond core bit [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
5/8
4
4 1/2
3/4
5
5 5/8
7/8
6
6 3/4
→ return to previous page with "back"-function of your browser
Image alternative

→HIT-Z / HIT-Z-R - CMU [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
Tinst-Z
[lb-ft]
Tinst-R
[lb-ft]
df1
[inch]
df2
[inch]
7/16
3/8
3 3/8
15
30
1/2
7/16
9/16
1/2
4 1/2
30
65
5/8
9/16
3/4
5/8
5 5/8
60
125
13/16
11/16
7/8
3/4
6 3/4
110
165
15/16
13/16
→ return to previous page with "back"-function of your browser
Image alternative

→HIS-N / HIS-RN [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
df
[inch]
hs
[inch]
Tinst
[lb-ft]
11/16
3/8
4 3/8
7/16
3/8 ... 15/16
≤15
7/8
1/2
5
9/16
1/2 ... 1 3/16
≤30
1 1/8
5/8
6 3/4
11/16
5/8 ... 1 1/2
≤60
1 1/4
3/4
8 1/8
13/16
3/4 ... 1 7/8
≤100
→ return to previous page with "back"-function of your browser
Image alternative

→HIT-V / HAS-U / HAS-E / HAS [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
Tinst
[lb-ft]
df1
[inch]
Image alternative
df2
[inch]
7/16
3/8
2 3/8 ... 7 1/2
≤15
1/2
7/16
9/16
1/2
2 3/4 ... 10
≤30
5/8
9/16
3/4
5/8
3 1/8 ... 12 1/2
≤60
13/16*
11/16
7/8
3/4
3 1/2 ... 15
≤100
15/16*
13/16
1
7/8
3 1/2 ... 17 1/2
≤125
1 1/8*
15/16
1 1/8
1
4 ... 20
≤150
1 1/4*
1 1/8
1 3/8
1 1/4
5 ... 25
≤200
1 1/2*
1 3/8
→ return to previous page with "back"-function of your browser
Image alternative

→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
Tinst
[lb-ft]
df1
[inch]
Image alternative
df2
[inch]
3/4
5/8
3 1/8 ... 12 1/2
≤60
13/16*
11/16
7/8
3/4
3 1/2 ... 15
≤100
15/16*
13/16
1
7/8
3 1/2 ... 17 1/2
≤125
1 1/8*
15/16
1 1/8
1
4 ... 20
≤150
1 1/4*
1 1/8
1 3/8
1 1/4
5 ... 25
≤200
1 1/2*
1 3/8
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar [metric units]

Image alternative
⌀ d0
[mm]
⌀ d
[mm]
hef
[mm]
12
8
60...480
14
10
60...600
16
12
70...720
18
14
75...1000
20
16
80...1000
22
18
85...1000
25
20
90...1000
28
22
95...1000
32
24 / 25
96 / 100...1000
35
26 / 28
104 / 112...1000
37
30
120...1000
40
32
126...1000
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar / Diamond core bit [metric units]

Image alternative
⌀ d0
[mm]
⌀ d
[mm]
hef
[mm]
18
14
80...600
20
16
80...600
22
18
85...600
25
20
90...600
28
22
95...600
32
24 / 25
96 / 100...600
35
26 / 28
104 / 112...600
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar / Hollow drill bit [metric units]

Image alternative
⌀ d0
[mm]
⌀ d
[mm]
hef
[mm]
12
8
60...480
14
10
60...600
16
12
70...720
18
14
75...1000
20
16
80...1000
22
18
85...1000
25
20
90...1000
28
22
95...1000
32
24 / 25
96 / 100...1000
35
26 / 28
104 / 112...1000
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar CA [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[mm]
hef
[mm]
9/16
10 M
70...678
3/4
15 M
80...960
1
20 M
90...390
1 1/4
25 M
101...504
1 1/2
30 M
120...598
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar CA / Diamond core bit [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[mm]
hef
[mm]
3/4
15 M
80...960
1
20 M
90...390
1 1/4
25 M
101...504
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar CA / Hollow drill bit [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[mm]
hef
[mm]
9/16
10 M
70...678
3/4
15 M
80...960
1
20 M
90...390
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar US - Concrete [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
1/2
3
2 3/8 ... 22 1/2
5/8
4
2 3/4 ... 30
3/4
5
3 1/8 ... 37 1/2
7/8
6
3 1/2 ... 15
1
7
3 1/2 ... 17 1/2
1 1/8
8
4 ... 20
1 3/8
9
4 1/2 ... 22 1/2
1 1/2
10
5 ... 25
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar US - Concrete / Diamond core bit [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
5/8
4
3 1/8 ... 25
3/4
5
3 1/8 ... 25
7/8
6
3 1/2 ... 15
1
7
3 1/2 ... 17 1/2
1 1/8
8
4 ... 20
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar US - Concrete / Hollow drill bit [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
1/2
3
3 1/8 ... 22 1/2
5/8
4
3 1/8 ... 25
3/4
5
3 1/8 ... 25
7/8
6
3 1/2 ... 15
1
7
3 1/2 ... 17 1/2
1 1/8
8
4 ... 20
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar CA [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[mm]
hef
[mm]
9/16
10 M
70...678
3/4
15 M
80...960
1
20 M
90...1170
1 1/4
25 M
101...1512
1 1/2
30 M
120...1794
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar CA / Diamond core bit [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[mm]
hef
[mm]
3/4
15 M
80...600
1
20 M
90...600
1 1/4
25 M
101...600
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar CA / Hollow drill bit [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[mm]
hef
[mm]
9/16
10 M
70...678
3/4
15 M
80...960
1
20 M
90...1000
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar US - Concrete [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
1/2
3
2 3/8 ... 22 1/2
5/8
4
2 3/4 ... 30
3/4
5
3 1/8 ... 37 1/2
7/8
6
3 1/2 ... 15
1
6
15 ... 45
1
7
3 1/2 ... 17 1/2
1 1/8
7
17 1/2 ... 52 1/2
1 1/8
8
4 ... 20
1 1/4
8
20 ... 60
1 3/8
9
4 1/2 ... 67 1/2
1 1/2
10
5 ... 75
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar US - Concrete / Diamond core bit [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
5/8
4
2 3/4 ... 30
3/4
5
3 1/8 ... 37 1/2
7/8
6
3 1/2 ... 15
1
6
15 ... 45
1
7
3 1/2 ... 17 1/2
1 1/8
7
17 1/2 ... 25
1 1/8
8
4 ... 20
1 1/4
8
20 ... 25
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar US - Concrete / Hollow drill bit [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
1/2
3
2 3/8 ... 22 1/2
5/8
4
2 3/4 ... 30
3/4
5
3 1/8 ... 37 1/2
7/8
6
3 1/2 ... 15
1
6
15 ... 39 3/8
1
7
3 1/2 ... 17 1/2
1 1/8
7
17 1/2 ... 39 3/8
1 1/8
8
4 ... 20
→ return to previous page with "back"-function of your browser
Image alternative

→HIT-Z / HIT-Z-R - Concrete [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
Tinst HIT-Z
[lb-ft]
Tinst HIT-Z-R
[lb-ft]
df1
[inch]
Image alternative
df2
[inch]
7/16
3/8
2 3/8 ... 4 1/2
15
30
1/2
7/16
9/16
1/2
2 3/4 ... 6
30
65
5/8*
9/16
3/4
5/8
3 3/4 ... 7 1/2
60
125
13/16*
11/16
7/8
3/4
4 ... 8 1/2
110
165
15/16
13/16
→ return to previous page with "back"-function of your browser
Image alternative

→HIS-N / HIS-RN [metric units]

Image alternative
⌀ d0
[mm]
Size
hef
[mm]
df
[mm]
hs
[mm]
Tinst
[Nm]
14
M8
90
9
8...20
≤10
18
M10
110
12
10...25
≤20
22
M12
125
14
12...30
≤40
28
M16
170
18
16...40
≤80
32
M20
205
22
20...50
≤150
→ return to previous page with "back"-function of your browser
Image alternative

→HIS-N / HIS-RN / Diamond core bit [metric units]

Image alternative
⌀ d0
[mm]
Size
hef
[mm]
df
[mm]
hs
[mm]
Tinst
[Nm]
18
M10
110
12
10...25
≤20
22
M12
125
14
12...30
≤40
28
M16
170
18
16...40
≤80
32
M20
205
22
20...50
≤150
→ return to previous page with "back"-function of your browser
Image alternative

→HIT-V / HAS-U / HAS-E / HAS [metric units]

Image alternative
⌀ d0
[mm]
Size
hef
[mm]
Tinst
[Nm]
df1
[mm]
Image alternative
df2
[mm]
10
M8
60...160
≤10
11
9
12
M10
60...200
≤20
14
12
14
M12
70...240
≤40
16*
14
18
M16
80...320
≤80
20*
18
22
M20
90...400
≤150
24*
22
28
M24
96...480
≤200
30*
26
30
M27
108...540
≤270
32*
26
35
M30
120...600
≤300
37*
33
→ return to previous page with "back"-function of your browser
Image alternative

→HIT-V / HAS-U / HAS-E / HAS / Diamond core bit [metric units]

Image alternative
⌀ d0
[mm]
Size
hef
[mm]
Tinst
[Nm]
df1
[mm]
Image alternative
df2
[mm]
18
M16
80...320
≤80
20*
18
22
M20
90...400
≤150
24*
22
28
M24
96...480
≤200
30*
26
30
M27
108...540
≤270
32*
26
35
M30
120...600
≤300
37*
33
→ return to previous page with "back"-function of your browser
Image alternative

→HIT-Z / HIT-Z-R [metric units]

Image alternative
⌀ d0
[mm]
Size
hnom
[mm]
Tinst HIT-Z
[Nm]
Tinst HIT-Z-R
[Nm]
df1
[mm]
Image alternative
df2
[mm]
10
M8
60...96
10
30
11
9
12
M10
60...120
25
55
14
12
14
M12
60...144
40
75
16*
14
18
M16
96...192
80
155
20*
18
22
M20
100...220
150
215
24
22
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar [metric units]

Image alternative
⌀ d0
[mm]
⌀ d
[mm]
hef
[mm]
10
8
60...1000
12
8 / 10
60...1000
14
10 / 12
70...1000
16
12
70...1000
18
14
75...1000
20
16
80...1000
22
18
85...1000
25
20
90...1000
28
22
95...1000
32
24 / 25
96 / 100...1000
35
26 / 28
104 / 112...1000
37
30
120...1000
40
32
128...1000
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar US - CMU [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
1/2
3
3 3/8
5/8
4
4 1/2
3/4
5
5 5/8
7/8
6
6 3/4
→ return to previous page with "back"-function of your browser
Image alternative

→Rebar US - CMU / Diamond core bit [imperial units]

Image alternative
⌀ d0
[inch]
⌀ d
[inch]
hef
[inch]
5/8
4
4 1/2
3/4
5
5 5/8
7/8
6
6 3/4
→ return to previous page with "back"-function of your browser
Image alternative

→Roughening Time

Image alternative Image alternative troughen max [sec] = hef [mm] / 10
troughen max [sec] = hef [inch] / 2.5
Image alternative Image alternative tblowing min [sec] = troughen + 20 [sec]
→ return to previous page with "back"-function of your browser
Image alternative

→Curing Times HIT-Z / HIT-HY 200-A V3

Temperature of Concrete
[°C] / [°F]
Image alternative
twork
[min]
tcure
[h]
> 5 ℃ … ≤ 10 ℃
(> 41 ℉ … ≤ 50 ℉)
15 min
1.25 h
(75 min)
> 10 ℃ … ≤ 20 ℃
(> 50 ℉ … ≤ 68 ℉)
7 min
0.75 h
(45 min)
> 20 ℃ … ≤ 30 ℃
(> 68 ℉ … ≤ 86 ℉)
4 min
0.5 h
(30 min)
> 30 ℃ … ≤ 40 ℃
(> 86 ℉ … ≤ 104 ℉)
3 min
0.5 h
(30 min)
→ return to previous page with "back"-function of your browser
Image alternative

→Curing Times HIT-HY 200-A V3 (excl. HIT-Z)

Temperature of Concrete
[°C] / [°F]
Image alternative
twork
[min]
tcure
[h]
−10 ℃ … −5 ℃
(14 ℉ … 23 ℉)
90 min
7 h
> −5 ℃ … ≤ 0 ℃
(> 23 ℉ … ≤ 32 ℉)
50 min
4 h
> 0 ℃ … ≤ 5 ℃
(> 32 ℉ … ≤ 41 ℉)
25 min
2 h
> 5 ℃ … ≤ 10 ℃
(> 41 ℉ … ≤ 50 ℉)
15 min
1.25 h
(75 min)
> 10 ℃ … ≤ 20 ℃
(> 50 ℉ … ≤ 68 ℉)
7 min
0.75 h
(45 min)
> 20 ℃ … ≤ 30 ℃
(> 68 ℉ … ≤ 86 ℉)
4 min
0.5 h
(30 min)
> 30 ℃ … ≤ 40 ℃
(> 86 ℉ … ≤ 104 ℉)
3 min
0.5 h
(30 min)
→ return to previous page with "back"-function of your browser
Image alternative

→Curing Times HIT-Z / HIT-HY 200-R V3

Temperature of Base Material
[°C] / [°F]
Image alternative
twork
[min]
tcure
[h]
> 5 ℃ … ≤ 10 ℃
(> 41 ℉ … ≤ 50 ℉)
30 min
2.5 h
> 10 ℃ … ≤ 20 ℃
(> 50 ℉ … ≤ 68 ℉)
15 min
1.5 h
> 20 ℃ … ≤ 30 ℃
(> 68 ℉ … ≤ 86 ℉)
9 min
1 h
> 30 ℃ … ≤ 40 ℃
(> 86 ℉ … ≤ 104 ℉)
6 min
1 h
→ return to previous page with "back"-function of your browser
Image alternative

→Curing Times HIT-HY 200-R V3 (excl. HIT-Z)

Temperature of Base Material
[°C] / [°F]
Image alternative
twork
[min]
tcure
[h]
−10 ℃ … −5 ℃
(14 ℉ … 23 ℉)
180 min
20 h
> −5 ℃ … ≤ 0 ℃
(> 23 ℉ … ≤ 32 ℉)
90 min
8 h
> 0 ℃ … ≤ 5 ℃
(> 32 ℉ … ≤ 41 ℉)
45 min
4 h
> 5 ℃ … ≤ 10 ℃
(> 41 ℉ … ≤ 50 ℉)
30 min
2.5 h
> 10 ℃ … ≤ 20 ℃
(> 50 ℉ … ≤ 68 ℉)
15 min
1.5 h
> 20 ℃ … ≤ 30 ℃
(> 68 ℉ … ≤ 86 ℉)
9 min
1 h
> 30 ℃ … ≤ 40 ℃
(> 86 ℉ … ≤ 104 ℉)
6 min
1 h
→ return to previous page with "back"-function of your browser
Image alternative

→Temperatures HIT-Z

Transport and Storage Temperature
Keep in a cool, dry and dark place!
5 ℃ … 25 ℃
(41 ℉ … 77 ℉)
Foil pack temperature during usage
0 ℃ … 40 ℃
(32 ℉ … 104 ℉)
Base material temperature at time of installation
5 ℃ … 40 ℃
(41 ℉ … 104 ℉)
→ return to previous page with "back"-function of your browser
Image alternative

→Temperatures (excl. HIT-Z)

Transport and Storage Temperature
Keep in a cool, dry and dark place!
5 ℃ … 25 ℃
(41 ℉ … 77 ℉)
Foil pack temperature during usage
0 ℃ … 40 ℃
(32 ℉ … 104 ℉)
Base material temperature at time of installation
−10 ℃ … 40 ℃
(14 ℉ … 104 ℉)
→ return to previous page with "back"-function of your browser
Image alternative

→Auxiliary Means

HIT-RE-M
Image alternative
HIT-SZ
HIT-OHW
HIT-OHC
HDM / HDE
→ return to previous page with "back"-function of your browser
Image alternative

→Auxiliary Means [imperial units]

Auxilliary Mean →
Size ⌀d0 [inch]↓
Image alternative
HIT-RB
hef > 20 d:
Image alternative
Image alternative
HIT-SZ
Image alternative
HIT-DL
hef ≥ 10 inch
Image alternative
TE-YRT
7/16
7/16
·/·
·/·
·/·
1/2
1/2
1/2
1/2
·/·
9/16
9/16
9/16
9/16
·/·
5/8
5/8
5/8
5/8
·/·
11/16
11/16
11/16
11/16
·/·
3/4
3/4
3/4
3/4
3/4
7/8
7/8
7/8
7/8
7/8
1
1
1
1
1
1 1/8
1 1/8
1 1/8
1
1 1/8
1 1/4
1 1/4
1 1/4
1
·/·
1 3/8
1 3/8
1 3/8
1 3/8
1 3/8
1 1/2
1 1/2
1 1/2
1 3/8
·/·
→ return to previous page with "back"-function of your browser
Image alternative

→Auxiliary Means [metric units]

Auxilliary Mean →
Size ⌀d0 [mm]↓
Image alternative
HIT-RB
hef > 20 d:
Image alternative
Image alternative
HIT-SZ
Image alternative
HIT-DL
h ef ≥ 250 mm
Image alternative
TE-YRT
10
10
·/·
·/·
·/·
12
12
12
12
·/·
14
14
14
14
·/·
16
16
16
16
·/·
18
18
18
18
18
20
20
20
20
20
22
22
22
20
22
24
24
24
20
·/·
25
25
25
25
25
28
28
28
25
28
30
30
30
25
30
32
32
32
32
32
35
35
35
32
35
40
40
40
32
·/·
→ return to previous page with "back"-function of your browser
Image alternative

→Auxiliary Means Embedment Depth <250 mm [<10 inch]

HIT-RE-M
HDM / HDE
→ return to previous page with "back"-function of your browser
Image alternative

→Auxiliary Means Embedment Depth ≥250 mm [≥10 inch]

HIT-RE-M
HIT-SZ
HDM / HDE
→ return to previous page with "back"-function of your browser
Image alternative

Additional Information

Adresses

AE
Hilti Emirates L.L.C. Dubai Investment Park AE-Dubai Tel +380 44 390 5564
AR
Hilti Argentina S.R.L. Profesor Manuel García 4760, B1605 BIB - Munro, AR-Buenos Aires Tel +54 11 4721 4400
AT
Hilti Austria Ges.m.b.H. Altmannsdorferstr. 165 Postfach 316, AT-1231 Wien, Tel +43 1 66101
AU
Hilti (Aust.) Pty. Ltd. Level 5, 1G Homebush Bay Drive Rhodes N.S.W. 2138 Tel +61 131 292
BE
Hilti Belgium N.V./S.A. Z.4 Broekooi 220 , 1730 Asse Tel +32 2 467 7911
BR
Hilti do Brasil Comercial Ltda. Al. Rio Negro, 500 -Torre A 9º andar, 06454-000 Barueri, SP Tel +55 11 4134 9000
CH
Hilti (Schweiz) AG, Soodstrasse 61 CH-8134 Adliswil Tel +41 844 84 84 85
CL
Hilti Chile Ltda., Av. Apoquindo 4501, piso 13, Las Condes 75500
CN
喜利得(中国)商贸有限公司 上海市桂箐路9号,29号楼,6楼 电话:+86 21 6016 7320 传真:/ 邮编:200233 中国境内化学事故应急咨询电话: +86-400-6267-911
CR
Superba S.A., 200 Mts. Oeste de Matra la Uruca , CR-San Jose, Tel +506 2255 1044
CY
Cyprus Trading Corp. Ltd. Domex Operations, CTC House, Athalassa P.O. Box 21744, CY-1589 Nicosia Tel +357 22 740 340
DE
Hilti Deutschland AG Hiltistr. 2, D-86916 Kaufering Tel +49 8191 90-0
ES
HILTI ESPAÑOLA, S.A. Fuente de la Mora, 2, Edificio 1 ES-28050 Madrid, Tel +34 91 334 2200
FR
Hilti France S.A. Rond Point Mérantais 1, rue Jean Mermoz 78778 Magny-les-Hameaux Tel +33 825 01 05 05
GB
Hilti (Gt. Britain) Ltd. 1 Trafford Wharf Road Trafford Park, GB-M17 1BY Manchester Tel +44 161 886 1000
GR
HILTI Ελλάς ΑΕΕ Λ. Κύμης 132 15123 Μαρούσι, Αθήνα - Ελλάδα T +30 210 288 0600
HK
Hilti Asia Ltd. 701-704, 7/F, Tower A Manulife Financial Centre 223 Wai Yip Street, Kwun Tong KowloonTel +852 27734 700
ID
P.T. Hilti Nusantara The Garden Center Level 3 No. 3-11B Kawasan Komersial Cilandak Jl. Raya Cilandak KKO, 12560 Jakarta Tel +62 21 789 0850
IE
Hilti (Fastening Systems) Limited Unit C4 , North City Business Park Finglas , IRL-Dublin 11 Tel +353 188 64101
IN
Hilti India Private Limited F-90/4, Okhla Industrial Area Phase 1 New Delhi 110 020 Tel +9111 4270 1111
IT
Hilti Italia S.p.A. Piazza Montanelli 20 IT-20099 Sesto San Giovanni (Milano) Tel +39 02 212 72
JP
日本ヒルティ株式会社 神奈川県横浜市都筑区茅ヶ 崎南2-6-20 224-8550 〒 - 日本 T +81 45 943 6211
KR
힐티코리아(주) 서울시 강남구 언주로 30길 39 135-856 서울 - Korea T 080-220-2000 (수신자 부담)
LI
Hilti AG Feldkircherstraße 100 9494 Schaan Tel +423 234 2111
MA
Hilti Maroc 6, Allée des Cyprès, Aïn Sebâa MA-Casablanca Tel +212 522 67 58 00
MX
Hilti Mexicana, S.A. de C.V. Jaime Balmes 8, Oficina 102, 1er Piso Col. Los Morales Polanco Del. Miguel Hidalgo MEX-Mexico City 11510 Tel +5255 5387-1600
MY
Hilti (Malaysia) Sdn. Bhd. 9 & 11 Jalan PJS 11/20 Bandar Sunway MAL-46150 Petaling Jaya Tel +60 3 5633 8583
NL
Hilti Nederland B.V. Leeuwenhoekstraat 4 NL-2652 XL Berkel en Rodenrijs Tel +31 10 5191111
NZ
Hilti (New Zealand) Ltd. 525 Great South Road 1050 Penrose, Auckland P.O.Box 112-030 Penrose NZ-Auckland Tel +64 9 526 7783
PH
Hilti (Philippines) Inc. 2256 Pasong Tamo Extension Edsa, Brgy. Magallanes 1224, Makati City Tel +63 2 843 0066
PT
Hilti (Portugal) Produtos e Serviços lda, Rua da Lionesa, n° 446, Ed. C39 PT-4465-671 Leça do Balio Tel +351 808 200 111
QA
Hilti Qatar W.L.L. Souq Al Rawda, Salwa Road 24097 Doha Ad Dawḩah Tel +974 4406 3600
SA
Hilti Saudi Arabia for Construction Tools LLC, Kilo 14, King Fahd Street PO Box 15930, KSA-21454 Jeddah Tel +966 2 213 8400
SG
Hilti Far East Private Ltd. No 20 Harbour Drive, #06-06/08 PSA Vista SGP-Singapore 117612 Tel +65 6777 7887
TH
บริษัท ฮิลติ (ไทยแลนด์) จากัด 1858/107-108 อาคาร อินเตอร์ลิงค์ ชัน้ 24 10260 กรุงเทพฯ - Thailand T +66 2 714 5300
TR
Hilti İnşaat Malz. Tic. A.Ş. Barbaros Mahallesi Ağaoğlu My Office Çiğdem Sok. No:15/A, 34746 Ataşehir/İstanbul Tel +90 216 528 68 00
TW
喜利得股份有限公司 台北市仁愛路2段2號4樓 10060 台北 - 台湾 T +886 2 2357 9090
ZA
Hilti (South Africa) (Pty) Ltd. 2 Tugela Lane Waterfall Logistics Precinct Corner Bridal Veil Road and R101 2090 Midrand Tel +2711 237300

→Order Numbers

Material
Order Number
HIT-OHC
8 mm … 18 mm
(0.3 in … 0.7 in)
Image alternative
387551
HIT-OHC
20 mm … 40 mm
(0.8 in … 1.6 in)
Image alternative
387552
HIT-RE-M
Image alternative
337111
HIT-OHW
Image alternative
387550
Image alternative 60579
Image alternative
Image alternative
d0 [inch]: 7/16”...1 1/8”
hef [inch]: 2 3/8”...20”
  • ≥ 6 bar/90 psi @ 6 m3/h
d0 [inch]: 1 1/4”...1 1/2”
hef [inch]: 4”...25”
  • ≥ 140 m3/h/ ≥82 CFM
381215
→ return to previous page with "back"-function of your browser
Image alternative

Certificates

Image alternative
Image alternative
Image alternative

Legend

Symbols used
Image alternative Uncracked concrete
Image alternative Cracked concrete
Image alternative Grout-filled CMU
Image alternative Dry base material
Image alternative Water saturated base material
Image alternative Water filled borehole in concrete
Image alternative Threaded rod, threaded sleeve
Image alternative Rebar
Image alternative HIT-Z, HIT-Z-R
Image alternative Hammer drilling
Image alternative Hollow drill bit
Image alternative Diamond coring
Image alternative Roughening tool
Image alternative Temperature of Base Material
Image alternative Cartridge Temperature
Image alternative Working time
Image alternative Curing time
Image alternative Roughening time
Image alternative Blowing time
Image alternative ECO Mode
Image alternative Automatic filter cleaning
