TE 4-A22 Cordless rotary hammer

Name: TE 4-A22 Cordless rotary hammer
Brand: Hilti
SKU: r6637213
Price: 559 USD

Configurator

Technical Data

Features & Applications

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

From $259.00

Technical Data

Weight according EPTA-Procedure 01/2003 without battery

7.3 lb

Optimum Hammer drilling range

3/16 - 15/32 in

Single impact energy

1.5 ft-lbs

Hammer drilling diameter range

5/32 - 23/32 in

Hammer drilling RPM

1050 rpm

Full hammering frequency

5200 impacts/minute

Functionality

Integrated Dust Removal System (DRS), Reverse mode, Depth gauge

Triaxial vibration for chiseling into concrete

11 m/s² ¹

A-weighted emission sound power level

99 dB (A) ²

A-weighted emission sound pressure level

88 dB (A) ³

Dust removal system available

TE DRS-4-A, TE DRS-D, TE DRS-S

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)

Features & Applications

Features

First-class performance-to-weight ratio and very compact design
High battery capacity – drills more holes per battery charge than other cordless rotary hammers in this class
Specially designed hammering mechanism for superior drilling performance up to 1/2"
Virtually dustless drilling when used with the OSHA 1926.1153 Table 1 compliant DRS-4-A T1 dust removal system
Highest work per charge with 22V batteries

Applications

Repetitive drilling in all directions in concrete and masonry; recommended for diameters up to 1/2"
Occasional drilling in wood, steel and plastics using the special chuck adapter
Screwdriving using the special bit holder with SDS plus connection end

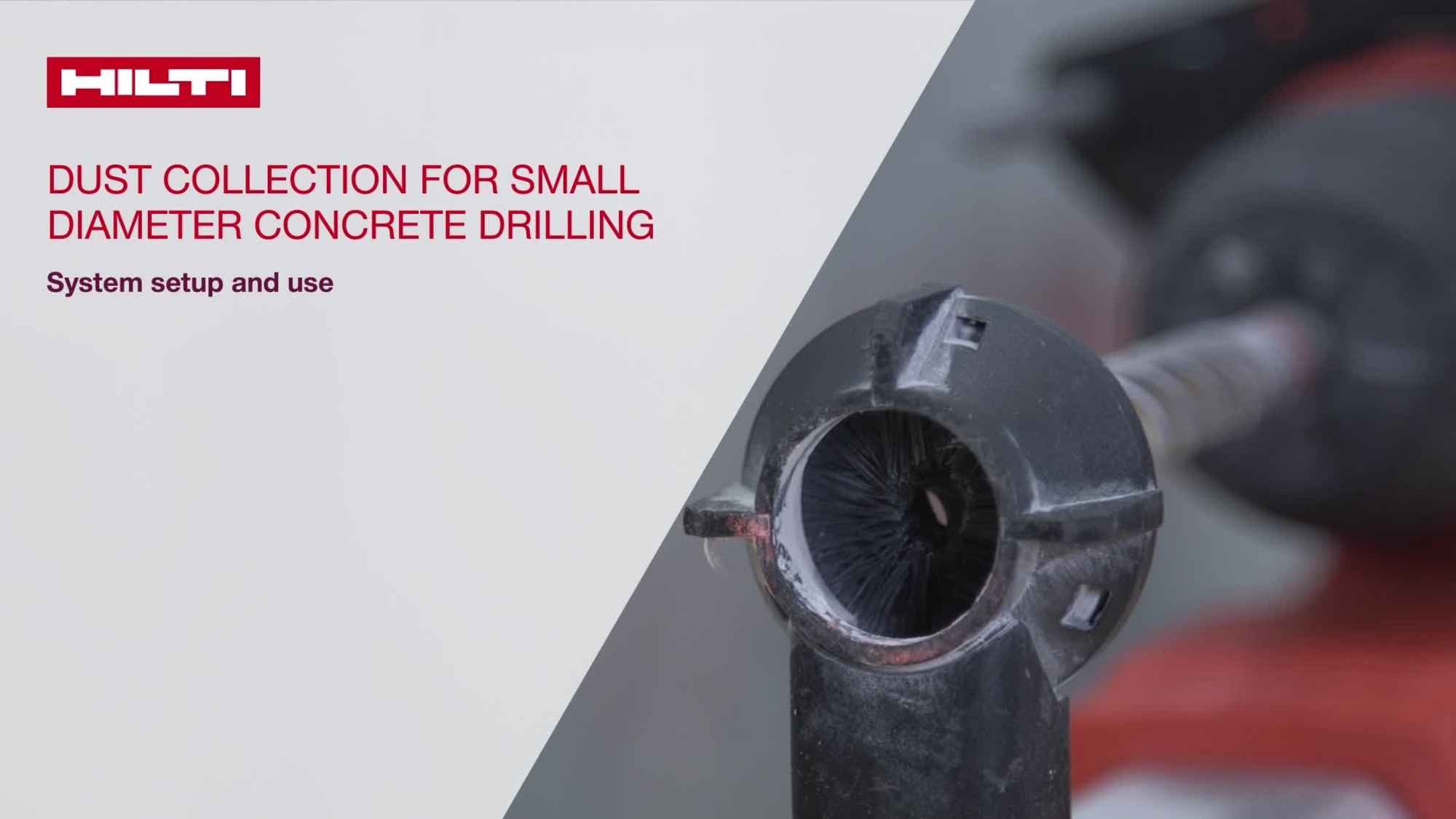

Drilling in concrete in clean areas using the integrated dust removal system (DRS-4-A)
