MQS-IB Beam connector

Configurator
Technical Data
Documents
Features & Applications
Related Products
MQS-IB,_Seismic_Beam_Clamp

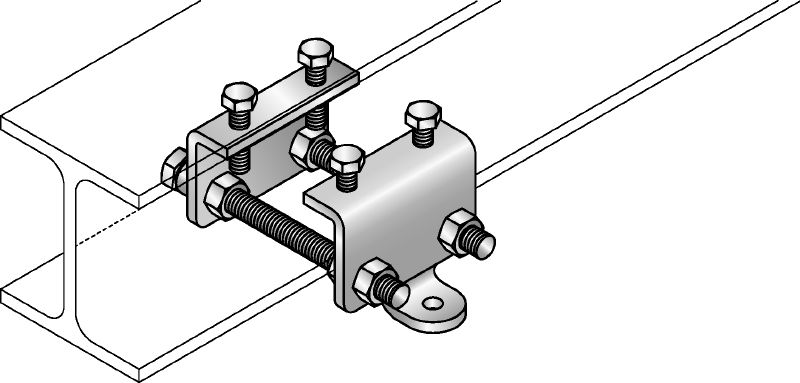

Galvanized pre-assembled beam connector with FM approval for seismic bracing of fire sprinkler pipes on steel structures

  • Material composition: Connector: S275JR - DIN EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8
  • Surface finish: Indoor Coated - Electro galvanized
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material composition
Connector: S275JR - DIN EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Compatible with steel beams from 6 to 28 mm flange thickness
  • FM-approved system for bracing of fire sprinkler installations
  • Meets U.S.A. National Fire Protection Association (NFPA) requirements for seismic braces
  • Shear-off bolt heads make installation and inspection quicker and easier

Applications

  • Seismic approved (FM) bracing of fire sprinkler pipes
  • Steel beam attachment component for longitudinal and transversal brace assembly
  • For use in combination with MQS-SP-L or MQS-SP-T channel connectors

For approval or certificate information, please see individual items.
