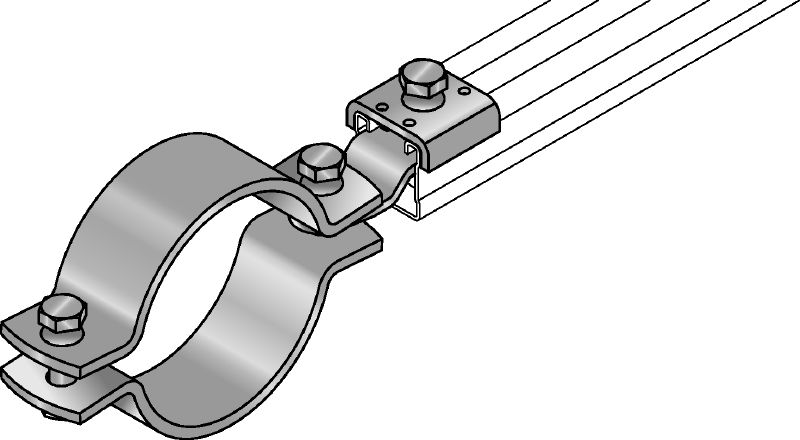

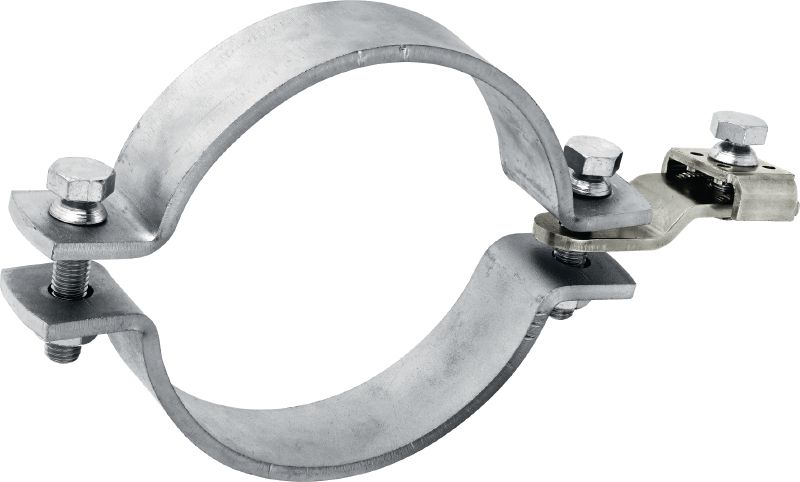

MQS-SP Seismic sprinkler pipe clamp
Galvanized sprinkler pipe clamp with FM approval for seismic bracing in fire sprinkler applications
- Approvals: FM approved seismic sprinkler applications
- Material composition: S275JR - EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8
- Surface finish: Indoor Coated - Electro galvanized
Technical Data
Approvals
FM approved seismic sprinkler applications
Material composition
S275JR - EN 10025, Bolt: Steel grade 8.8, Nut: Steel grade 8
Surface finish
Indoor Coated - Electro galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Documents
Features & Applications
Features
- Universal seismic pipe clamps for use in longitudinal and transversal bracing applications
- FM-approved system for bracing of fire sprinkler installations
- Meets U.S.A. National Fire Protection Association (NFPA) requirements for seismic braces
- Shear-off bolt heads make installation and inspection quicker and easier
- Fully pre-assembled connector with pivoting functionality for quicker, easier and flexible mounting
Applications
- Seismic approved (FM) bracing of fire sprinkler pipes

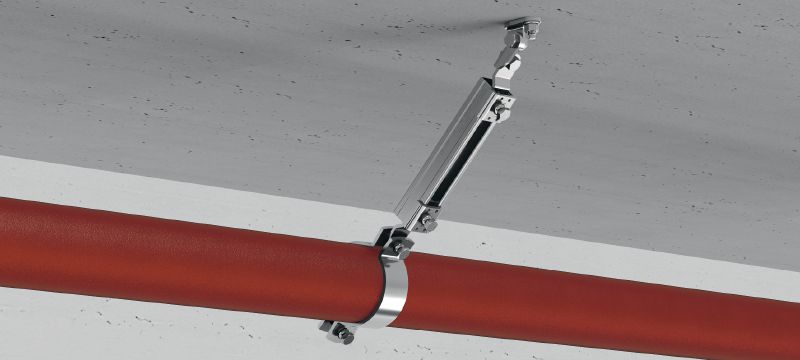

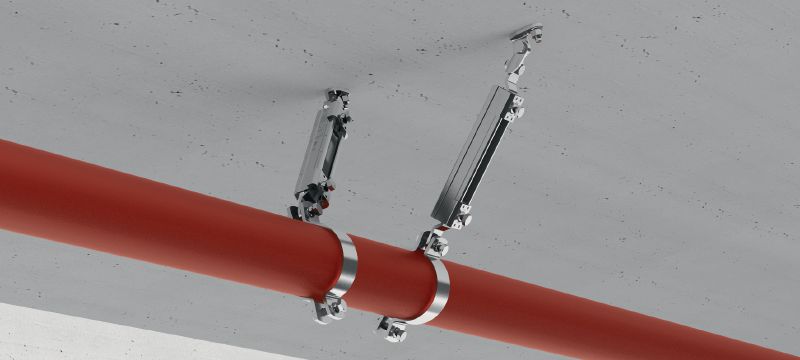

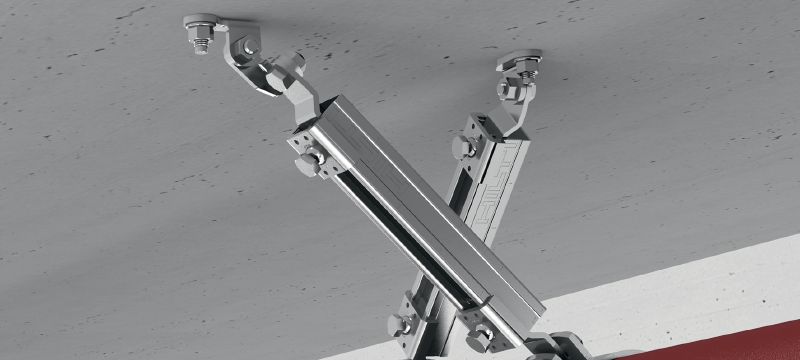

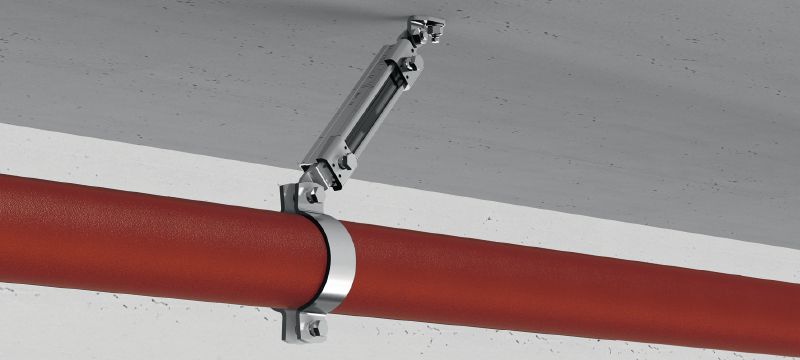

- Attaching pipes for longitudinal or transversal brace assembly
- For use in combination with MQS-SP-L or MQS-SP-T channel connectors
For approval or certificate information, please see individual items.
