CFS-CID MD M cast-in firestop sleeve for metal decks

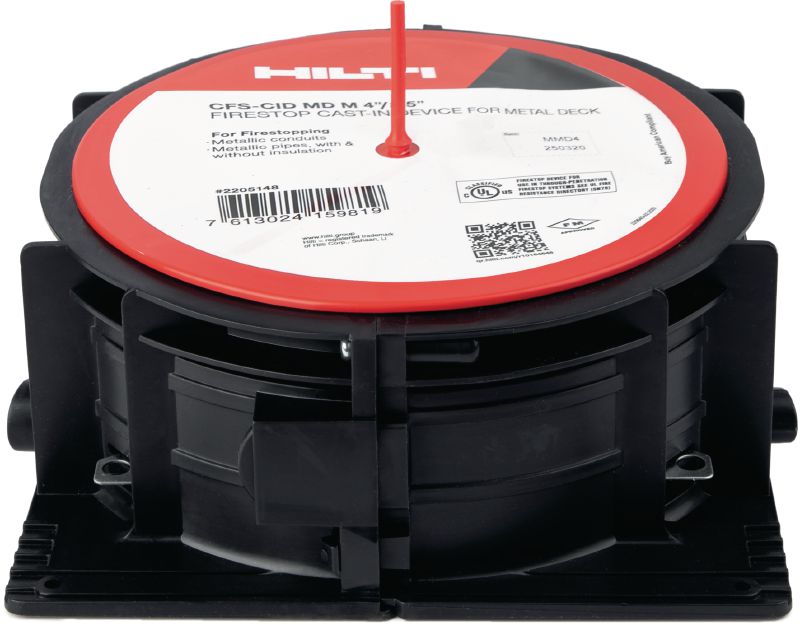

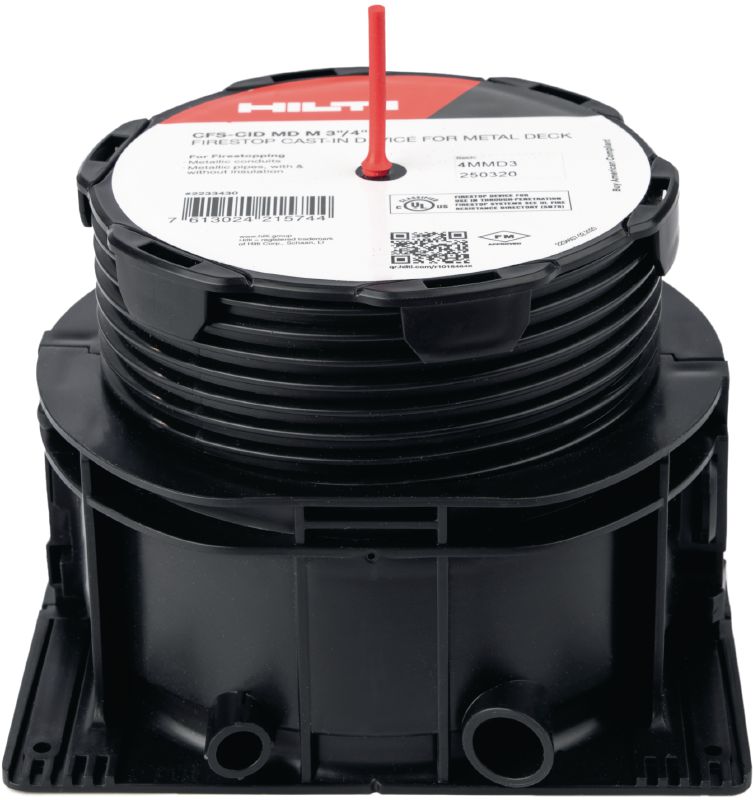

Cast-in firestop sleeve for metal decks CFS-CID MD M on white background
Cast-in firestop sleeve for metal decks CFS-CID MD M on white background

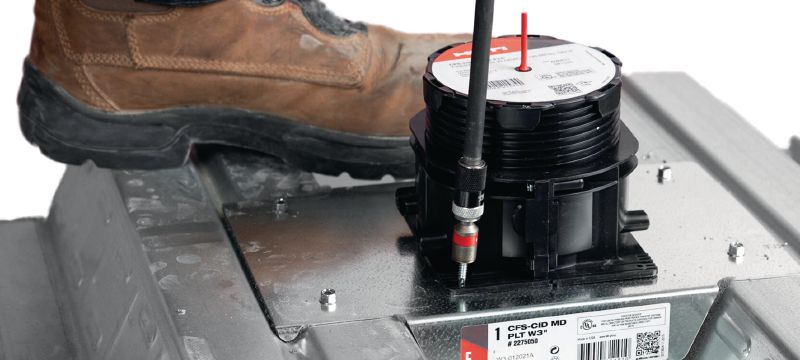

CFS-CID MD M Cast-in devices for metal decks - Install device onto platform (close-up). Application picture on how the devices can be installed onto the platforms

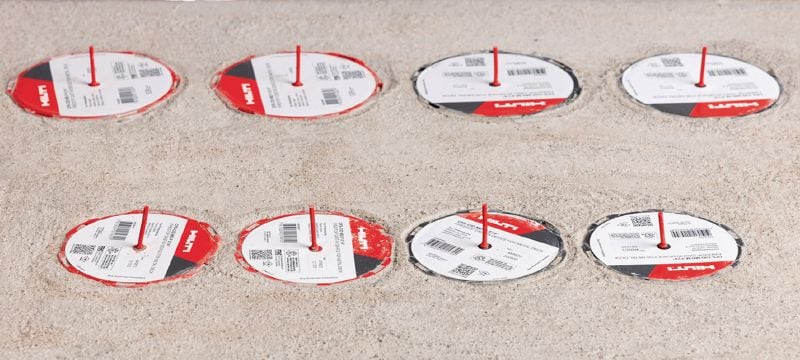

CFS-CID MD P/M cast-in devices for metal decks - Poured slab view. Application picture on how the devices will appear in a concrete slab

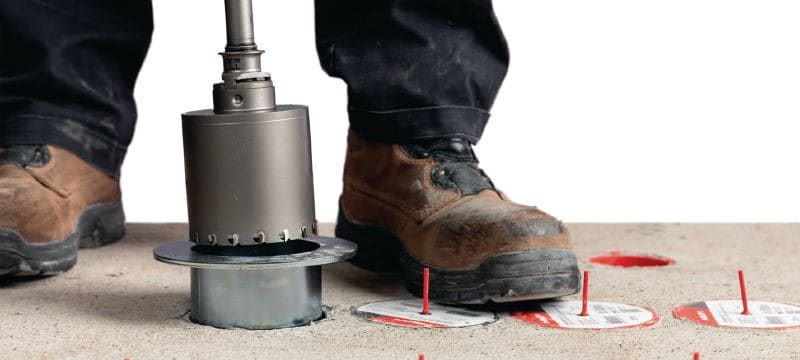

CFS-CID MD M/P Cast-in devices for metal decks - Inserting hole saw into guide sleeve (close-up). Application picture on how to insert the CFS-CID MD HS in the guide sleeve to prepare for cutting.

One-step firestop cast-in sleeve for metal pipe penetrations through corrugated metal deck slabs

  • Application temperature range: 23 - 122 °F
  • Product Class: Ultimate
ultimate

Choose options

Device Size
  • 2 in
  • 3 in
  • 4 in
Device height
  • 2-1/2 in
  • 4 in
Base materials
  • Concrete over metal deck
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $34.00

Technical Data

Application temperature range
23 - 122 °F
Product Class
Ultimate

Documents

pdf Installation Best Practices for CFS-CID MD, English [ 1.7 MB ]
pdf Material Information Statement for Firestop Products, English [ 80.3 KB ]

Features & Applications

Features

  • Quick and simple installation – designed to help increase your productivity and reduce labor costs
  • Peace of mind – firestop cast-in sleeves help to remove scope for errors compared to traditional methods, leading to more reliable firestopping of vertical penetrations
  • Creates an opening with the firestop already included – no coming back for firestopping required
  • Moisture and smoke seal integrated into the cast-in sleeve – no additional backfilling required
  • Steel deck reinforcement or additional shoring may not be needed to support steel deck as a form during the construction phase

Applications

  • Creating openings in corrugated metal deck slabs to run pipes or conduits
  • Designed to work in composite W3 and W2 floor decks for a wide number of manufacturers
  • Sealing combustible and non-combustible penetrations
  • For slab thickness 2.5" and above from the top of the deck
  • Concrete floor assemblies rated up to 3 hours

For approval or certificate information, please see individual items.
