X-BT-ER Stainless steel threaded studs

Configurator
Technical Data
Documents
Features & Applications
Related Products

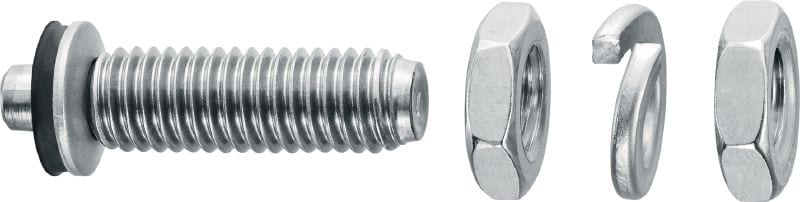

X-BT-ER M8 Stainless Steel Threaded Stud
L076570.tiff

Threaded stud for electrical connectors on steel in highly corrosive environments

  • Base materials: Steel, Stainless steel, Cast iron
  • Minimum thickness of base material (steel): 5/16 in
  • Corrosion protection: Equivalent corrosion protection as A4(316)
ultimate

Customers also searched for X BT ER, X BT Grounding stud, Grounding stud, Bonding or Grounding.

Choose options

Thread size
  • W6
  • W10
Thread length
  • 25/32 in
  • 15/16 in
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $1,809.00

Technical Data

Base materials
Steel, Stainless steel, Cast iron
Minimum thickness of base material (steel)
5/16 in
Corrosion protection
Equivalent corrosion protection as A4(316)
Environmental Conditions
Outdoor, areas with heavy industrial pollution
Material
Duplex stainless steel (1.4462)
Point type
Blunt tip
Product Class
Ultimate

Documents

Approval document
Reference document
Documentation
Technical information
Specification Text
Operating Instruction
pdf LR Type Approval LR2435310TA-02 for X-BT-GR, X-BT-MR and X-BT-ER threaded fasteners in marine, offshore and industrial application, English [ 868.3 KB ]
pdf Canadian UL E257069 for X-BT and S-BT fastenings of grounding and bonding equipment, English [ 80.1 KB ]
pdf DNV Approval TAS00001SV-5 for X-BT-GR, X-BT-MR and X-BT-ER threaded fasteners, English [ 435.1 KB ]
pdf UL E257069 for X-BT and S-BT fastenings of grounding and bonding equipment, English [ 79.7 KB ]
pdf ABS Type Approval 23-00T2426560-1-PDA for X-BT-GR. X-BT-MR, X-BT-ER fastening system in off-shore and shipbuilding application, English [ 114.9 KB ]

Features & Applications

Features

  • No rework necessary on coated steel – corrosion protection remains intact
  • Enhanced safety – allows electrical current to flow through the stud and then discharges it properly into the base material
  • Portable, cordless system – eliminates the need for long electric supply cords
  • Fast – ideal for fastening directly to coated or treated steel
  • Corrosion-resistant – suitable for marine, offshore and petrochemical applications, power plants, etc.

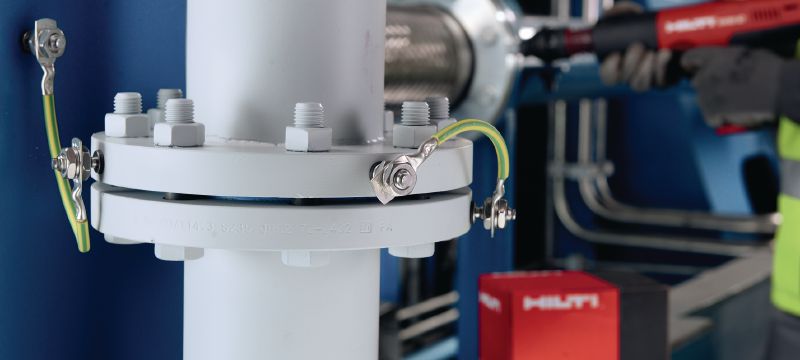

Applications

  • Functional bonding
  • Protective bonding
  • Terminal connection
  • Lightning protection
  • Bonding and earthing/grounding

For approval or certificate information, please see individual items.
