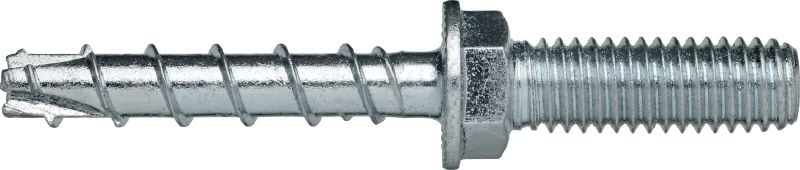

KH-EZ E Screw anchor with externally threaded head
Ultimate screw anchor for quicker and more economical fastenings to concrete (carbon steel, externally threaded head)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Externally threaded
- Approvals / Test reports: ICC-ES report (concrete), ICC-ES report (masonry), LABC, Seismic
Customers also searched for blue tip.
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / Test reports
ICC-ES report (concrete), ICC-ES report (masonry), LABC, Seismic
Base materials
Concrete (cracked), Concrete (lightweight), Concrete (lightweight over metal deck), Concrete (uncracked), Masonry (grout-filled CMU)
Reusable (and removable)
Not Possible
Cleaning procedures
Manual Cleaning
PROFIS Software
Yes
Environmental conditions
Dry indoor
IBC compliance
IBC 2018
Installation direction
All
Material composition
Steel, zinc-plated (min. 8 µm)
Documents
Features & Applications
Features
- Highly productive solution especially suited for seismic and cracked concrete applications requiring an ICC approval
- Quicker and easier to install than wedge anchors – no cleaning, no high-accuracy torque wrench and no hammering required
- Easier to set, even under critical conditions – optimized screw threads and cutting edges suitable for high-strength concrete, used drill bits, rebar hits, and other challenging base materials
- For use with standard ANSI-tolerance drill bits – no special tolerance drill bits required when installing these screw anchors
- FM approved for hanging of pipes up to 4” diameter
Applications
- Light fixtures and pipe hanging
- Sewage water pipes
- Direct pipe-ring attachment
- Light fixtures
- Acoustic ceilings
For approval or certificate information, please see individual items.
