X-EKB MX Cable clamp

Configurator
Technical Data
Documents
Features & Applications
Related Products
X-EKB
7073.tif

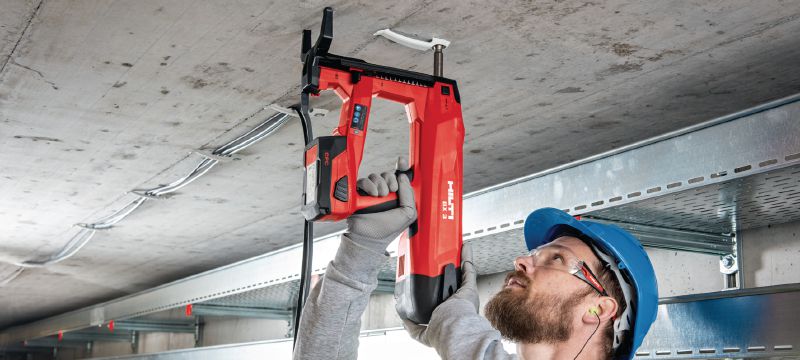

Fasten X-EKB MX with second generation of battery actuated tool BX 3-ME-A22 02 for mechanical and electrical applications

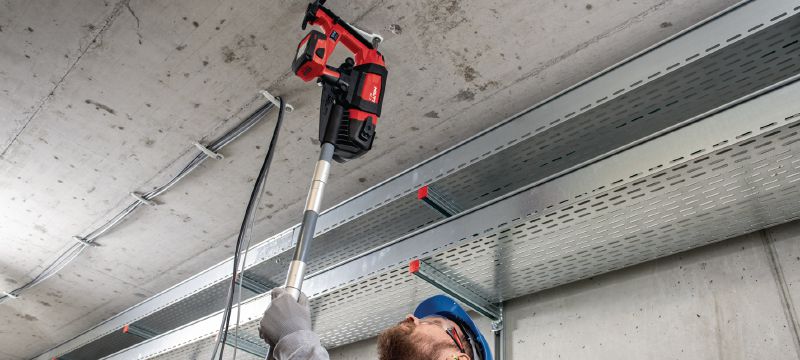

Fasten X-EKB MX with second generation of battery actuated tool BX 3-ME-A22 02 for mechanical and electrical applications and pole tool
Fasten X-EKB MX with second generation of battery actuated tool BX 3-ME-A22 02 for mechanical and electrical applications and pole tool

Plastic cable clasp for use with collated nails

  • Application: Cable Fastenings, Conduit Fastening
  • Material: Polyamide (PA)
  • For use with (tools): BX 3, BX 4-22, DX 351, DX 460, DX 5, DX 6, GX 3
premium

Customers also searched for plenum rated.

Choose options

Cable capacity (10 mm cable)
  • 3
  • 5
Cable capacity (8 mm cable)
  • 4
  • 8
Cable capacity (6 mm cable)
  • 5
  • 10
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $253.00

Technical Data

Application
Cable Fastenings, Conduit Fastening
Material
Polyamide (PA)
For use with (tools)
BX 3, BX 4-22, DX 351, DX 460, DX 5, DX 6, GX 3
Base materials
Concrete (soft), Concrete (tough), Masonry (solid limestone brick), Steel
Approvals
CSTB, ETA, UL
Environmental Conditions
Dry indoor
Product Class
Premium

Documents

Approval document
Technical information
Documentation
Operating Instruction
pdf UL E201485 for X-EKB, X-ECT, X-EKSC and X-ECH/FR positioning devices, English [ 79.6 KB ]
pdf UL E201485 for X-EKB, X-ECT, X-EKSC and X-ECH/FR positioning devices, English [ 81.1 KB ]

Features & Applications

Features

  • Friction-fit in the nose of BX/GX/DX nailers for easy handling
  • UL listed, plenum rated
  • Flame-retardant version available
  • Easy cable insertion
  • Virtually dust-free fastening

Applications

  • Fastening multiple electrical cables flat on the working surface
  • Typical spacing between cable clasps ranges from 50-100 cm – load and cable stiffness must be taken into account

For approval or certificate information, please see individual items.
