X-BR MX Bridle ring

Bridle ring X-BR 2" MX #2229909

Configurator
Technical Data
Documents
Features & Applications
Related Products

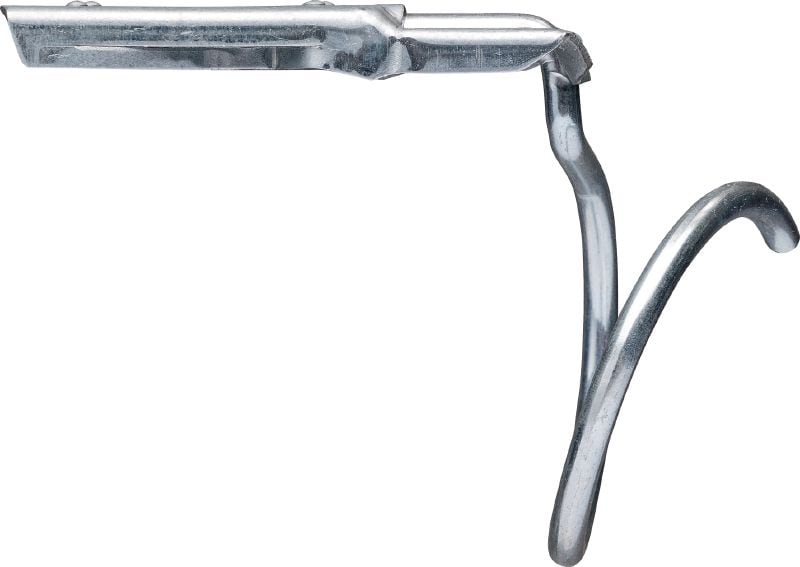

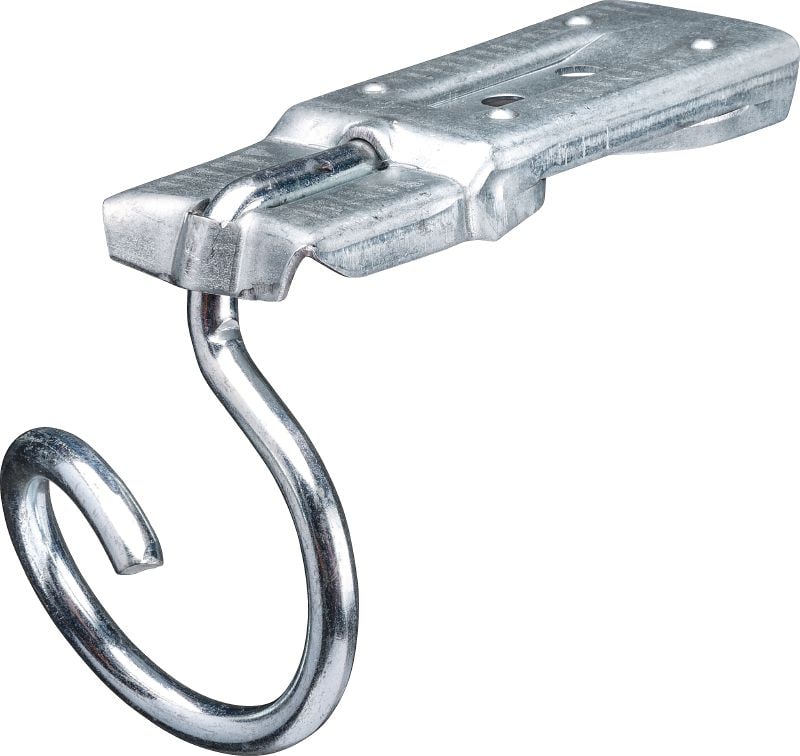

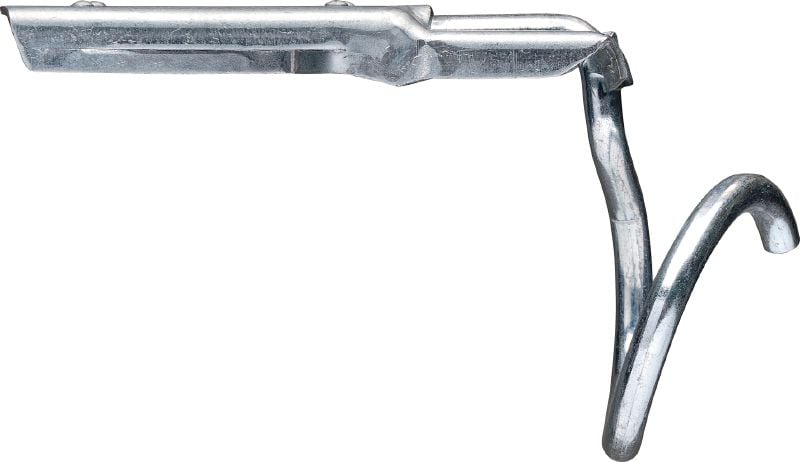

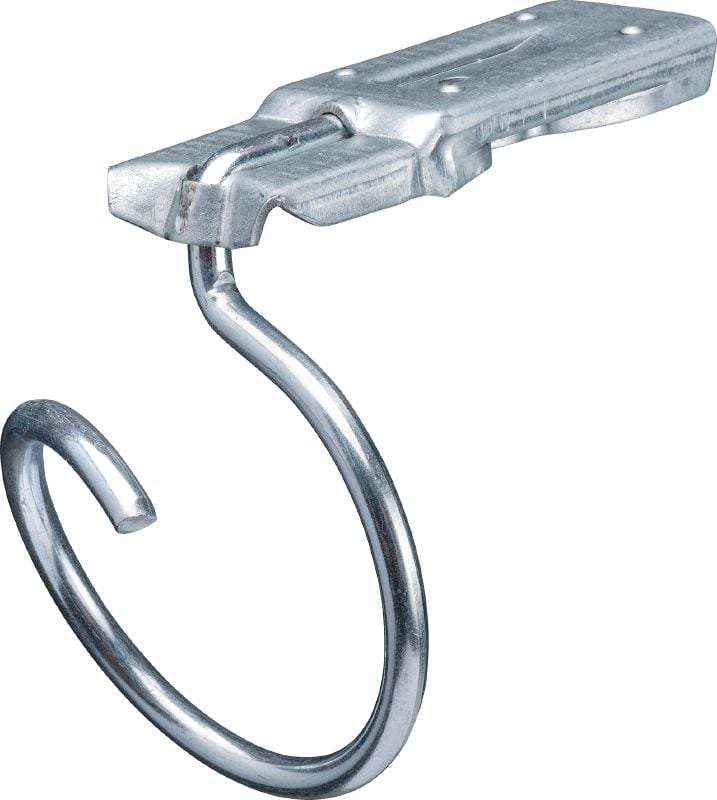

Bridle ring for use with battery-actuated tools

  • Application: Suspended systems
  • Material: Carbon steel
  • For use with (tools): BX 3, BX 4-22
premium

Customers also searched for bridle, ring or bridle ring.

Choose options

Nominal size
  • 2"
Pack size
  • 100 pc
 Product options
Quantity
Box
Total Pieces
100
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$193.00
$193.00 / 1 Box

Technical Data

Application
Suspended systems
Material
Carbon steel
For use with (tools)
BX 3, BX 4-22
Base materials
Concrete (soft), Concrete (lightweight over metal deck), Steel
Environmental Conditions
Dry indoor
Cable capacity (Fire Alarm 18/2 cable, 70% fill rate)
60
MC cable capacity (max)
3
Product Class
Premium

Documents

Approval document
Technical information
Operating Instruction
pdf UL-E505554_X-DR_X-BR_Cables-Conduits_2024-06-21, English [ 99.6 KB ]
pdf UL-Can_E505554_X-DR_X-BR_Cables-Conduits_2024-12-13, English [ 100 KB ]

Features & Applications

Features

  • Time-saving solution – bridle ring pre-assembled with baseplate, delivered ready to install using battery-actuated tools
  • One-handed installation – slide-in connection grips the baseplate to the BX tool
  • Combustion-free installation with BX tools – no gas cans or powder cartridges to store and dispose of
  • Safer and higher-productivity method for overhead applications – battery-actuated tools with a compatible pole tool remove the need for lifts and ladders
  • Virtually dust-free solution – no drilling required

Applications

  • Support for wires and non-sensitive low voltage cables
  • Support for fire alarm cables
  • Support for metal-clad or armored (type MC/AC) cables
