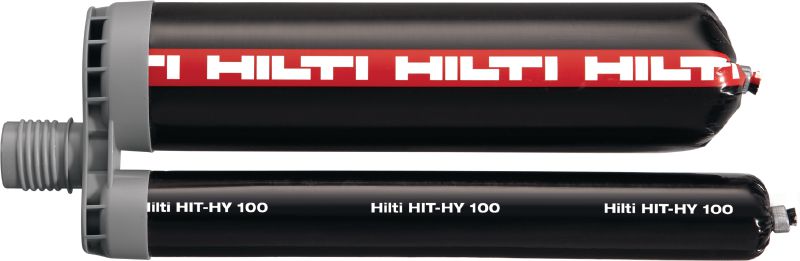

HIT-HY 100 Adhesive anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L041483.tif
L065056.tiff
L065025.tiff
L067608.tiff

High-performance injectable hybrid mortar for anchoring in concrete and for rebar connections

  • Base materials: Concrete (cracked), Concrete (uncracked), Masonry (grout-filled CMU)
  • Base material condition (as per approval): Dry
  • Approvals / Test reports: Seismic

Choose options

Content per can/cartridge
  • 11.16 fl oz (US)
  • 16.91 fl oz (US)
Return Policy
  • No Returns
Pack size
  • 1 pc
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $17.25

Technical Data

Base materials
Concrete (cracked), Concrete (uncracked), Masonry (grout-filled CMU)
Base material condition (as per approval)
Dry
Approvals / Test reports
Seismic
IBC compliance
IBC 2015, IBC 2018, IBC 2021
Seismic loading
Yes
Fatigue loading
No
Fire resistance
No
PROFIS Software
Yes
Anchoring elements
HAS threaded rods, Rebar
Cleaning procedures
Manual Cleaning
Storage and transportation temperature range
41 - 77 °F
In-service temperature – range
-40 - 176 °F
Free of styrene
Yes
Type of fixing
Pre-fastening, Through-fastening

Documents

Certificate
Technical information
Approval document
Schematic
CAD/BIM Typicals
Material safety datasheet
Sustainability Documentation
Operating Instruction
Battery Recycling Information
pdf CoCP 2873-CPR-201-2 05.12.2023 HIT-HY 100 for ETA-14-0009 25.06.2023, English, German, French [ 377.2 KB ]
pdf NSF Product Listings for Drinking Water Applications, English [ 258.7 KB ]

Features & Applications

Features

  • Suitable for use in cracked and uncracked concrete with all anchor rods and rebar according to ICC-ES approval (International Code Council - Evaluation Service)
  • Automatic hole cleaning with TE-CD and TE-YD drill bits in combination with Hilti vacuum cleaners
  • Extensive range of accessories available (e.g. piston plugs for rebar injection, cordless electric dispenser)
  • IAPMO masonry approval and technical data available for higher application flexibility

Applications

  • Anchoring light structural steel connections (e.g. steel columns, beams)
  • Anchoring secondary steel elements
  • Rebar doweling / connection of secondary post-installed rebars
  • Renovation / upgrades with post-installed rebars
  • Substitution of misplaced / missing rebars

For approval or certificate information, please see individual items.
