HAC Front-of-slab rebar channel

Configurator
Technical Data
Documents
Features & Applications
Related Products
CRFoS, HAC, Anchor Channel, Corner, Front of Slab, Rebar
Fasten curtain wall elements in front of slab position and building corners, e.g in thin slabs
Anchor Channel

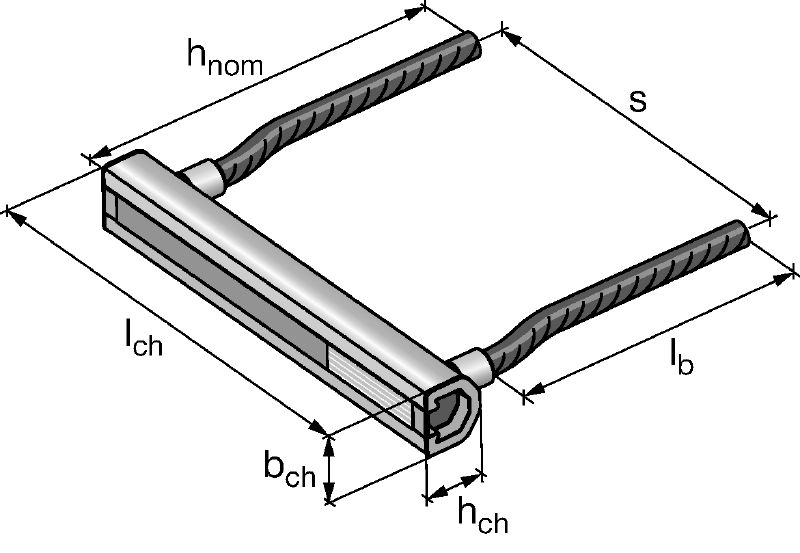

Anchor channel HAC-70 380/300 CRFoS, Cast-in, Front of slap, Corner, Rebar

Cast-in anchor channels in standard sizes and lengths for front-of-slab applications

  • Material, corrosion: Carbon Steel, Hot-Dip Galvanized
  • PROFIS Software: Yes

Choose options

Channel profile
  • HAC-50
Length
  • 11.81 in
  • 13.78 in
  • 15.75 in
  • 24.02 in
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $69.50

Technical Data

Material, corrosion
Carbon Steel, Hot-Dip Galvanized
PROFIS Software
Yes

Documents

Technical information
Documentation
pdf Anchor Channel Design Guide, English [ 9.1 MB ]
pdf HAC-V_Field-Fixes (HNA version), English [ 28.6 MB ]
pdf HAC_Technical-Guide, English [ 53.1 MB ]

Features & Applications

Features

  • Safety-tested system of standard HAC anchor channels in combination with rebar
  • Efficient and intuitive to design with PROFIS Anchor Channel software – a powerful planning tool based on the ESR-3520 compliance evaluation as well as AC232 and ACI 318 requirements
  • Two separate corner channels cater to the needs of various building angles
  • LDPE foam filler with grab tab – helps to keep concrete out of the channel and can be removed rapidly in one piece

Applications

  • Front-of-slab applications for curtain wall façades
  • Front-of-slab applications in composite slabs

For approval or certificate information, please see individual items.
