HAC Top-of-slab rebar channel

Rebar HAC-40 91/300 F EDGE LITE 4" #2217526

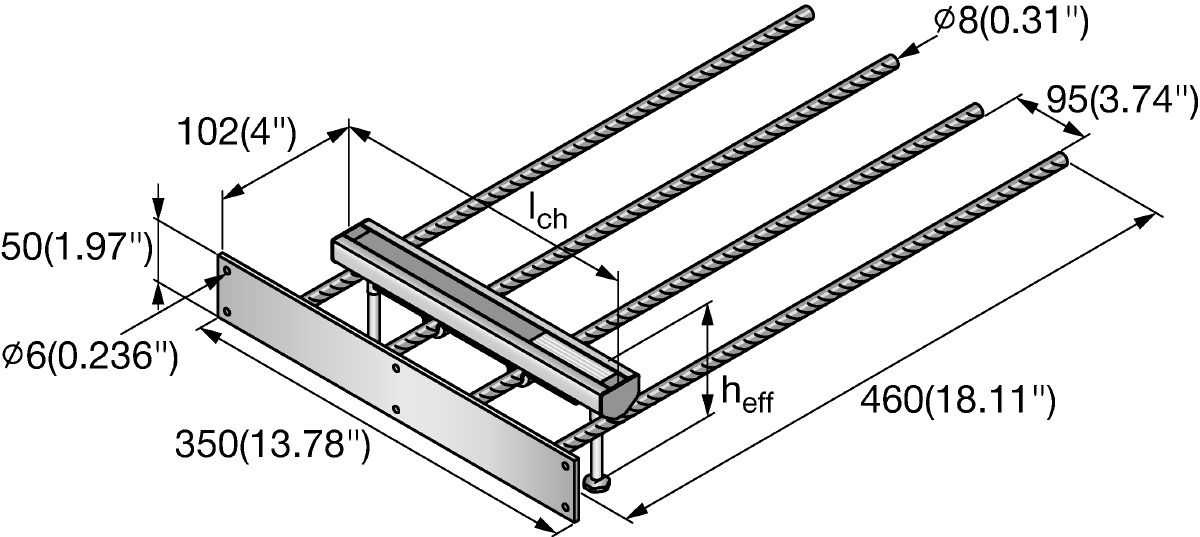

HAC-EDGE Lite w/ dimensions metric & fractional
HAC-EDGE Lite w/ dimensions metric

Cast-in anchor channels in standard sizes and lengths for top-of-slab applications

  • Material, corrosion: Carbon Steel, Hot-Dip Galvanized
  • Length: 11.81 in
  • Standard embedment depth: 3.583 in

Customers also searched for HAC EDGE, Rebar HAC edge, edge, halfen or channel.

Choose options

Material, corrosion
  • Carbon Steel, Hot-Dip Galvanized
  • Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
Length
  • 11.81 in
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$41.25
$41.25
/
1 Each

Technical Data

Material, corrosion
Carbon Steel, Hot-Dip Galvanized
Length
11.81 in
Standard embedment depth
3.583 in
Anchor distance
9.84 in
PROFIS Software
Yes

Documents

pdf Anchor Channel Design Guide, English [ 9.1 MB ]

Features & Applications

Features

  • Confinement of concrete edge allows for designs with higher load requirements
  • Suitable for small edge distances and thin concrete slabs
  • Available for various edge distances and preassembled for quicker installation
  • Compatible with PROFIS Anchor Channel software – a more efficient, powerful planning tool based on the ESR-3520 compliance evaluation as well as AC232 and ACI 318 requirements
  • Helps overcome many limits of concrete capacity or slab geometry

Applications

  • Installing curtain wall brackets in top-of-slab position with anchor channels
  • Fastening to thin concrete slabs
  • Seismic-relevant applications and 3D loads
  • Fastening of balustrade base plates on top of thin concrete members
