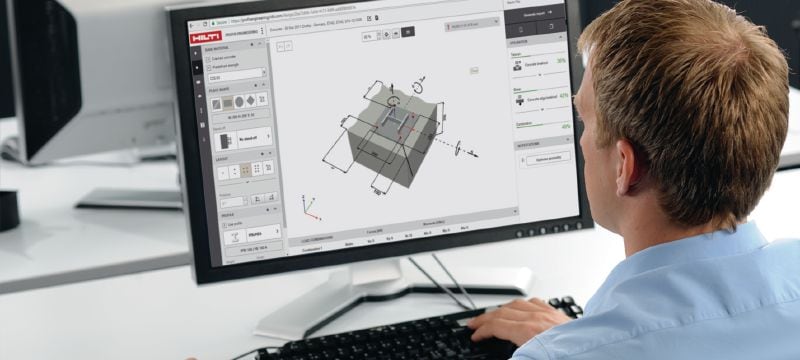

PROFIS Engineering Suite structural design software
New productItem #r6502279
Structural engineering anchor design software with codes and approvals, Component Based Finite Element Method calculations, and a variety of fastening methods
- Codes and approvals: Supports many country-specific design methods, and can generate detailed design reports to easily verify compliance.
- Training and support: No matter if you are a newcomer or an expert, we offer technical training and demonstrations (face-to-face and online) to guarantee you can exploit the full potential of the software.
- Platform compatibility: Internet browsers like Chrome, Edge, Firefox and others (cloud-based software)
Highlights
- Complete solution for designing structural connections
- Easily design, calculate and analyze multiple connection types, including anchoring to concrete, masonry, concrete-over-metal deck, concrete to concrete for post-installed rebar design and diaphragm design for metal deck attachments
- Stay up to date with the latest international codes and approvals automatically
- Save hours of research time as the software automatically updates to the latest versions of international codes and approvals, including: ACI, CSA, Eurocode, Australian Standards and many others
- Free version available for everyday structural connections
- PROFIS Engineering Standard gives you free access to all the application modules and allows you to generate detailed, step-by-step calculation and design reports, and design post-installed or cast-in-place anchors
- Import from structural analysis software and export to BIM and CAD
- With PROFIS Engineering Premium, import loads from Excel or directly from other structural analysis software programs (e.g. RISAConnection, RAM Structural System, STAAD.Pro, SAP2000, ETABS, Robot, Revit, and Dlubal RFEM and RSTAB) and export your final designs in 2D and 3D to integrate them into your standard BIM and CAD programs
- Improve productivity with advanced anchor and baseplate design features
- With PROFIS Engineering Premium, choose a design method for your baseplate: Component-based Finite Element Method (CBFEM) (including calculations for anchors, stiffeners, welds, profiles and concrete) or AISC Design guide
- Streamlined steel deck designs with new Diaphragm Design module
- Design with multiple fastener types, compare fastening methods side by side, and select the best solution for your metal decking projects with the new Diaphragm Design module - helping you optimize your fastening patterns and save design time
Technical Data
What license fits your needs?
Try our premium version free of charge for 30 days. After the trial expires, you will have the choice to buy Profis Engineering Premium or switch to the free version.
-
Standard
Standard License
Gain access to all of the Structural Connection Applications.
Free after 30-Day Trial of Premium
-
Trial
30-Day Trial
Experience all of the Premium features for 30 days.
Free for 30 days
-
Premium
Individual License
Experience all of the Premium features assigned to one user.
-
Premium
Floating License
Experience all of the premium features shared between an unlimited number of users. For each license purchased, one user at a time can access the premium features.
- Structural Connection Applications
- Base Plate Analysis
- Direct Integrations and Load Imports
- Calculating Load Combinations
- Optimization, File Sharing, and Templates
- Customized Reports
- Quick Exporting
- License Details
-

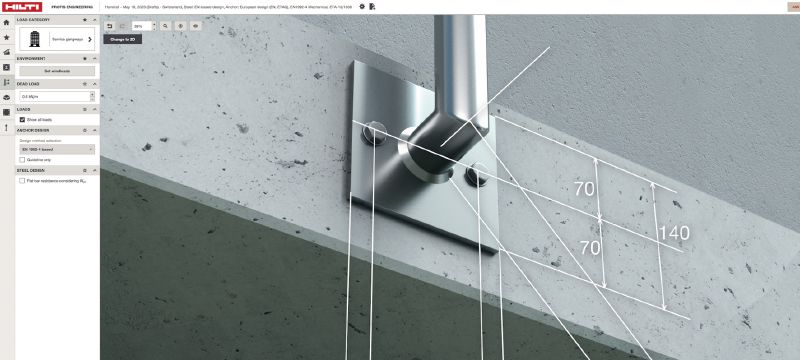

Anchoring to Concrete: Design post-installed and cast-in anchors into concrete per ACI, CSA, and other global standards
-
Anchoring to Masonry: Design post-installed anchors into hollow and grout-filled CMU, and brick per ASD, LRFD, and other global standards
-
Anchoring to Concrete over metal deck: Design post-installed anchors into the top and bottom of metal deck per ACI
-

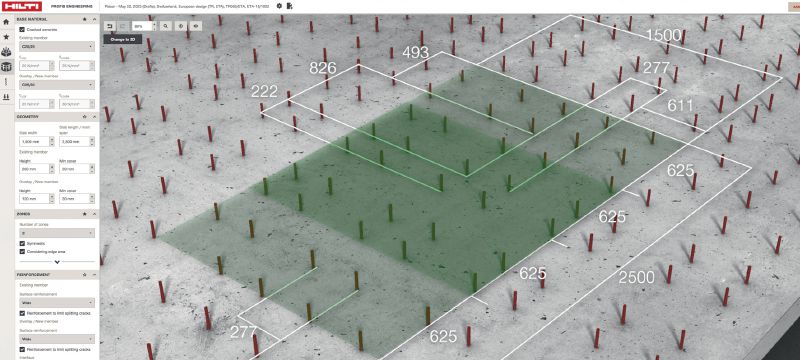

Concrete to Concrete: Design post-installed rebar into concrete per ACI, CSA, and other global standards including development length, shear friction, anchoring to concrete, and research based design calculations
-
Diaphragm Design for metal deck attachment: Design steel roof and concrete-filled deck attachment using Hilti mechanical fasteners or puddle welds per ASD, LRFD, and LSD
-
Façade: Design cast-in anchor channels, post installed anchors and cast-in embed plates per ACI, CSA, and other global standards.
-
Glass Balustrade: Design the connection between glass handrail panes and U- or V-shaped shoe profiles with Hilti's HIT-Glass System using HIT-HY 270 and Installation Accessories.
-
Base Plate Design per AISC Design Guide 1
-
Base Plate Design using Finite Element Analysis
-
Base Plate Design with customized stiffeners and welds
-
Import loads from RAM Structural System
-
Import loads from RISA Connection, STAAD.PRO, ROBOT, ETABS, SAP2000
-
Import loads from Excel
-
Run multiple load combinations simultaneously
-
Load Engine: Input service loads and select multiple load combinations
-
Cloud based project/file sharing
-
Smart Design Auto with optimized anchor design
-
Smart Design Manual with a list of commonly used anchors
-
Save favorite inputs
-
Customize design templates
-
Detailed calculation reports (options for short vs long report)
-
Customized Report with Company Logo
-
Export to BIM/ CAD
-
Export to Revit Plugin
-
One user per license
-
Unlimited users per license
