X-FCM-R HL High load grating fastener disc (stainless steel)

Grating disc X-FCM-R HL 23/28 #2349142

Configurator
Technical Data
Documents
Features & Applications
Related Products

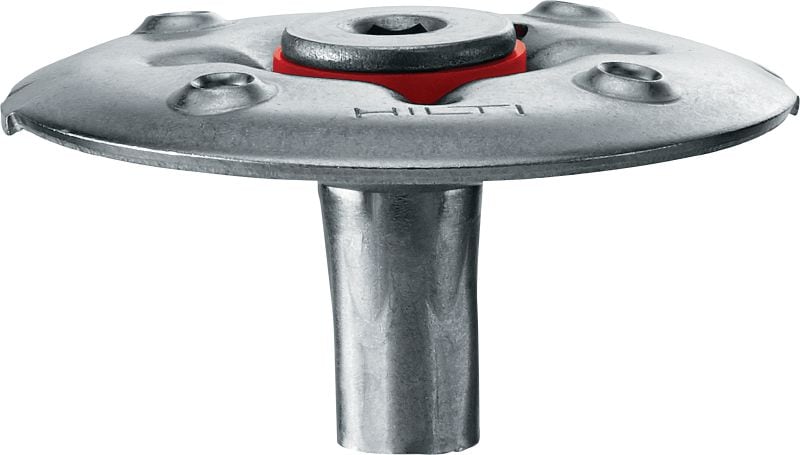

High load grating disc (stainless steel)

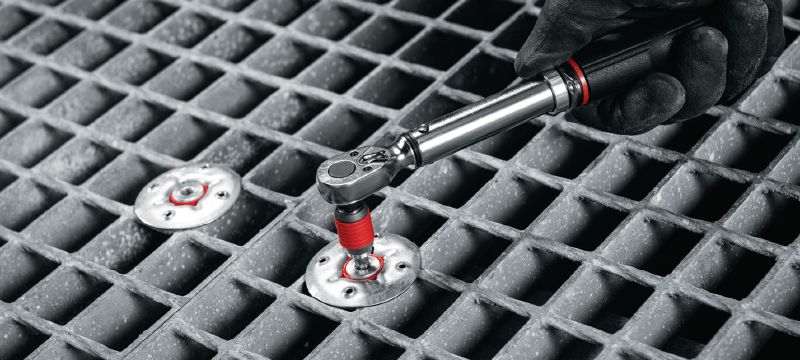

X-FCM-R HL torquing

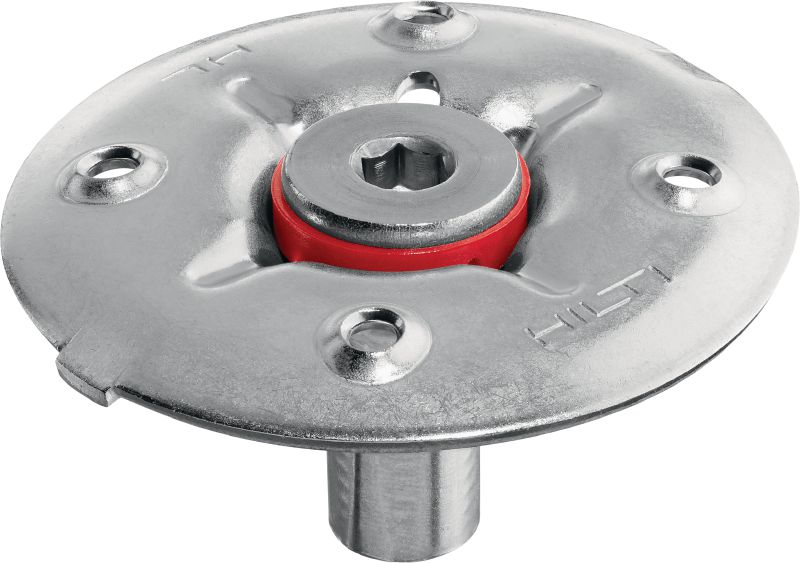

X-FCM-R HL

Stainless steel high load grating fastener disc for fixing floor grates with threaded studs in highly corrosive environments

  • Application: Grating
  • Approvals: ABS, BV, DNV GL, LR
  • For use with (tools): DX 460, DX 5, DX 6
ultimate

Choose options

Grating height
  • 29/32 - 1-3/32 in
Grating width range
  • 18 - 44 mm
Corrosion protection
  • Stainless steel A4(316) or equivalent
Pack size
  • 100 pc
 Product options
Quantity
Box
Total Pieces
100
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$5,232.00
$5,232.00 / 1 Box

Technical Data

Application
Grating
Approvals
ABS, BV, DNV GL, LR
For use with (tools)
DX 460, DX 5, DX 6
Corrosion protection
Stainless steel A4(316) or equivalent
Environmental Conditions
Dry indoor, Indoor environments with temporary condensation, Outdoor temporary applications, Outdoor, rural or urban environment with low pollution, Outdoor with moderate concentration of pollution, Coastal areas, Outdoor, areas with heavy industrial pollution
Minimum thickness of base material (steel)
5/16 in
Product Class
Ultimate

Documents

Approval document
Brochure
Documentation
pdf LR Type Approval LR2435310TA-02 for X-BT-GR, X-BT-MR and X-BT-ER threaded fasteners in marine, offshore and industrial application, English [ 868.3 KB ]
pdf RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English [ 108.1 KB ]
pdf ABS Type Approval 22-2285526-PDA for X-FCM-R, X-FCM-F grating and X-FCP checker plate fasteners in marine, off-shore and industrial environments, English [ 110.3 KB ]
pdf DNV Type Approval TAS00001UJ for X-FCM-R, X-FCM-F and X-FCS-R grating fasteners in marine and industrial environments, English [ 209.6 KB ]
pdf BV Type Approval 71291-A0 for X-FCM-R, X-FCM-F and X-FCS-R grating fasteners in marine environments, English [ 577.8 KB ]

Features & Applications

Features

  • Labor-saving grating installation – fewer steps than traditional grating clamps and welding
  • Approvals and certificates – technical data, test reports and approvals available
  • No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
  • Durable hold – locking tabs on the disc help to prevent loosening or spinning
  • Reduce trip hazards – non-slip surface and minimized protrusion on walkway gratings when correctly installed

Applications

  • Fastening grating to steel in highly corrosive C5 environments, such as ships or offshore oil and gas installations
  • For gratings exposed to high tensile loads such as wave zone gratings
  • Fastening steel grating
  • Fastening fiber-reinforced plastic (FRP) grating
  • Grating fastener disc for use with M8 threaded studs
