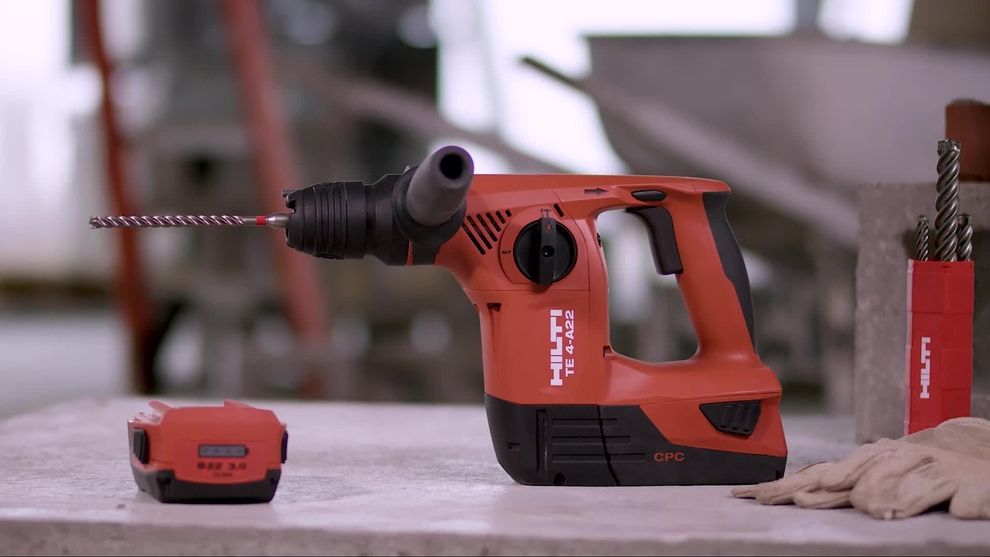

TE 4-A22 Cordless rotary hammer
New productItem #r6637213
Compact D-grip 22V cordless rotary hammer with superior handling in serial applications
- Weight according EPTA-Procedure 01/2003 without battery: 7.3 lb.
- Optimum Hammer drilling range: 3/16 - 15/32 in
- Single impact energy: 1.5 ft-lbs
Customers also searched for sds hammer drill, sds rotary hammer, rotary hammer drill, concrete hammer drill or cordless hammer drill
- First-class performance-to-weight ratio and very compact design
- High battery capacity – drills more holes per battery charge than other cordless rotary hammers in this class
- Specially designed hammering mechanism for superior drilling performance up to 1/2"
- Virtually dustless drilling when used with the OSHA 1926.1153 Table 1 compliant DRS-4-A T1 dust removal system
- Highest work per charge with 22V batteries
- Repetitive drilling in all directions in concrete and masonry; recommended for diameters up to 1/2"
- Occasional drilling in wood, steel and plastics using the special chuck adapter
- Screwdriving using the special bit holder with SDS plus connection end
- Drilling in concrete in clean areas using the integrated dust removal system (DRS-4-A)
- Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
We manage your tools so you can manage your business.
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- High-performing tools and latest technology help to increase jobsite productivity.
- Temporary tools for peak times and special applications help to reduce investments.
- Theft coverage helps to reduce financial risk and unexpected expenses.
- Individual labels and online visibility provide tool fleet transparency.
Technical Data
Documents
-
- Operating Instruction TE 4-A (02), English, Spanish, French, Portuguese, [ 2.4 MB ]
- Operating Instruction C 4/36 -90/-350/-DC (01), English, Spanish, French, Portuguese, [ 2.3 MB ]
- Operating Instruction Li-Ion, Italian, Russian, Hebrew, Serbian, German, Swedish, Turkish, Ukrainian, Arabic, French, Portuguese, Finnish, Spanish, Norwegian, Polish, Lithuanian, Latvian, Romanian, Korean, Bulgarian, Slovakian, Japanese, Estonian, Croatian, Kazakh, English, Chinese, Danish, Czech, Hungarian, Dutch, Greek, Slovene, [ 1.5 MB ]
Application videos
-
Cordless 22V Rotary Hammer TE 4-A22
Instructions for use videos
-
DRS Onboard How-To (16:9, EN)
