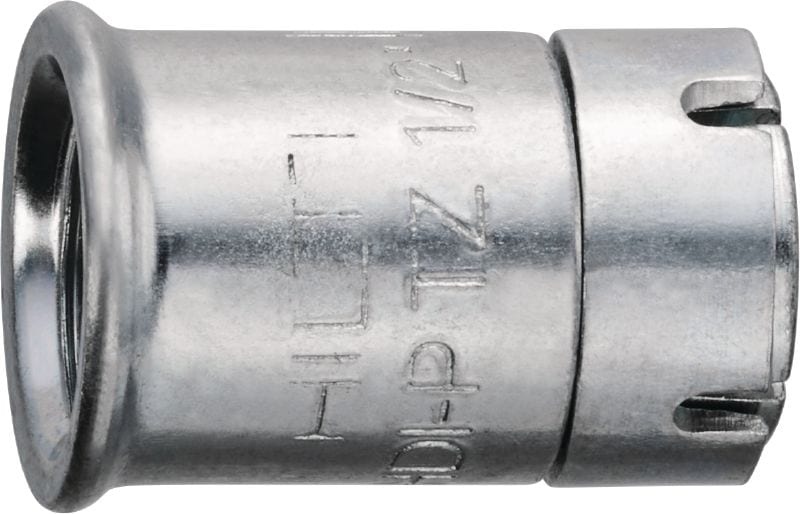

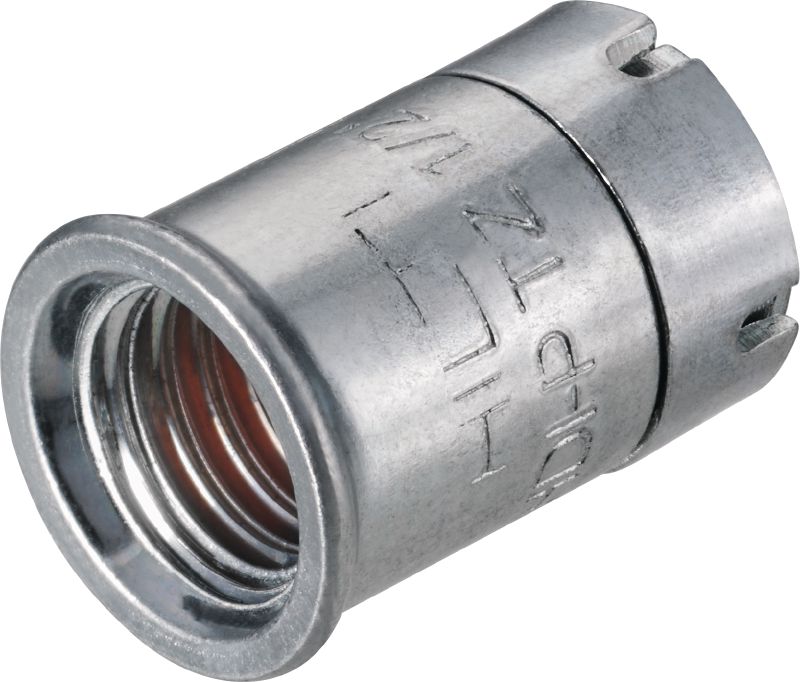

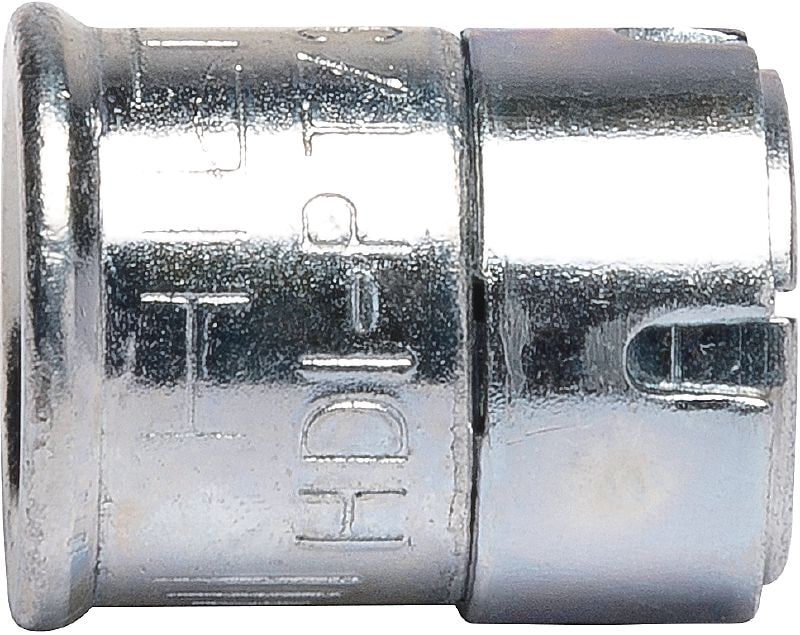

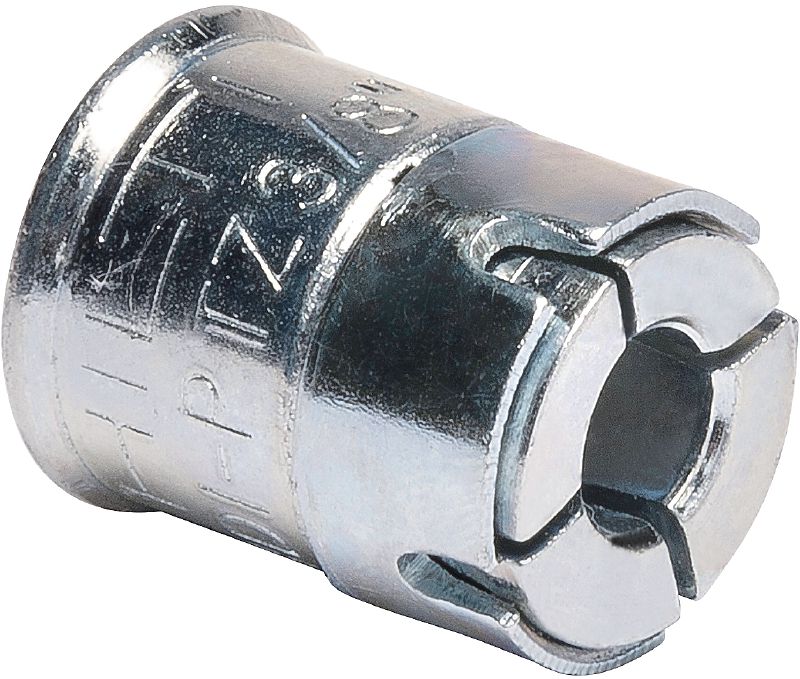

HDI-P TZ Drop-in anchor
New productItem #r8953098
Ultimate-performance short drop in anchor for shallow embedments in cracked/uncracked concrete and seismic applications
- Environmental conditions: Dry indoor
- Approvals / Test reports: FM (Factory Mutual), Seismic, UL (Underwriter Laboratories)
- Material, corrosion: Carbon steel, zinc-plated
Share
Features & Applications
Features & Applications
Features
- Higher productivity – shallow drilling and faster installations when used with the HDI-P TZ 2-in-1 setting tool and a hammer drill
- Increased performance – short drop-in anchor with optimized length for reliable fastenings in hollowcore concrete planks and post-tensioned cable concrete slabs
- Easier and more accurate - lip provides flush installation, consistent anchor depth, and easy anchor rod alignment
- Virtually dust-free – pair with Hilti Dust Removal System (DRS) for compliance with Table 1 of OSHA 1926.1153 regulations for silica dust exposure
- Easier to specify and design – pair with PROFIS Engineering software to simplify the design of concrete connections and reduce material costs
Applications
- Post-installed fastening point for suspended pipes, electrical conduits, cable trays, HVAC ducts and equipment, seismic bracing, and other overhead elements
- Suitable in cracked, uncracked, and hollowcore concrete, including seismic areas
For approval or certificate information, please see individual items.
