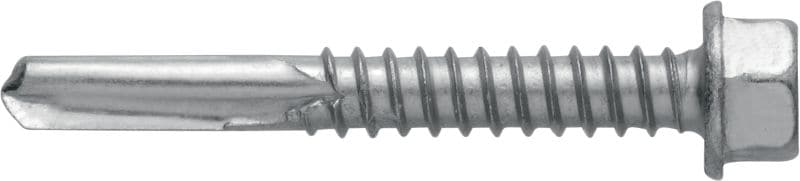

S-MD 05Z Self-drilling metal screws
Self-drilling screw (zinc-plated carbon steel) without washer for thick metal-to-metal fastenings (up to 15 mm)
More technical data
- Screw drive/recess type: Hexagon 8
- Base materials: Carbon steel
- Environmental Conditions: Dry indoor
Features & Applications
Self-drilling screw for fast assembly in one step
Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
For reliable fastenings with defined load values
Attractive final appearance – screw head can be colored to match the façade
Galvanized carbon steel
Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
Galvanized carbon steel for fastening in dry, indoor environments
Thick metal-to-metal connections (up to 15 mm)
